ATEN CL1000M consola KVM LCD de 17 pulgadas de raíl único US - montaje en rack 1U - PS/2 y USB - distribución US

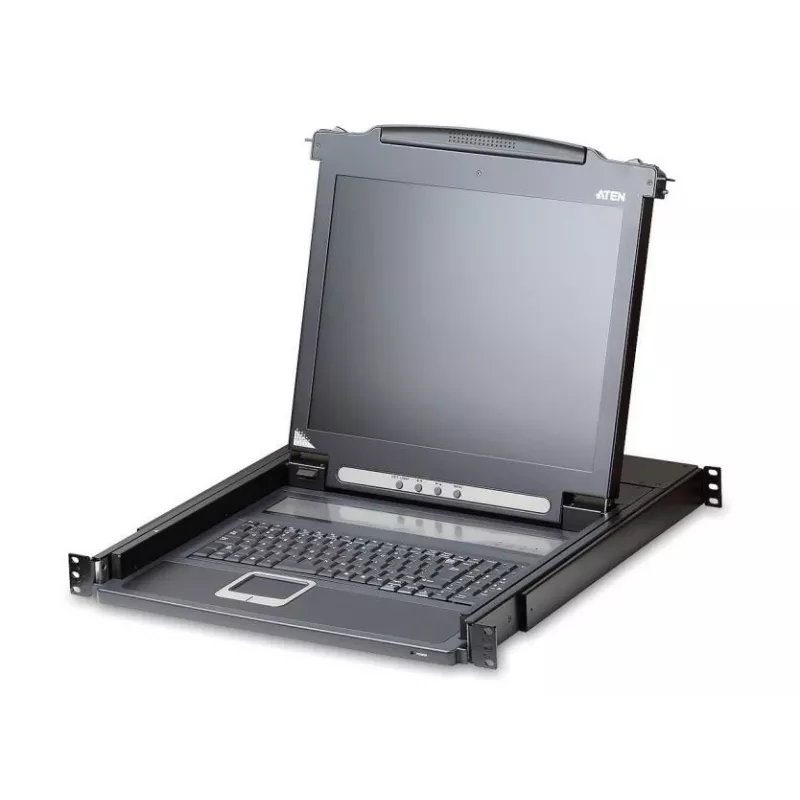

The ATEN CL1000M US is a high-quality Single Rail LCD KVM Console featuring a 17-inch TFT-LCD display, integrated keyboard with US layout, and touchpad. Designed for 1U rackmount installations, this console provides direct control over servers and KVM switches via PS/2 and USB interfaces. With a maximum resolution of 1280 x 1024, it delivers clear and reliable video output for efficient server management.

Advantages

Space-saving 1U design with single rail sliding mechanism for easy rack access. Supports both PS/2 and USB connections for broad compatibility with legacy and modern servers. The 17-inch LCD offers excellent image quality with 800:1 contrast ratio and 250 cd/m² brightness, ensuring readability in various lighting conditions. Hot-pluggable design allows for quick server swaps without powering down.

Suitable for

• Data centers requiring compact KVM console solutions
• Server rooms with mixed PS/2 and USB environments
• IT professionals needing reliable remote or local server management

Key specifications

• Display: 17" TFT-LCD, 1280 x 1024 max resolution, 5:4 aspect ratio
• Contrast Ratio: 800:1
• Brightness: 250 cd/m²
• Viewing Angles: 160° horizontal / 160° vertical
• KVM Port Interface: PS/2 and USB
• Video Input: VGA
• Rack Height: 1U (1HE)
• Keyboard Layout: US
• Mouse: Built-in Touchpad
• Power Consumption: 25W max
• Input Voltage: 100-240V AC via power adapter
• Operating Temperature: 0°C to 50°C
• Housing Material: Metal
• Mounting Depth: 68 - 105 cm
• Hot-Pluggable: Yes
• OSD Support: Yes

Recommendations

For optimal performance, pair the CL1000M US with ATEN KVM switches and cables. Ensure proper rack depth compatibility before installation.
