ATEN CL1000N Conmutador KVM Montaje en rack Negro

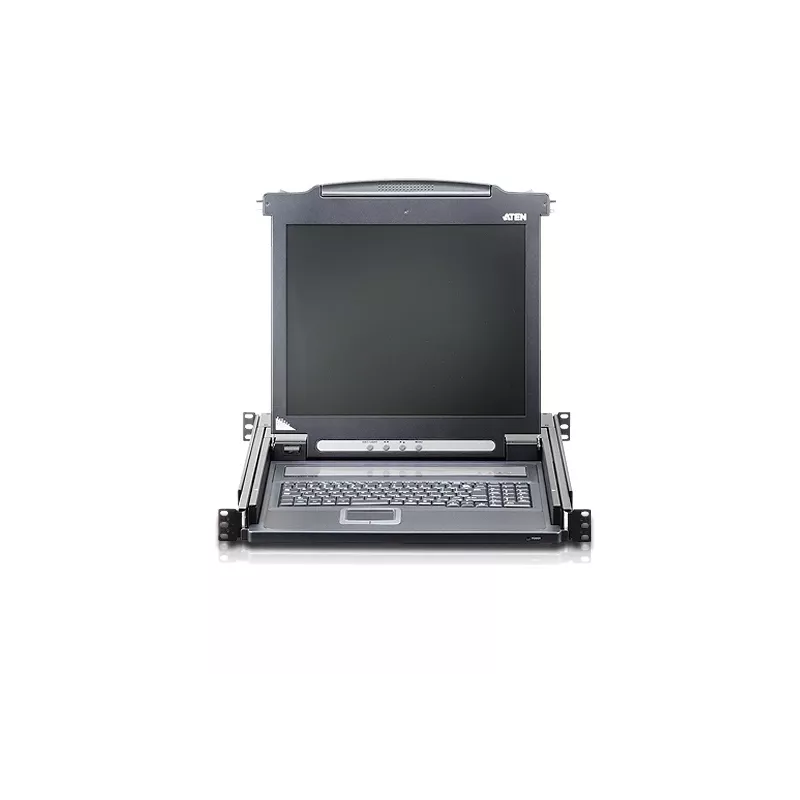

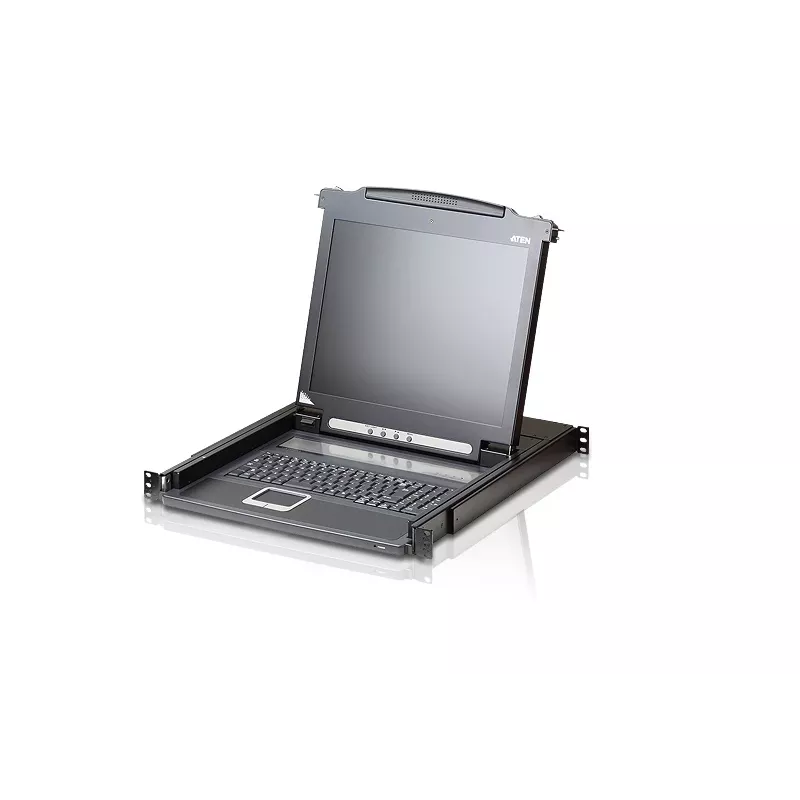

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19” LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Features:

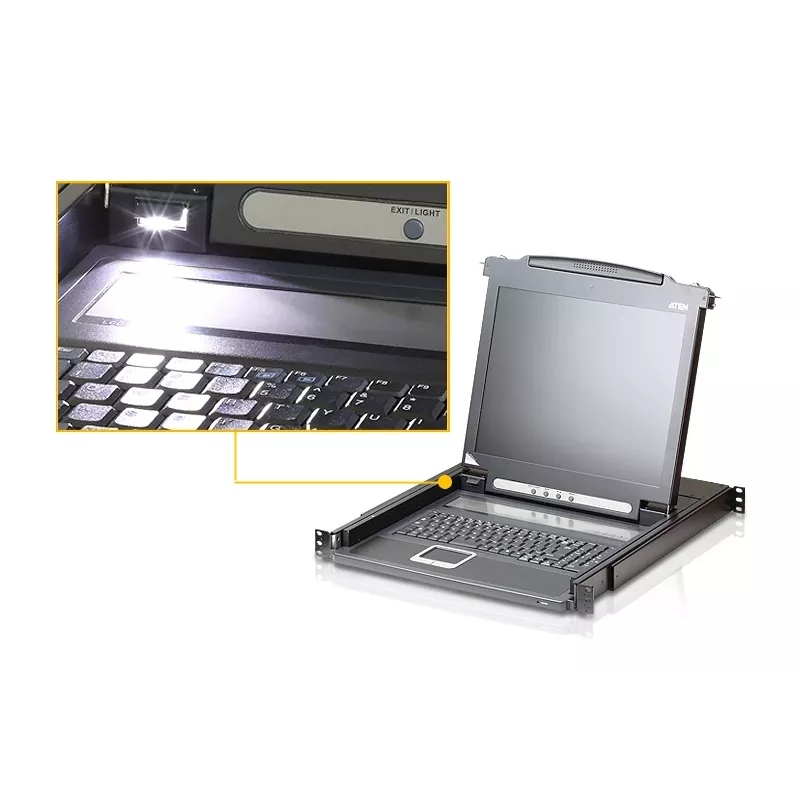

-Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
-Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack*
-LCD module rotates up to 115 degrees for a more comfortable viewing angle
-Slideaway™ housing is less than 1U – with top and bottom clearance for smooth operation in a 1U high system rack
-Compatible with most PS/2 KVM Switches
-Internal power supply
-Adjustable depth to fit within a rack
-High video resolution:
• Supports input video resolutions up to 1920 x 1200 @ 60 Hz; and up to 1280 x 1024 @ 75 Hz with the built-in LCD screen
• Supports DDC, DDC2, DDC2B
• DDC emulation of the LCD monitor–Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
-Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek (CL1000N only), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
-Improved design – optional single person installation kit

Note: Custom KVM cables or converters are available for USB support
* Compatible rack mounting kit:
CL1000M: 2X-010G, 2X-011G, 2X-012G
CL1000N: 2X-023G, 2X-024G, 2X-025G

Package Contents
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Power Cord
1x User Instructions

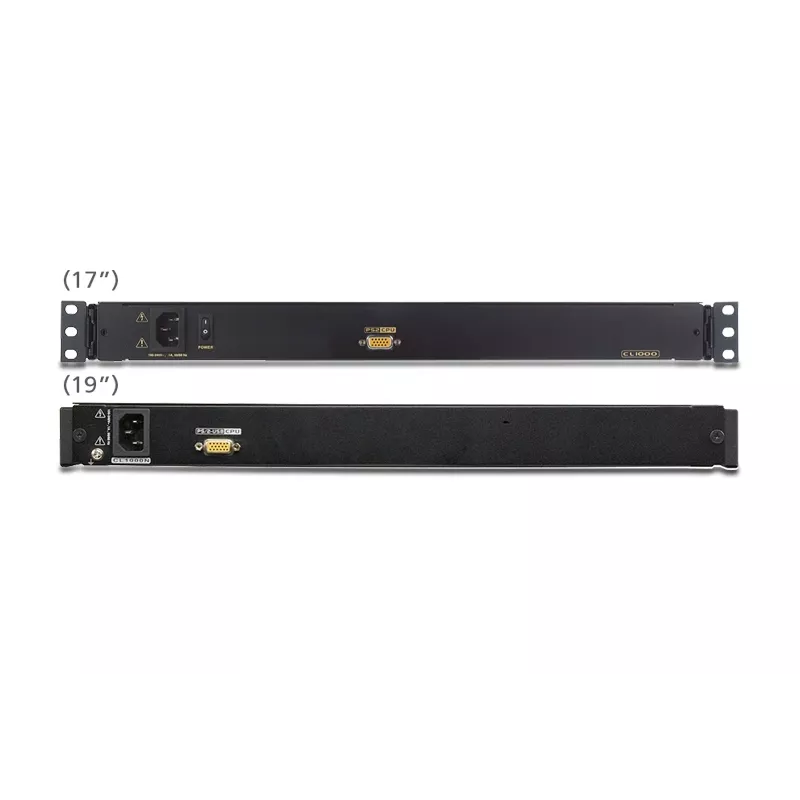

ATEN CL1000N. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Display: LCD, Display diagonal: 48.3 cm (19"). Power source: AC, Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz

How to use

Install the CL1000N into a 1U rack slot using the supplied rack mount kit and adjust the unit depth to suit your rack. Connect the console to an existing PS/2 KVM switch using the provided custom KVM cable (VGA, USB) or appropriate adapter for your switch. Connect the power cord to an AC source within the supported voltage range. Slide the console out when you need direct access; the LCD module can be rotated up to 115 degrees to obtain a comfortable viewing angle. Use the built-in keyboard and touchpad to control servers routed through your KVM switch.

Recommendations

For USB-only environments, acquire the appropriate KVM cable or converter to ensure full compatibility. Ensure the rack has sufficient top and bottom clearance for smooth Slideaway™ operation and verify keyboard layout selection matches your preferred language in multinational deployments.
