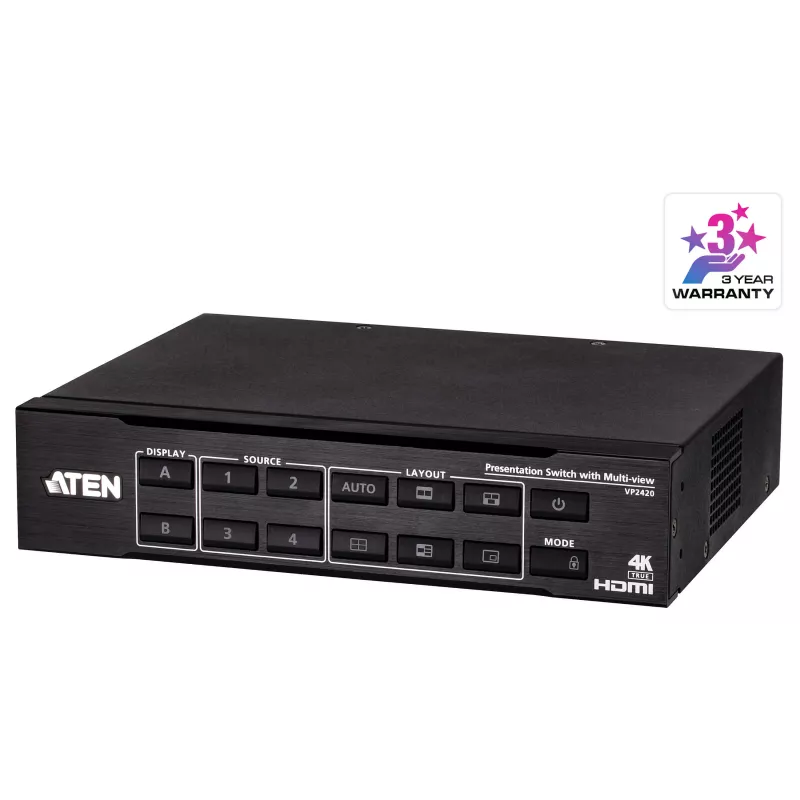

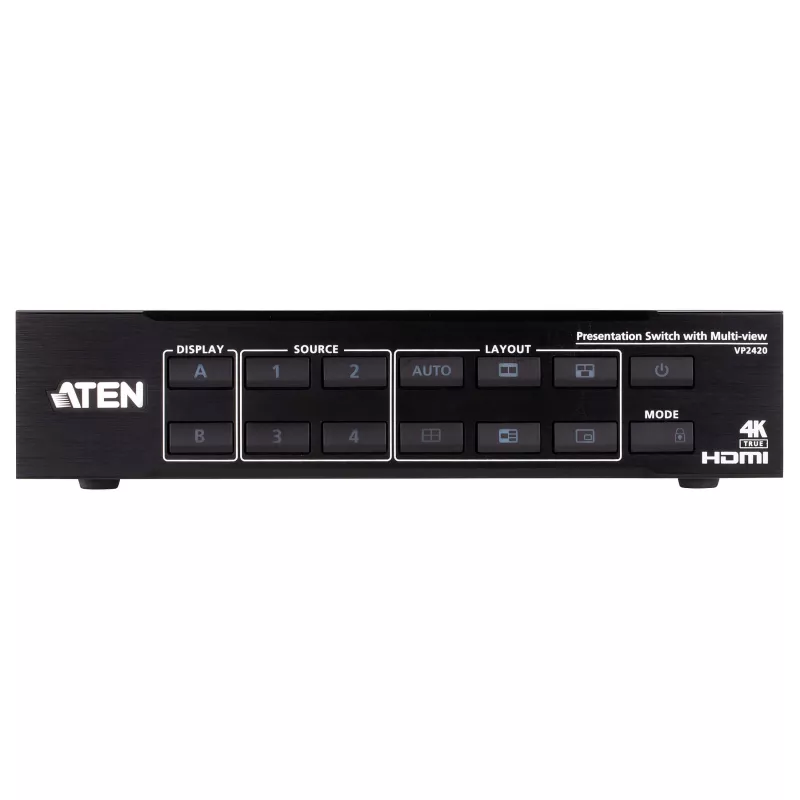

ATEN VP2420 conmutador de presentación 4x2 True 4K con Multi View

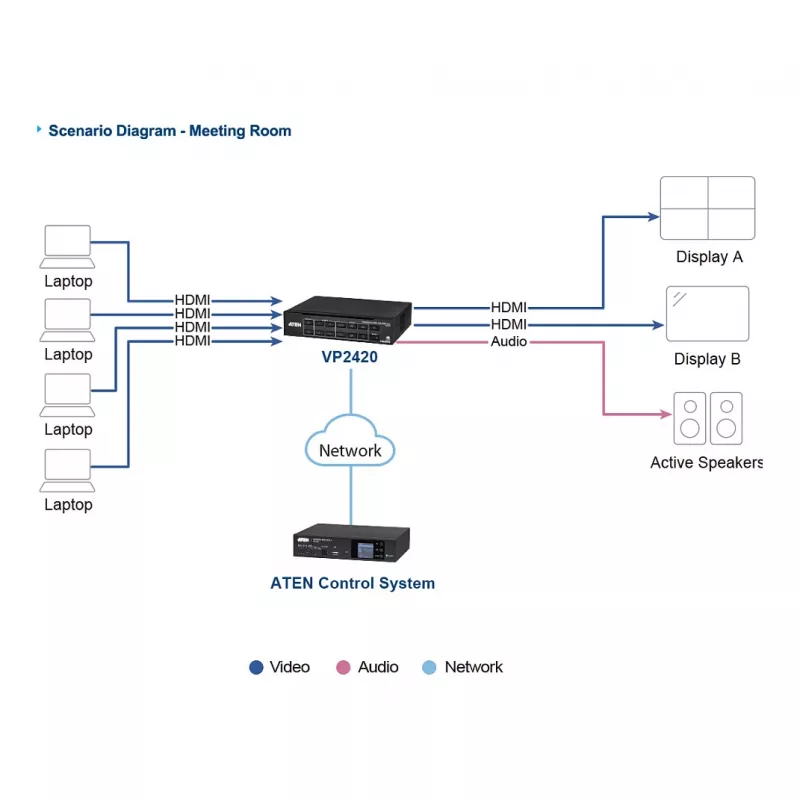

The ATEN VP2420 is a high-performance 4x2 True 4K Presentation Matrix Switch with Multi View, designed for professional AV environments. It allows seamless switching and multi-view display of up to four HDMI sources on two outputs, supporting resolutions up to 4096x2160 @60Hz with 4:4:4 chroma sampling. Ideal for conference rooms, classrooms, and control centers, this switch offers flexible control options and advanced EDID management.

Advantages

Experience true 4K video quality with HDCP 2.2 compliance and a built-in scaler on each output. The multi-view modes (Dual View, PiP, PbP) enhance productivity by displaying multiple sources simultaneously. Seamless switching ensures smooth transitions without signal loss. Rack-mountable 1U metal housing provides durability and easy integration.

Suitable for

• Conference rooms requiring multi-source presentation
• Educational institutions for interactive learning
• Control centers monitoring multiple video feeds
• Digital signage applications

Key specifications

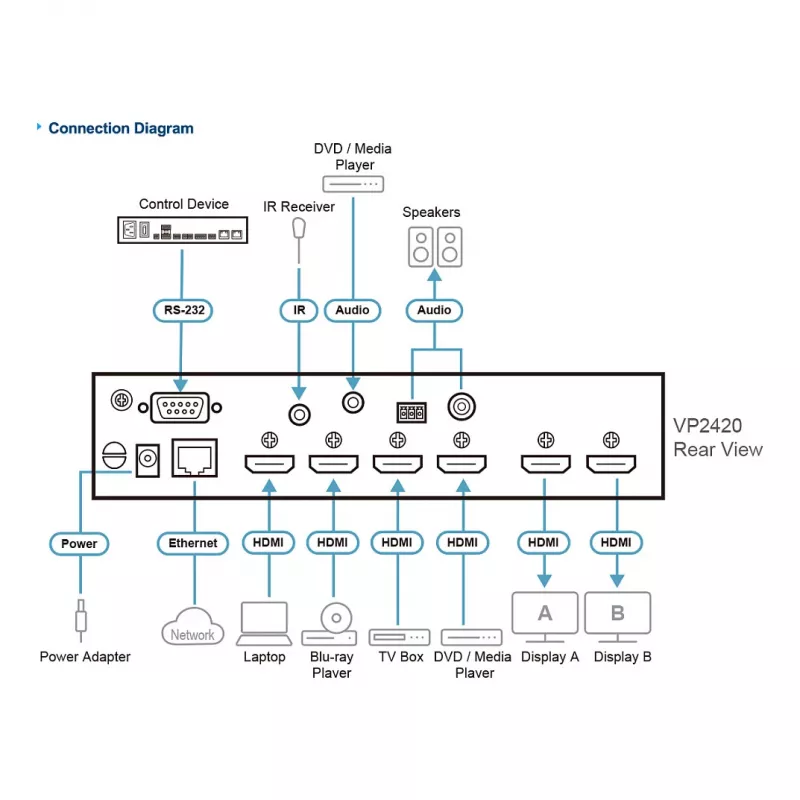

• Matrix Configuration: 4 Inputs, 2 Outputs

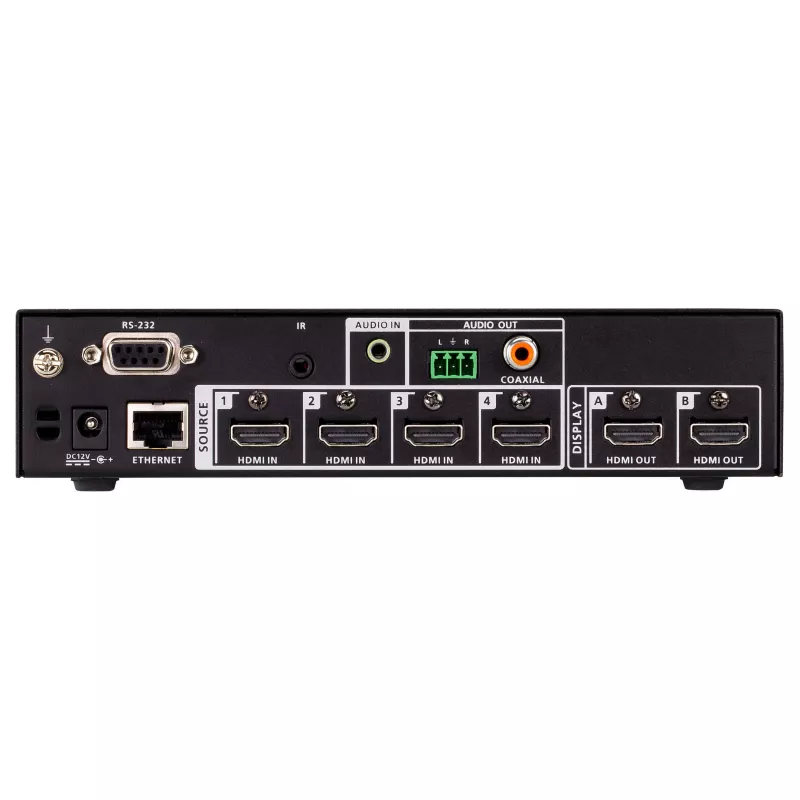

• Video Input Ports: 4 x HDMI Type A Female
• Video Output Ports: 2 x HDMI Type A Female
• Max Video Resolution: 4096 x 2160 @ 60Hz (4:4:4)
• HDCP Compliance: HDCP 2.2
• Multi-View Modes: Dual View, Picture-in-Picture (PiP), Picture-by-Picture (PbP)
• Video Switching: Seamless Switching
• Built-in Scaler: Yes, 4K Scaler on each output
• Audio Support: HDMI Embedded, Analog Stereo (Input/Output)
• Control Interfaces: Front Panel, IR Remote, RS-232, Web GUI, Telnet
• EDID Management: ATEN EDID Technology
• Video Bandwidth: 600 MHz
• Color Depth Support: 8-bit, 10-bit, 12-bit
• Rack Mountable: Yes (1U)
• Power Consumption: 14.2W (Max)
• Housing Material: Metal
• Firmware Upgrade Port: 1 x USB Type B Female
• Ethernet Port: 1 x RJ-45 Female

Recommendations

For optimal performance, use high-speed HDMI cables with Ethernet. The VP2420 is compatible with ATEN's control systems and can be integrated into larger AV setups. Ensure proper ventilation when rack-mounting.
