Conmutador matriz AV Vivolink VLHDMIMAT8X8 3840x2160 18 Gbit/s

The Vivolink VLHDMIMAT8X8 is a 2x8 HDMI matrix switcher designed to route two HDMI sources to up to eight displays. It supports resolutions up to 4K@60Hz with 4:4:4 chroma, HDR10 and Dolby Vision, offers 18 Gbit/s bandwidth and HDCP 2.2 compatibility, and comes in a 1U metal housing suitable for rack mounting. The unit includes 4K-to-1080p downscaling on all outputs and provides both Toslink and analog L+R audio de-embedding for flexible audio extraction.

Advantages

The VLHDMIMAT8X8 delivers high-quality video distribution with support for current HDR formats and full 4:4:4 chroma at 4K@60Hz, while 18 Gbit/s bandwidth and HDCP 2.2 ensure compatibility with modern sources and displays. Built-in signal equalization improves transmission stability over cables, and comprehensive EDID management plus CEC support simplify interoperability between connected devices. The metal 1U chassis and universal AC input (100–240 V) make it suitable for professional installations.

Suitable for

• Conference rooms and meeting spaces requiring multiple displays
• Control and command centers for monitoring multiple inputs
• Lecture halls and classrooms in educational facilities
• Retail environments and digital signage deployments
• Home theater setups with several HDMI sources and displays
• Event venues and exhibition halls
• Corporate environments for team collaboration and display sharing

Key specifications

• Model: Vivolink VLHDMIMAT8X8
• Type: 2x8 HDMI matrix switcher
• Maximum resolution: 3840 x 2160 (4K) @ 60Hz, 4:4:4
• Bandwidth: 18 Gbit/s
• HDCP: 2.2 compliant
• HDR: HDR10 and Dolby Vision support
• Audio de-embedding: Toslink (digital) and L+R (analog)
• Downscaling: 4K-to-1080p on all outputs
• Chassis: 1U metal housing, rack-mountable
• Power: AC 100–240 V, 24 W power consumption
• Connectivity: USB Type-A
• MPN / EAN: VLHDMIMAT8X8 / 5704174885733

How to use

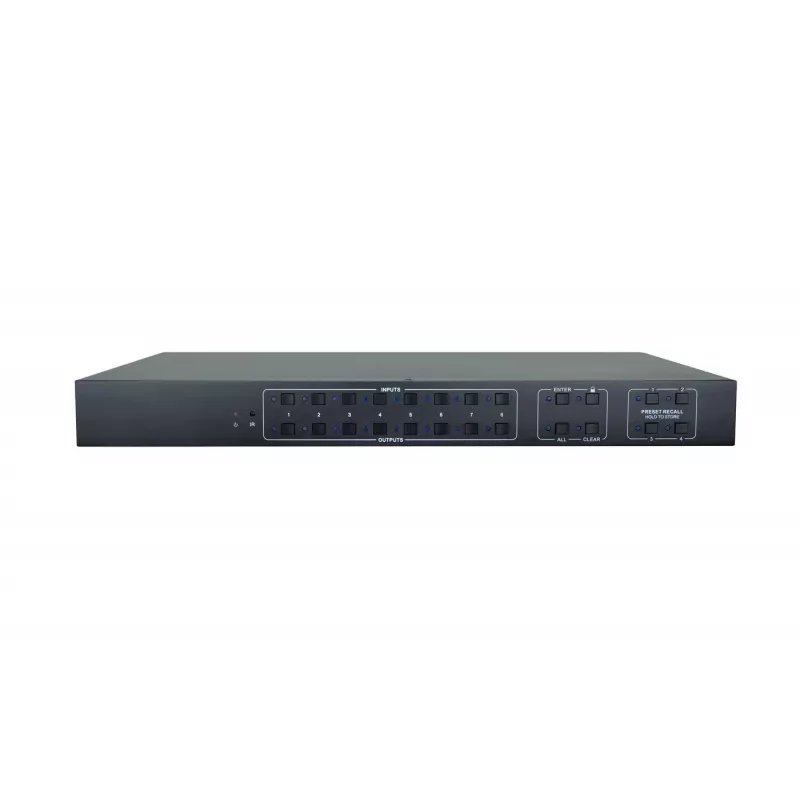

Install the unit in a 1U rack space or place it on a stable surface and connect AC power (100–240 V). Connect up to two HDMI source devices to the input ports and connect HDMI cables from the eight outputs to displays or projectors. Configure EDID settings as required for source-display compatibility and, if needed, enable CEC for basic control pass-through. Use the front-panel controls, remote control or connected control system via USB to route sources to desired outputs and to set downscaling or audio de-embedding options.

Recommendations

For reliable 4K@60Hz performance, use high-quality HDMI cables rated for 18 Gbit/s and keep cable runs within recommended lengths. When mixing 4K and 1080p displays, set output downscaling per display as required and verify EDID settings to prevent resolution or HDCP conflicts.
