ATEN W/AUDIO & SMART CARD SUPPORT

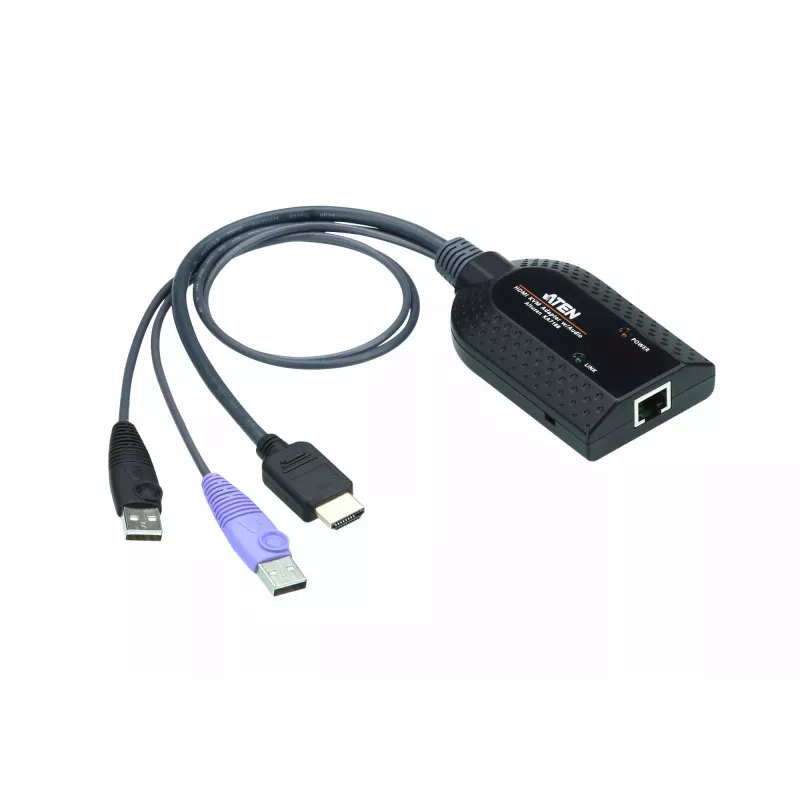

The ATEN KA7188 KVM Adapter Cable connects a KVM switch to a target computer using HDMI for video and two USB plugs for keyboard/mouse and additional functions such as Virtual Media or Smart Card/CAC Reader support. The cable also supports Audio De-Embedder to extract audio from an HDMI signal and features a compact, lightweight design with signal compensation and delay skew technologies to maintain high video quality. Both USB connectors must be plugged into the target computer to provide sufficient power.

Advantages

The KA7188 offers HDMI video output plus two USB connections for keyboard and mouse, enabling keyboard/mouse, Virtual Media, and Smart Card/CAC Reader functionality through a single adapter cable. It supports audio extraction from HDMI and incorporates signal compensation and delay skew technologies for improved video performance. Its small size and low weight (0.11 kg) make it convenient to handle and install.

Suitable for

• Connecting a KVM switch to a computer with HDMI video output
• Multi-computer setups sharing one monitor and input devices
• Use cases requiring Virtual Media or Smart Card/CAC Reader access
• Environments needing HDMI audio extraction

Key specifications

• Model: ATEN KA7188 (MPN: KA7188-AX)
• Video interface: HDMI output
• USB connectors: 2 × USB (keyboard and mouse)
• Console port: RJ-45
• Product colour: Black
• Weight: 0.11 kg
• EAN: 4719264647260

How to use

Plug the HDMI connector into the target computer's HDMI output and insert both USB plugs into available USB ports on the target computer to enable keyboard, mouse and additional functions. Connect the other end to the KVM switch console port (RJ-45) or the corresponding KVM adapter connection as specified by your KVM switch. Ensure both USB connectors remain inserted during use so the adapter receives adequate power.

Recommendations

Use compatible ATEN KVM switches as listed on the KA7188 compatibility web page and ensure the target computer's USB ports provide sufficient power. Refer to your KVM switch documentation for details on Virtual Media or Smart Card/CAC Reader configuration.
