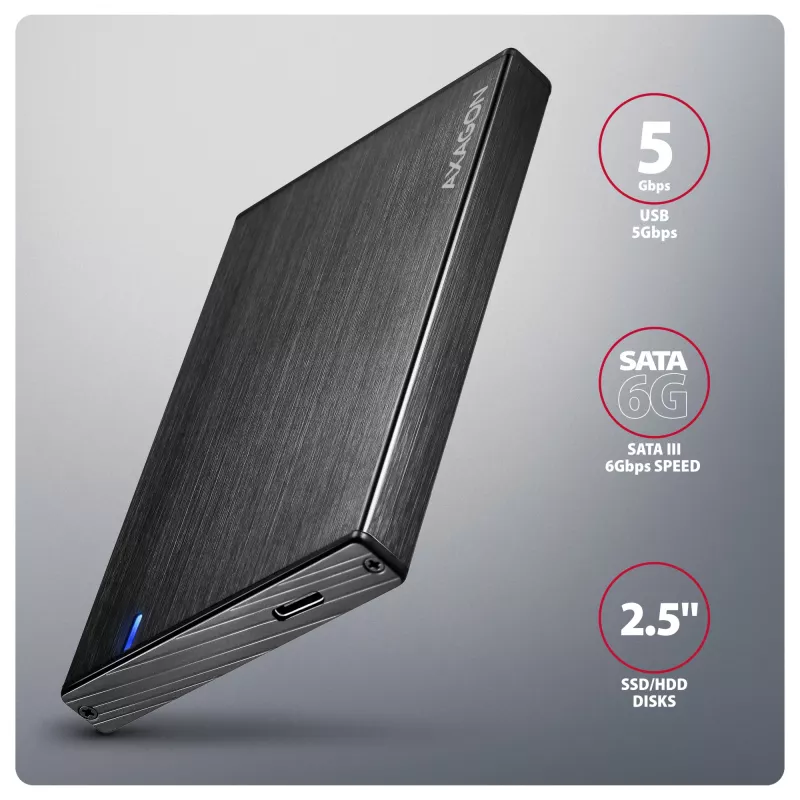

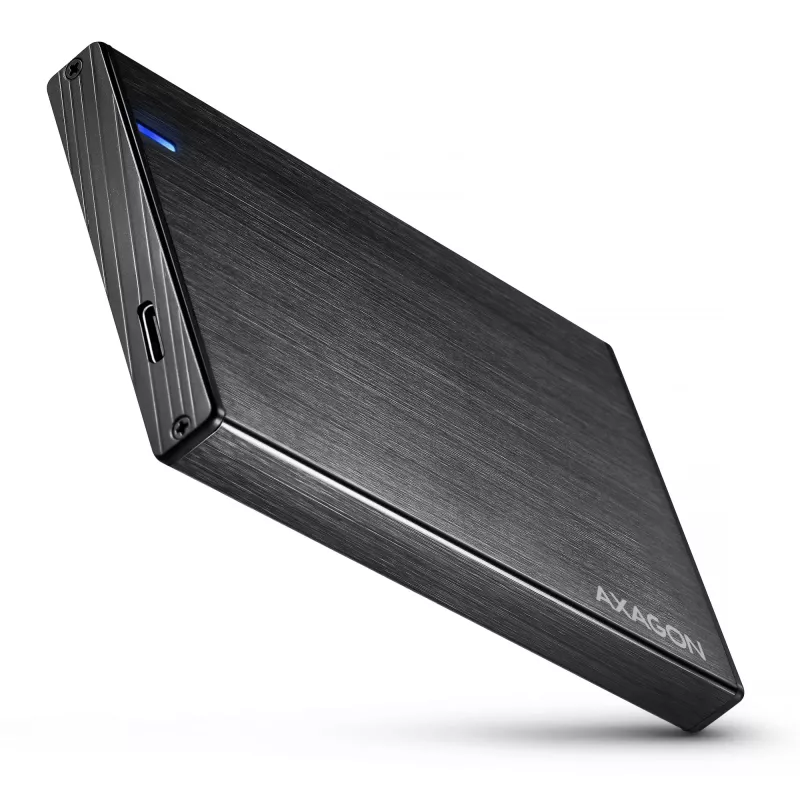

Axagon EE25-XA6C Caja externa compacta de aluminio USB-C 5 Gbit/s – SATA 6G para SSD/HDD de 2,5"

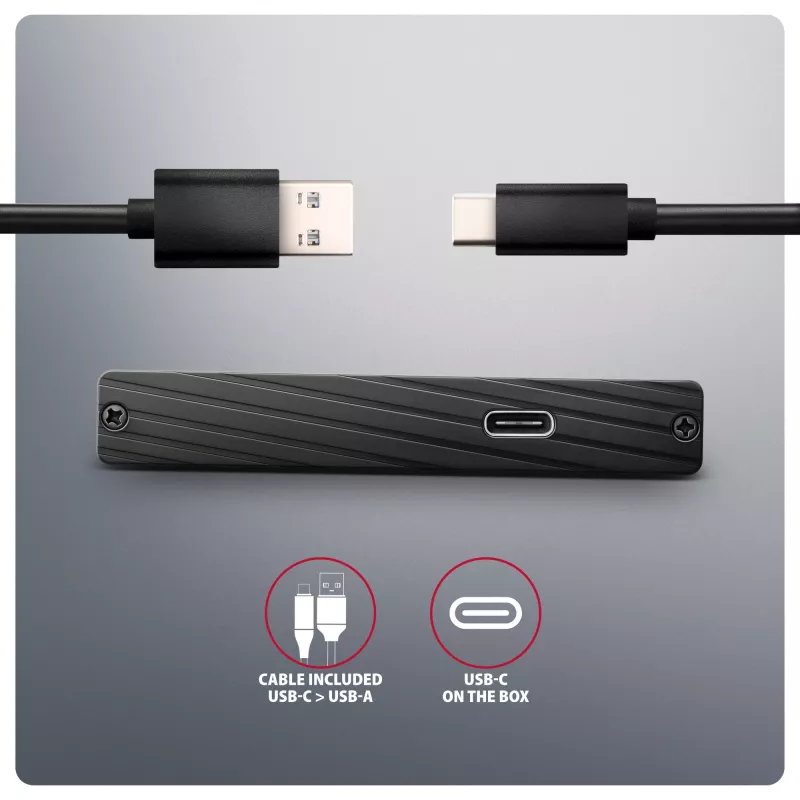

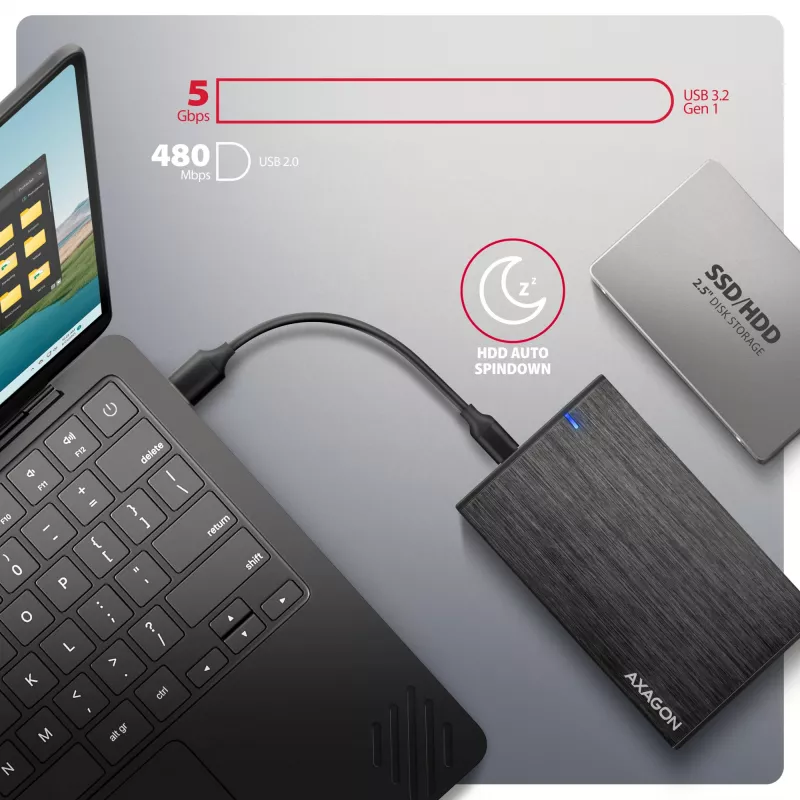

Compact aluminum external AXAGON EE25-XA6C ALINE box with USB-C 5Gbps interface for 2.5” SATA HDD or SSD. The double-sided USB-C connector on the box together with the supplied USB-C -> USB-A cable enables a reliable connection to a computer.

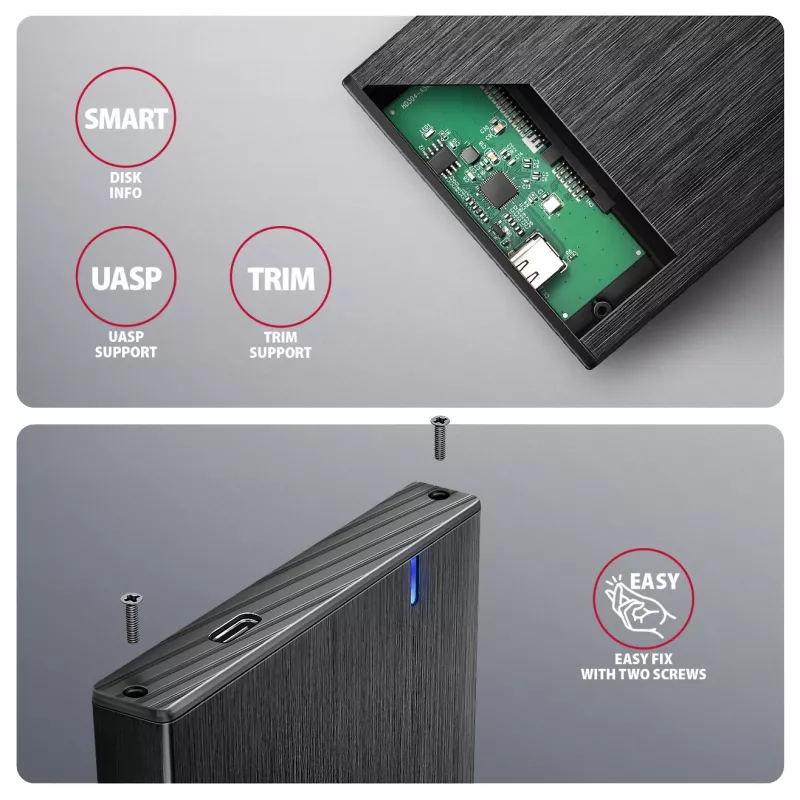

SATA 6G interface with UASP support allows you to enjoy the speed of modern SSDs. The TRIM feature support limits the gradual degradation of SSD performance over time. Reading S.M.A.R.T. information monitoring the condition of the external drive. Hibernation support for connected disk and box.

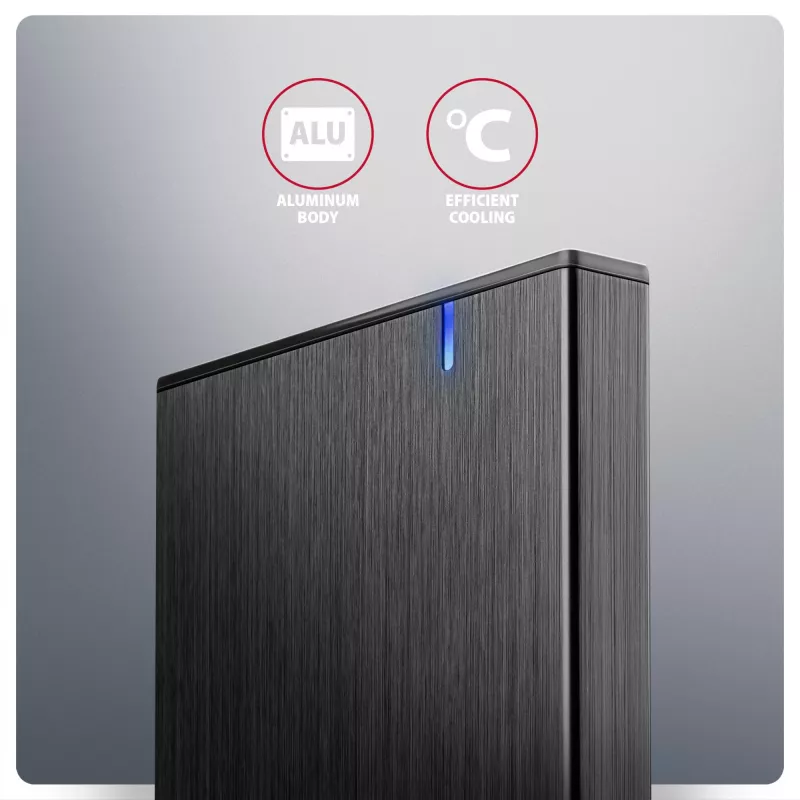

Lightweight yet durable aluminum body provides excellent mechanical protection for the drive and ensures efficient heat dissipation.

The elegant brushed surface casing offers a sleek look while preventing unwanted fingerprints.

Input:
• USB 5Gbps (USB 3.2 Gen 1), connector USB-C female.
• Compatible with USB 480Mbps, USB 10Gbps.

Device support:
• SATA III - 6 Gb/s (600 MB/s) interface,
• supports 2.5" SSD/HDD,
• max. disk capacity – all without restriction,
• max. 2.5" disk height – 9.5 mm.

Other features:
• Supports transmission rates 5.000 / 480 Mbit/s.
• Compliant with Serial ATA 3.0 specification (SATA/600), transmission rates of up to 6 Gb/s (600 MB/s).
• Compliant with Serial ATA 2.0 specification (SATA/300), transmission rates of up to 3 Gb/s (300 MB/s).
• Compliant with Serial ATA 1.0 specification (SATA/150), transmission rates of up to 1.5 Gb/s (150 MB/s).
• The total bandwidth / transmission rate of the box is determined by the USB interface used (theor. 5 Gbit/s).
• Supports BOT (Bulk-Only Transport).
• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.
• Supports TRIM functionality to limit gradual degradation of the SSD performance over time.
• Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system monitoring disk condition.
• SSD/HDD boot support in external box.
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• HDD Auto Spindown - automatic spindown of a disk after period of inactivity lasting 10 minutes.
• HDD Turn Off - turns off the drive after removing the device or spinning down the PC.
• Connection via USB-C 3.2 Gen 1 female connector.
• USB-C / USB-A cable 50 cm long is included.
• A decent LED indicating the connection to the computer's USB port (permanent light) and data transfer (blinking).

Other data:
• Box dimensions 13 × 129 × 79 mm.
• Weight 82 g (without cable and disk).

Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on the operating system and device manufacturer support.
Drivers are included with supported operating systems and will be installed automatically. No other drivers need to be installed and are not even available.

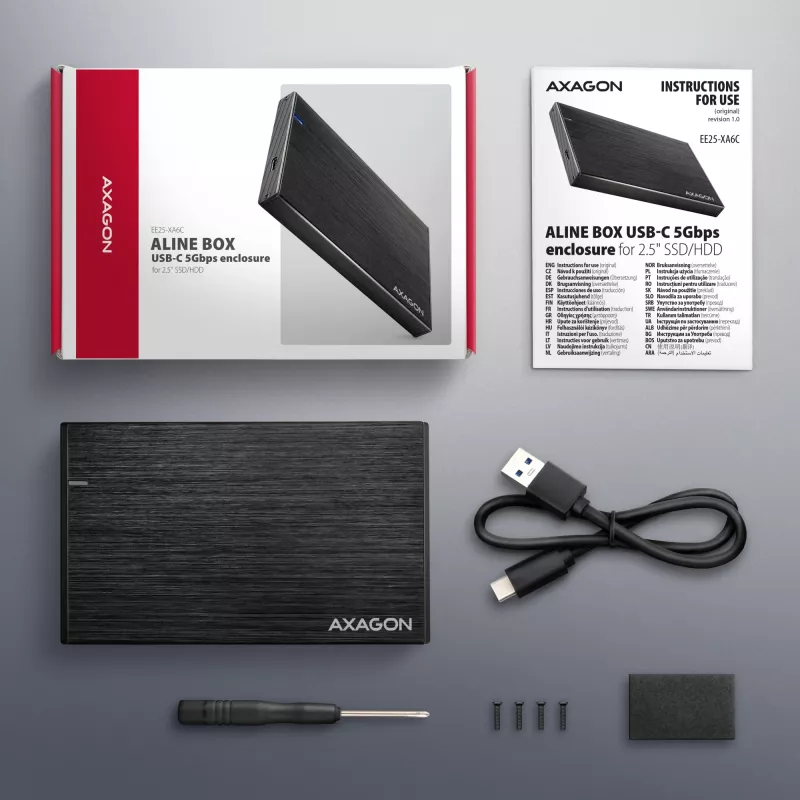

Package contains:
• USB-C 5Gbps external box for 2.5" SATA disk,
• USB-C – USB-A cable 50 cm long,
• self-adhesive foam pad,
• mounting kit and screwdriver,
• multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• packed in a cardboard box.

How to use

Open the enclosure according to the tool-free mechanism, insert a compatible 2.5" SATA HDD or SSD into the connector, and close the enclosure to secure the drive. Connect the enclosure to a host device using a USB-C 3.2 Gen 1 cable; if necessary, use an appropriate adapter to connect to older USB ports. The connected drive will be recognized by most modern operating systems and is ready for file transfer, backup, or other storage tasks. When finished, safely eject the drive using the host operating system before disconnecting the cable to avoid data loss.

Recommendations

Use a USB-C 3.2 Gen 1 cable that meets quality standards and, when connecting to older USB ports, choose an adapter that supports data transfer speeds and power delivery appropriate for your drive. For long-term storage or frequent transport, use an SSD to reduce mechanical shock risk. Regularly back up important data and safely eject the drive before removal.
