AXING SAA 85-01N antena parabólica de aluminio 85 cm, gris claro SAA08501N

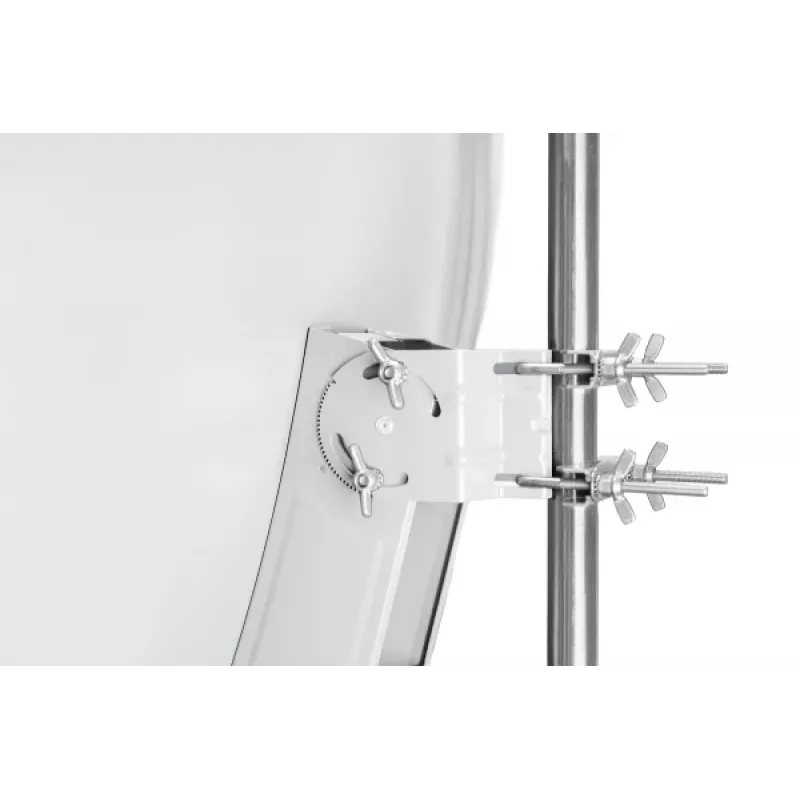

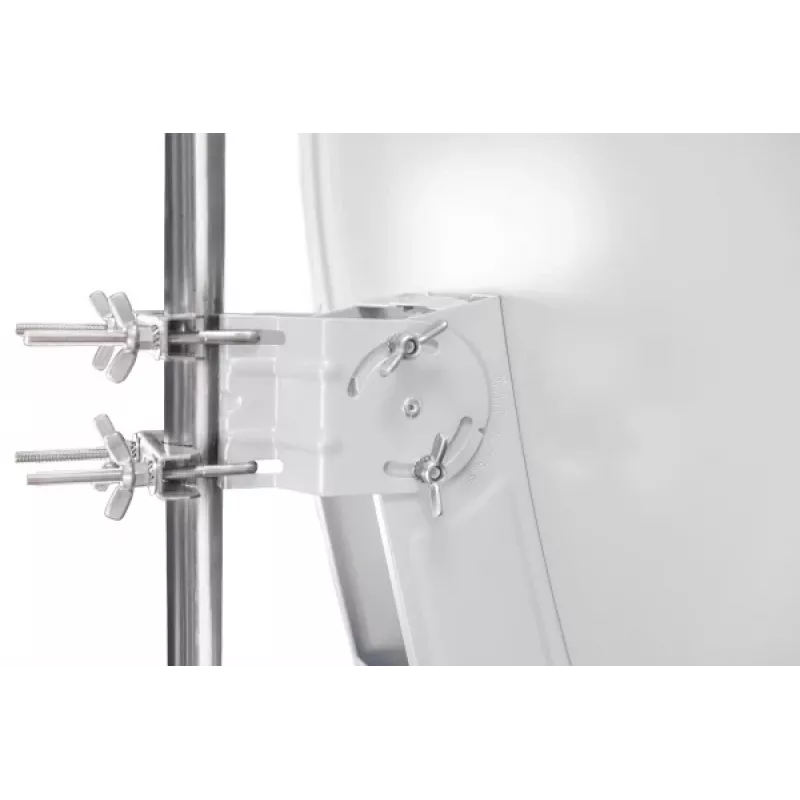

With a gain of 38.5 dB at 11.7 GHz, the AXING SAA 85-01N aluminium satellite antenna delivers reliable reception across the full Ku-band from 10.7 to 12.75 GHz. Its 85 cm reflector is made of corrosion-resistant aluminium, while the galvanized steel mount with powder coating ensures durability in outdoor conditions. The antenna is designed for easy installation with an elevation adjustment range of 5° to 80° and a mast clamp that fits diameters from 32 to 76 mm.

Overview

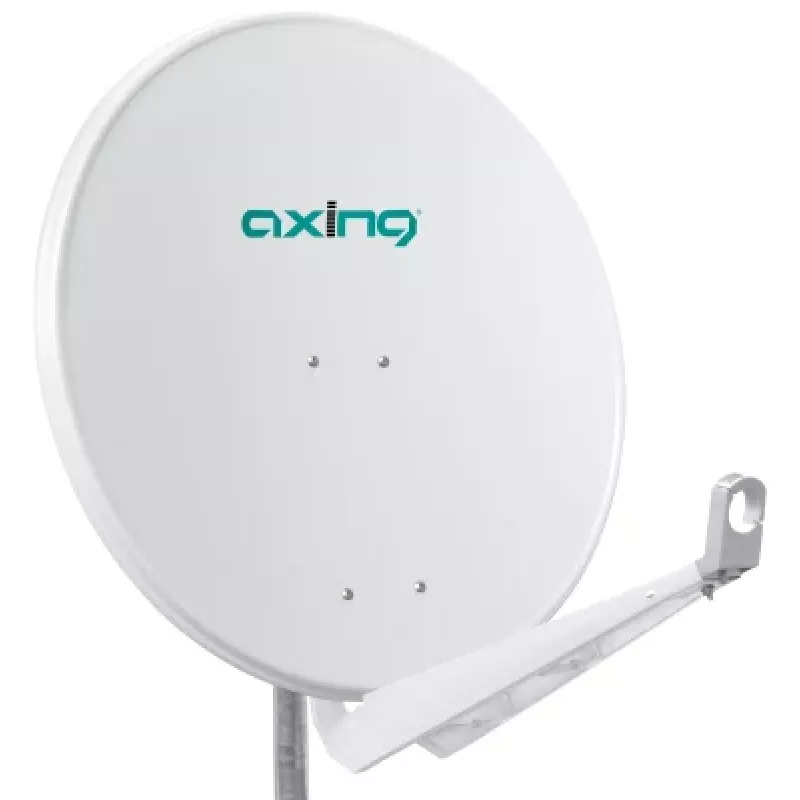

The AXING SAA 85-01N is an offset satellite dish with a light grey aluminium reflector. It is suitable for receiving satellite television and radio signals. The reflector measures 85 cm in width and 90 cm in height, providing a good balance between signal gain and wind load. The LNB holder has a diameter of 40 mm, compatible with standard LNBs.

What stands out

• High gain of 38.5 dB for strong signal reception
• Wide frequency range: 10.7 - 12.75 GHz
• Corrosion-resistant aluminium reflector
• Powder-coated galvanized steel mount for outdoor durability
• Flexible mast clamp fits 32-76 mm diameters
• Elevation adjustable from 5° to 80°

Technical details

• Antenna type: Offset satellite dish
• Reflector material: Aluminium
• Reflector width: 85 cm
• Reflector height: 90 cm
• Colour: Light grey
• Frequency range: 10.7 - 12.75 GHz
• Gain at 11.7 GHz: 38.5 dB
• Offset angle: 26°
• F/D ratio: 0.6
• LNB holder diameter: 40 mm
• Mast clamp diameter: 32 - 76 mm
• Elevation adjustment range: 5° - 80°
• Mount material: Galvanized steel, powder-coated
• LNB arm material: Aluminium
• Wind load at 120 km/h: 450 N
• Operating temperature: -40°C to +60°C

Our verdict

The AXING SAA 85-01N is a solid choice for anyone needing a reliable 85 cm satellite dish with excellent gain and durable construction. Its aluminium reflector and powder-coated mount withstand harsh weather, while the wide elevation range and mast compatibility make installation straightforward.
