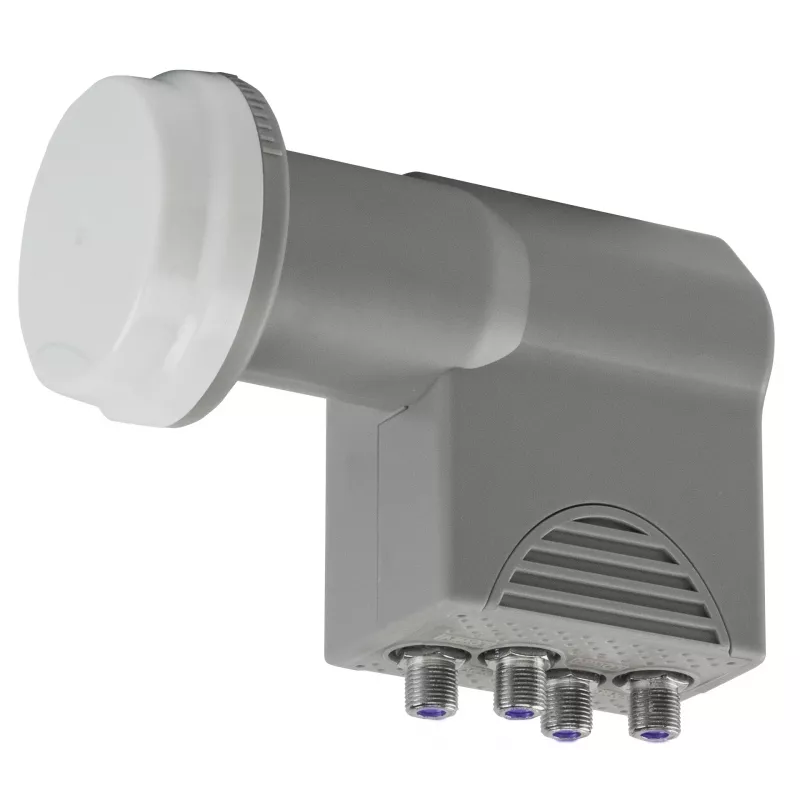

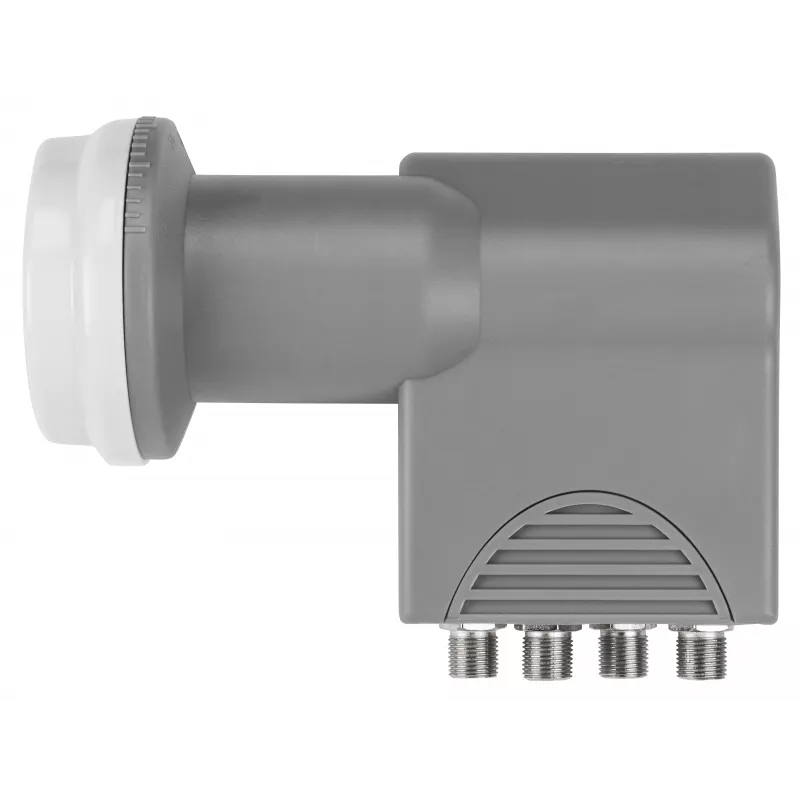

AXING SCO 4-10 LNB Quattro, alimentador de 40 mm, 4 salidas, UHD/3D Ready SCO00410

For satellite reception systems requiring independent distribution of all four polarisation and frequency band combinations to multiple receivers, the AXING SCO 4-10 Quattro LNB provides a dedicated output for each: Horizontal High, Horizontal Low, Vertical High, and Vertical Low. This design is essential for multiswitch installations in larger residential or commercial buildings, where each tuner needs access to every available channel without conflicts.

Who is it for

This LNB is intended for professional installers and system integrators setting up satellite distribution for multiple dwellings or larger properties. It is ideal when using a multiswitch to feed numerous receivers, as the Quattro LNB delivers the four signal paths required for full channel availability across all connected devices.

Main features

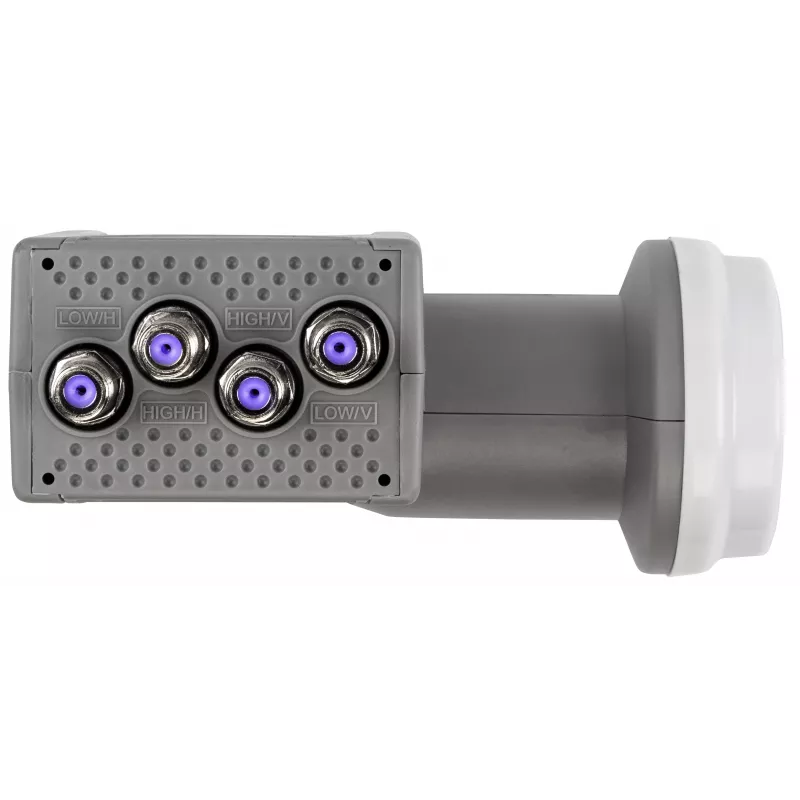

• Quattro LNB with four dedicated outputs: Horizontal High, Horizontal Low, Vertical High, Vertical Low.
• 40 mm feedhorn diameter for standard dish mounting.
• Supports DVB-S, DVB-S2, Full HD, 3D, and 4K/UHD signals.
• Low noise figure of 0.1 dB (typical) for clear reception.
• Integrated pull-out weather protection for F-connectors.
• Weather-resistant plastic housing for durability.

Specifications

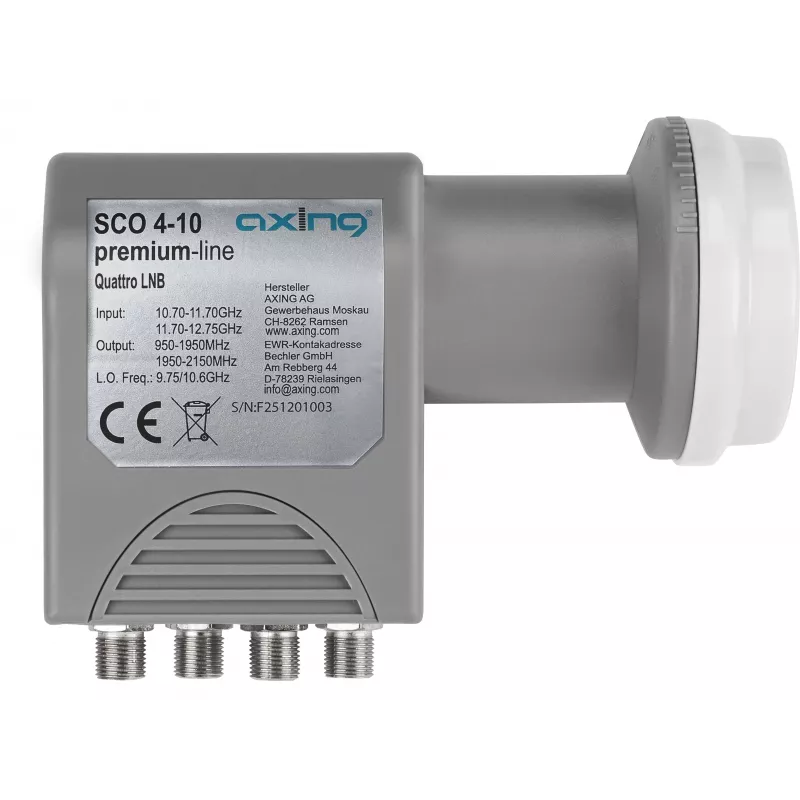

• Input frequency range: 10.7 - 11.7 GHz (low band), 11.7 - 12.75 GHz (high band).
• Output frequency range: 950 - 1950 MHz (low band), 1100 - 2150 MHz (high band).
• Local oscillator frequencies: 9.75 GHz (low band), 10.6 GHz (high band).
• Conversion gain: 50 - 60 dB.
• Cross polarisation isolation: > 20 dB.
• Image rejection: > 40 dB.
• Current consumption: max. 180 mA.
• Operating temperature: -30 °C to +60 °C.
• Connector type: F-connector.

Tips

Ensure the LNB is correctly skewed for your geographic location to optimise cross-polarisation isolation. The integrated weather protection sleeves should be pulled over the F-connectors to prevent moisture ingress and signal degradation over time.
