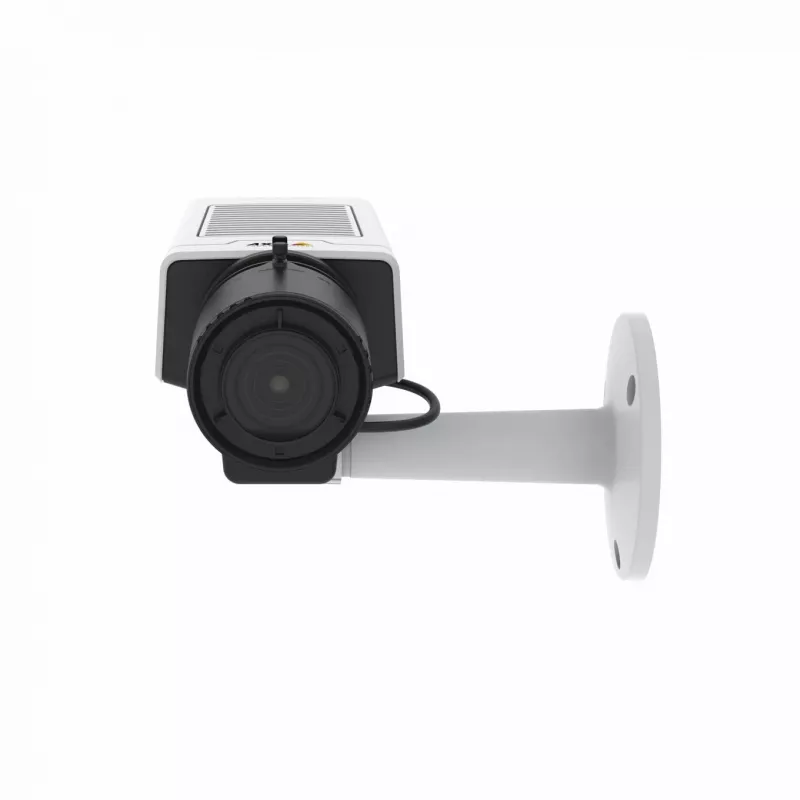

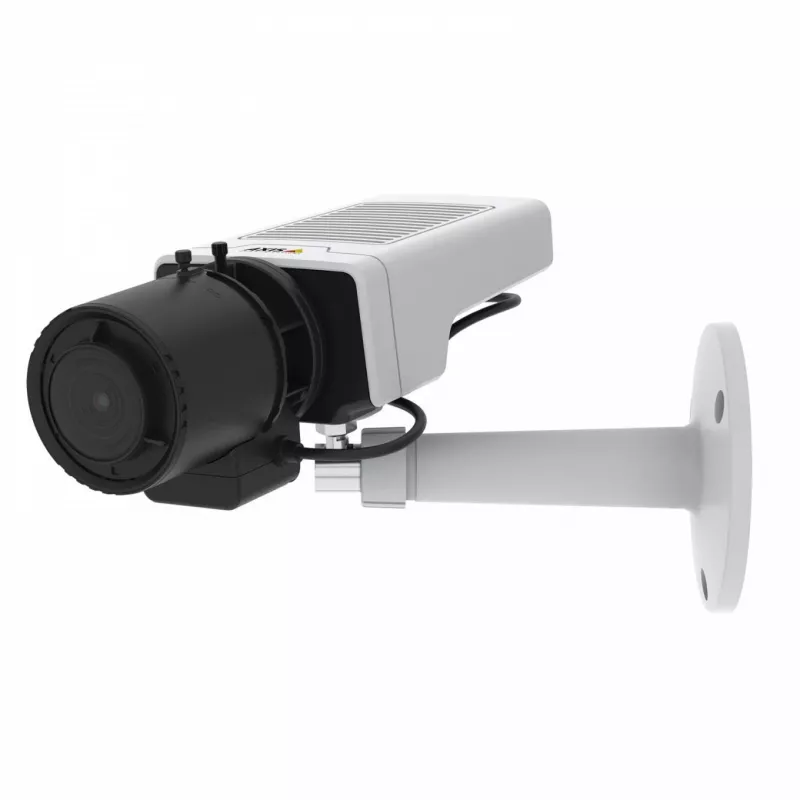

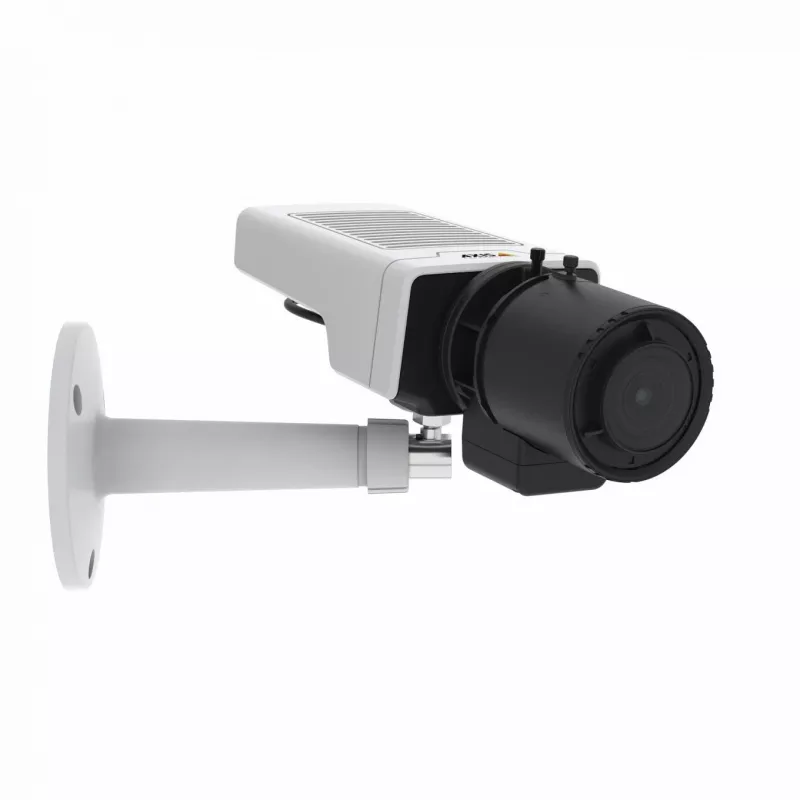

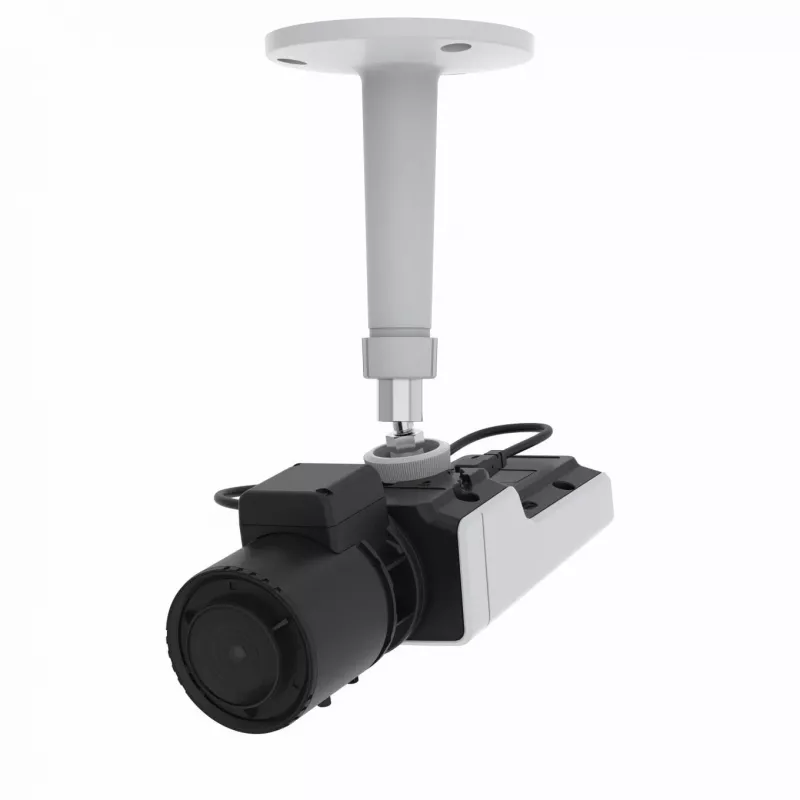

Axis M1137 MK II 02581-001 Cámara de red compacta de cúpula fija 5MP i-CS día/noche PoE

The Axis M1137 MK II (02581-001) is a compact 5-megapixel fixed box network camera designed for professional indoor surveillance installations requiring high image detail and flexible lens options. The i-CS (intelligent camera solution) lens mount enables motorised remote focus and zoom adjustment without physical access to the camera, saving significant installation and maintenance time. Combined with Axis Lightfinder technology and a day/night IR-cut filter, this camera delivers clear, colour-rich video in low-light environments.

Advantages

The 5 MP progressive scan CMOS sensor captures crisp 2592 x 1944-pixel images at up to 30 fps, providing ample detail for forensic analysis and licence plate recognition at distance. Forensic Wide Dynamic Range (WDR) ensures both bright and dark areas of the scene are exposed correctly in high-contrast situations. AXIS Object Analytics enables on-camera edge detection of people and vehicles, reducing false alarms and network bandwidth consumption without dedicated server processing.

Suitable for

• Indoor enterprise security: lobbies, server rooms, retail areas requiring high detail capture
• Critical infrastructure monitoring where remote lens calibration simplifies multi-camera deployments
• Loss prevention and forensic evidence gathering with high-resolution day/night imaging

Key specifications

• Brand: Axis
• Model: M1137 MK II
• MPN: 02581-001
• EAN: 7331021079687
• Resolution: 5 MP (2592 x 1944 pixels)
• Sensor: 1/2.7" progressive scan RGB CMOS
• Lens Mount: i-CS (motorised remote focus and zoom)
• Frame Rate: up to 30 fps
• Minimum Illumination: 0.1 lux (colour, F1.6)
• Wide Dynamic Range: Forensic WDR
• Video Compression: H.264, H.265, MJPEG
• Networking: 10/100 Mbps Ethernet RJ-45, Power over Ethernet (PoE)
• Local Storage: microSD/microSDHC/microSDXC card slot
• Analytics: AXIS Object Analytics, motion detection
• Day/Night: Automatic IR-cut filter
• Placement: Indoor
• Operating Temperature: 0 to 50 °C
• Weight: approx. 0.3 kg

How to use

Mount the camera using the included bracket, connect a standard PoE switch or injector via the RJ-45 port for both power and network data, then configure the IP address and stream settings via the web-based AXIS Device Manager interface. Use the i-CS lens adjustment utility to focus and zoom remotely from a laptop without a ladder.

Recommendations

The Axis M1137 MK II i-CS is ideal for integrators seeking a future-proof indoor box camera with software-controlled optics — invest once and adjust lens coverage on-site or remotely as your monitoring requirements evolve.
