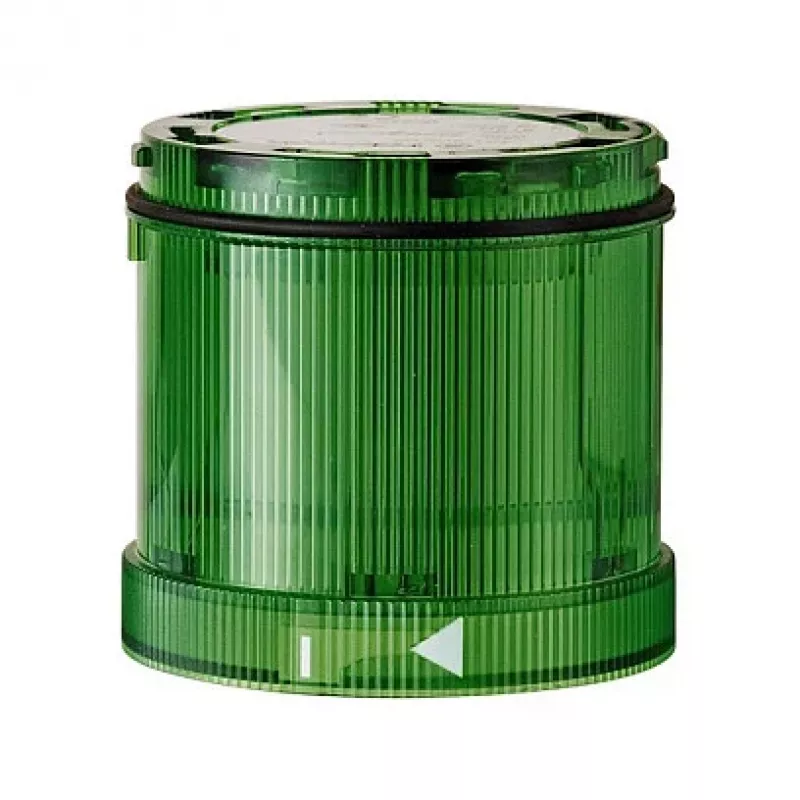

WERMA Signaltechnik KombiSIGN 70 LED luz fija verde 24V AC/DC IP65 70mm

The WERMA Signaltechnik 644.200.75 is a high-quality LED permanent light from the KombiSIGN 70 series, designed for reliable visual signaling in industrial environments. With a green LED light source and a service life of 50,000 hours, this signal light ensures long-lasting performance. Its robust polycarbonate housing and lens provide excellent durability, while the IP65 rating guarantees protection against dust and water jets. The bayonet mount allows for quick and easy installation. Operating at 24 V AC/DC, it consumes only 0.8 W, making it energy-efficient. Suitable for a wide temperature range from -20 to 50 °C, this signal light is ideal for use in factories, warehouses, and automation systems.

Advantages

Energy-efficient LED technology with low power consumption of 0.8 W. Long service life of 50,000 hours reduces maintenance. Robust polycarbonate construction withstands harsh conditions. IP65 protection ensures reliability in dusty and wet environments. Simple bayonet mounting for quick setup.

Suitable for

• Industrial automation and control panels
• Warehouse and logistics signaling
• Machine status indication
• Safety and warning systems

Key specifications

• Light Type: LED
• Light Function: Permanent Light
• Light Color: Green
• Operating Voltage: 24 V AC/DC
• Current Consumption: 35 mA
• Power Consumption: 0.8 W
• Ingress Protection: IP65
• Operating Temperature: -20 to 50 °C
• Storage Temperature: -25 to 70 °C
• Housing Material: Polycarbonate (PC)
• Lens Material: Polycarbonate (PC)
• Service Life: 50,000 h
• Mounting Type: Bayonet Mount
• Diameter: 70 mm
• Series: KombiSIGN 70
• Certifications: CE, UL Type 4/4X/13, EAC, cULus

Recommendations

For optimal performance, ensure the supply voltage is stable and within the specified range. This signal light is compatible with WERMA KombiSIGN 70 accessories for expanded functionality.
