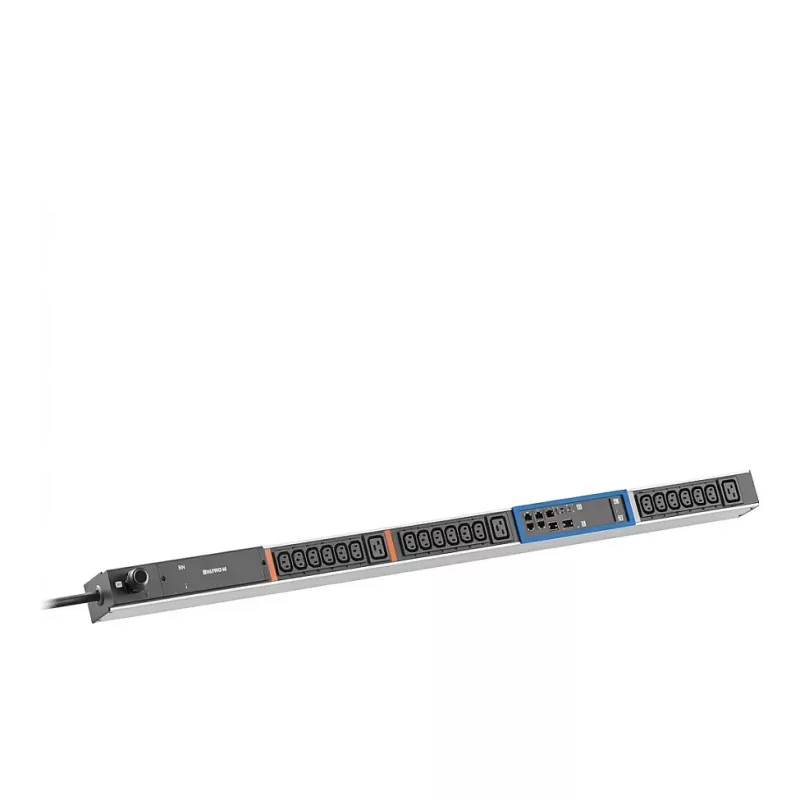

Bachmann BN PRO M 18xC13 3xC19 3m CEE 16A/5p PDU

The Bachmann BN PRO M is a professional 19-inch rackmount PDU designed for data centers and server rooms requiring reliable power distribution. With 18 IEC C13 and 3 IEC C19 outlets, it provides a total of 21 output sockets, making it ideal for high-density equipment. The 3.0-meter input cable with a CEE 16A/5p plug ensures secure 3-phase connection up to 11 kW.

Advantages

Robust aluminum housing in black, 1U horizontal form factor, and tool-less mounting options simplify installation. The PDU supports 400V AC input at 16A, 50/60 Hz, and operates in temperatures from 0°C to +45°C. Its compact design maximizes rack space efficiency.

Suitable for

• Server racks and network cabinets
• Data centers requiring 3-phase power distribution
• IT equipment with C13 and C19 power connectors

Key specifications

• Input: CEE 16A/5p, 400V AC, 16A, 50/60 Hz
• Output: 18x IEC C13 + 3x IEC C19, total 21 outlets
• Cable length: 3.0 m
• Max power: 11 kW
• Mounting: 19-inch 1U rackmount
• Housing: Aluminum, black
• Protection: IP20
• Operating temperature: 0°C to +45°C
• Storage temperature: -20°C to +70°C

Recommendations

For optimal performance, use with upstream overcurrent protection. This basic PDU does not include monitoring or switching features; consider a metered or switched PDU for advanced power management.
