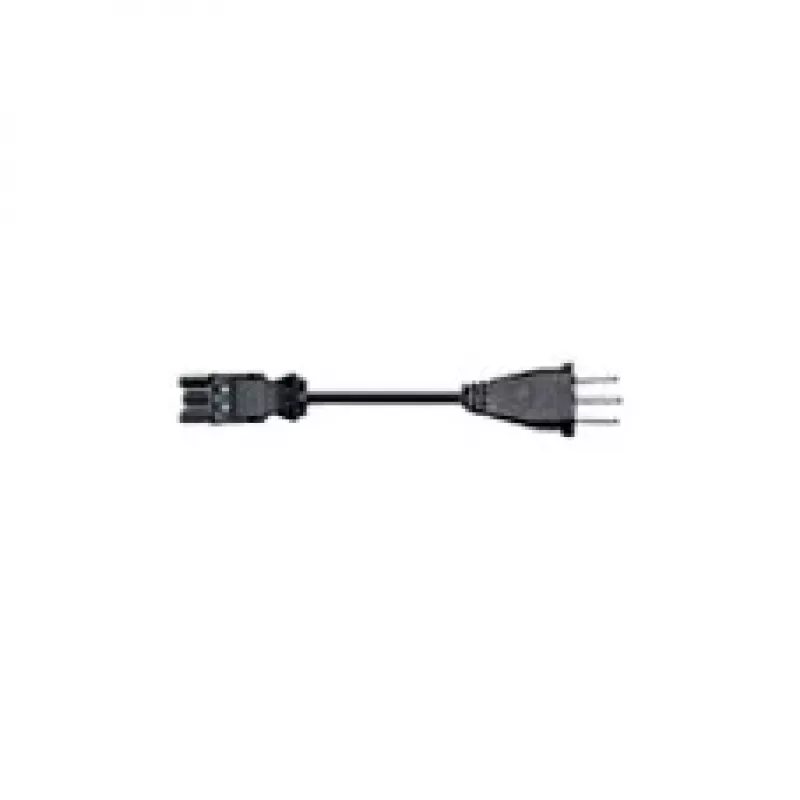

BACHMANN cable de alimentación H05VV-F 3G1,0mm 5,0m negro GST18/T12

This BACHMANN power supply cable is designed for reliable and safe power transmission in various applications. With a length of 5.0 meters and a robust H05VV-F 3G1.0mm² construction, it offers flexibility and durability. The cable features a GST18i3 plug on one end and a free end with stripped wires on the other, making it ideal for connecting devices to power sources or for internal wiring.

Advantages

High-quality PVC insulation and sheath provide excellent protection against wear and tear. The flame-retardant material ensures safety in case of overheating. The 5.0m length offers ample reach for most setups, and the 3G configuration with earth conductor enhances safety.

Suitable for

• Power supply for electrical appliances
• Connection of devices to power distribution systems
• Internal wiring in control cabinets and machinery

Key specifications

• Cable standard: H05VV-F
• Conductor cross-section: 1.0 mm²
• Number of conductors: 3 (with earth)
• Cable length: 5.0 m
• Connector 1: GST18i3 plug (male)
• Connector 2: Free end (stripped wires)
• Rated voltage: 300/500 V
• Max. current rating: 10 A
• Colour: Black
• Operating temperature: -5°C to +70°C
• Flammability rating: Flame retardant (IEC 60332-1-2)
• Protection class: IP20

Recommendations

Ensure that the free end is properly terminated according to local electrical codes. This cable is not suitable for outdoor use or environments with high moisture.
