Bachmann cable espiral H05VV-F 3G1,5mm² 1m blanco CEE 7/7 extremo abierto (BM0010718)

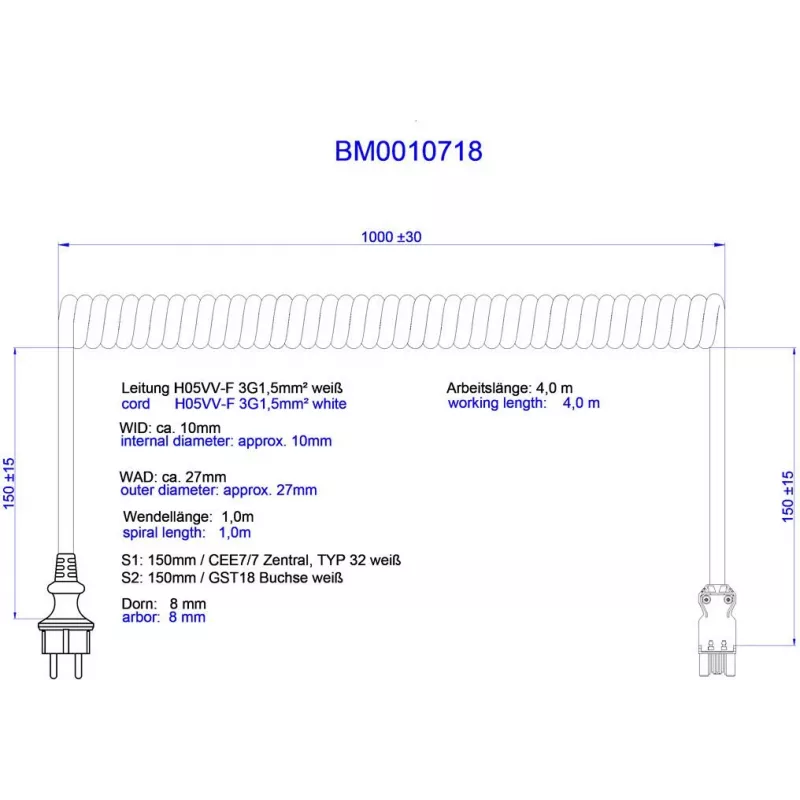

The Bachmann BM0010718 is a high-quality coiled power cable designed for flexible power supply applications. With a length of 1.0 meter (unextended) and a robust H05VV-F 3G1.5mm² construction, this cable is ideal for connecting appliances to mains power where a retractable, space-saving solution is needed. The cable features a CEE 7/7 plug (compatible with Schuko and French sockets) on one end and an unterminated open end on the other, allowing for custom termination or direct connection to devices.

Advantages

The spiral design prevents tangling and keeps the cable neatly coiled when not in use, reducing clutter and improving safety. The fine-stranded copper conductors ensure flexibility and durability, while the PVC insulation and sheath provide reliable protection against wear and environmental factors. Rated for 300/500V and 16A, this cable is suitable for a wide range of household and light industrial applications.

Suitable for

• Power supply for appliances requiring a flexible, retractable cable
• Workshops, laboratories, and workstations where cable management is important
• Extension of fixed installations with a temporary, movable connection
• Replacement of damaged or missing power cords on equipment

Key specifications

• Cable Standard: H05VV-F
• Cable Type: Coiled / Spiral Cable
• Number of Conductors: 3 (including earth)
• Conductor Cross-Section: 1.5 mm²
• Nominal Voltage: 300/500 V
• Max. Current Rating: 16 A
• Plug Type: CEE 7/7 (Hybrid Schuko/French)
• Other End: Unterminated / Open End
• Cable Length (Unextended): 1.0 m
• Colour: White
• Conductor Material: Copper (fine-stranded)
• Insulation Material: PVC
• Sheath Material: PVC
• Operating Temperature (Flexible Use): +5°C to +60°C

Recommendations

For best performance, ensure the cable is used within its rated current and voltage limits. Avoid sharp bends or excessive pulling to maintain the integrity of the spiral shape. This cable is not intended for fixed installations; use only as a flexible connecting cable.
