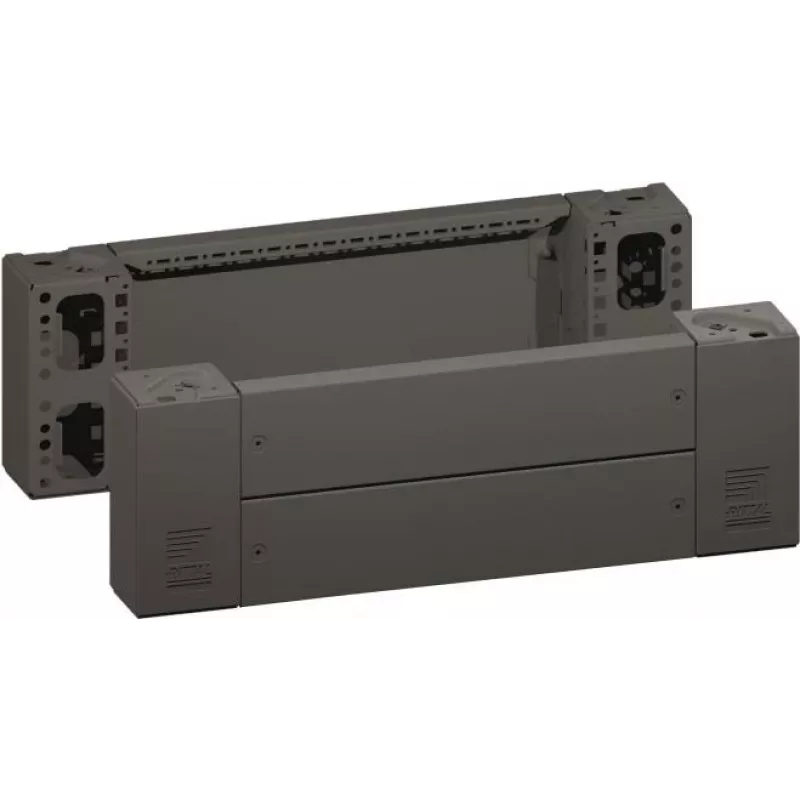

Esquinero de zócalo Rittal VX embellecedor frontal/trasero H200mm para B600mm

The Rittal Sockel-Eckstück VX Blende vorne/hinten H200mm f. B600mm is an accessory panel designed for use with B600mm enclosures. With a height of 200 mm, this corner cover provides a continuous visual finish at the front and rear base corners of the enclosure, contributing to a neat appearance and maintaining the enclosure's structural alignment. The part is intended to integrate with VX series base frames and panels to complete the lower perimeter without leaving exposed gaps.

Advantages

This corner cover offers a precise fit for B600mm enclosures, simplifying the assembly of base frames and improving the overall finish. Its uniform height and corner-specific form reduce the need for on-site modifications and support consistent panel alignment across multiple cabinets. The product helps protect internal components from ingress at the base edge and preserves the intended load-bearing geometry of the enclosure.

Suitable for

Key specifications

How to use

Install the corner cover by aligning it with the VX base frame at the front or rear corner of the B600mm enclosure. Secure the panel using the manufacturer-recommended fasteners and mounting points so it sits flush with adjacent panels. Verify alignment with neighboring base and side panels and tighten fasteners evenly to avoid deformation. Follow standard safety procedures when handling panels and use appropriate tools for panel installation.

Recommendations

Store the panel in a dry, dust-free area prior to installation and inspect it for transport damage. When replacing existing corner covers, remove old fasteners carefully and check adjoining sealing elements for wear to maintain ingress protection. For consistent cabinet appearance across multiple units, install corner covers before adding internal equipment or cable entries.
