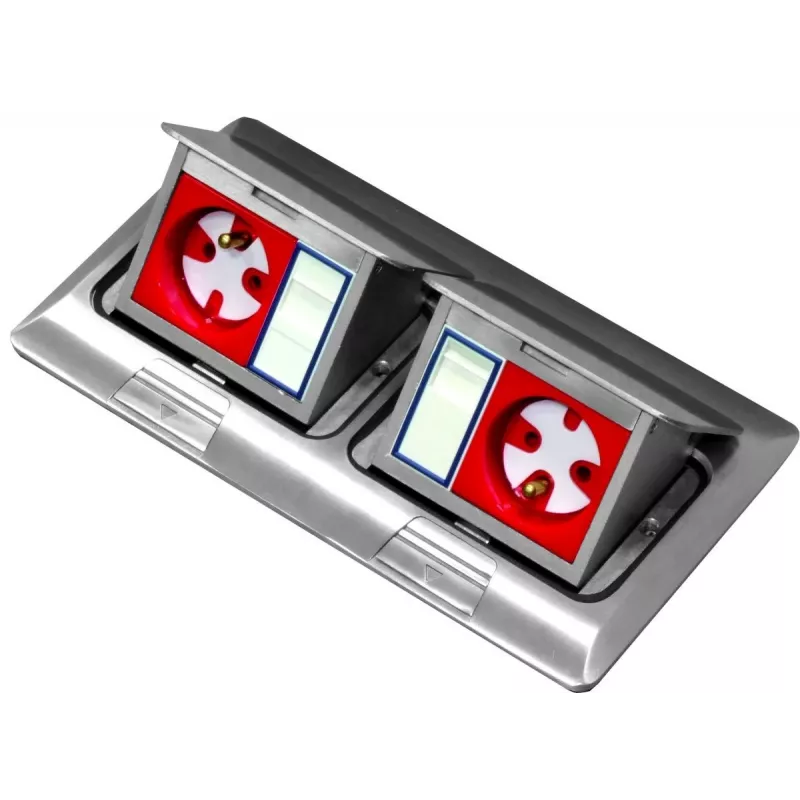

BACHMANN Mini Floor Box 2x3M – caja doble de mesa y suelo para módulos de 45x45 mm, tapa abatible, gris

In modern offices and conference rooms, power and data access must be available exactly where people work—without cluttering the floor or disrupting the design. The BACHMANN Mini floor box 2x3M solves this by providing a flush, tilting recessed unit that accommodates up to six standard 45x45 mm modules (or 22.5x45 mm variants). Whether you're installing in a raised floor, a countertop, or a piece of furniture, this box keeps connections neatly hidden until needed, then opens smoothly for easy access.

Key specifications

• Module capacity: 6 modules (2 rows of 3) for 45x45 mm or 22.5x45 mm inserts
• Lid type: tilting / hinged, opens to reveal sockets and closes flush
• Material: robust ABS plastic, halogen-free
• Colour: grey (RAL 7035)
• Ingress protection: IP44 when closed
• Impact resistance: IK07
• Max load on lid: 150 kg
• Internal depth: 60 mm
• Mounting: recessed in floor, countertop, or furniture
• Cable entry: pre-punched knockouts for easy wiring
• Operating temperature: -25°C to +60°C
• Certifications: CE

Why choose it

This box is built for demanding commercial environments. The tilting lid allows comfortable access to sockets without removing the cover, and its IP44 rating protects against dust and splashing water when closed. The IK07 impact rating means it withstands everyday knocks, while the 150 kg load capacity supports heavy furniture or foot traffic. Its halogen-free ABS housing contributes to safer indoor air quality in case of fire.

Ideal use cases

• Open-plan offices with raised floors
• Conference tables and meeting room furniture
• Reception desks and counters
• Educational and training facilities
• Retail counters and point-of-sale stations

Good to know

The box is supplied empty, allowing you to populate it with the exact combination of power, data, and multimedia modules your project requires. Pre-punched knockouts simplify cable entry from any direction. Installation is straightforward in cut-outs of standard dimensions, and the neutral grey finish blends with most floor and furniture designs.
