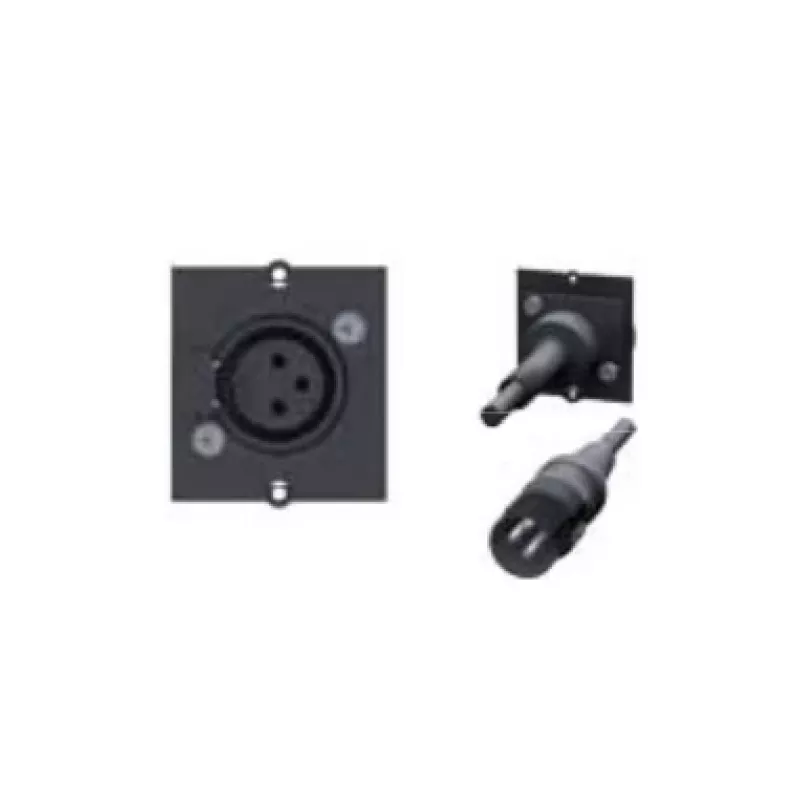

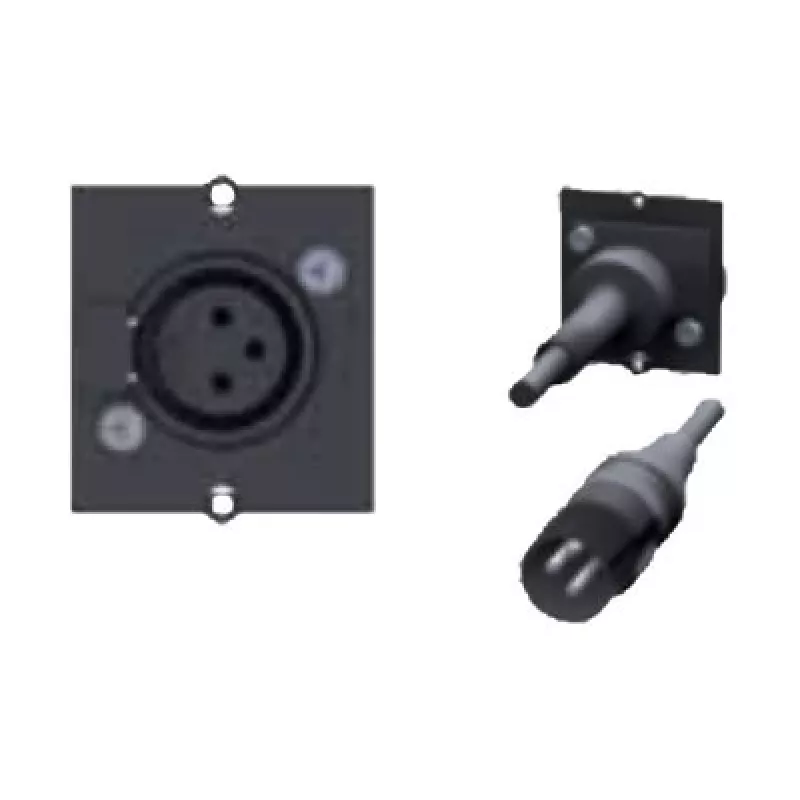

Bachmann placa frontal modular Snap-In XLR hembra de 3 pines negra

The Bachmann Modular Faceplate Snap-In with 3-Pin XLR connector is a high-quality, tool-free snap-in module designed for professional audio, microphone, and DMX applications. Part of the Bachmann Custom Modules series, this female XLR module offers reliable connectivity and easy installation in compatible Bachmann systems such as DESK, CONNEC, and KINECT series.

Advantages

Tool-free snap-in mounting allows for quick and secure installation without additional hardware. The compact 23x23 mm front panel fits seamlessly into modular faceplate systems, providing a clean and professional appearance. Solder terminals on the rear ensure a stable and durable connection.

Suitable for

• Audio and microphone signal transmission
• DMX lighting control systems
• Integration into Bachmann DESK, CONNEC, and KINECT series
• Custom modular faceplate configurations

Key specifications

• Connector Type: XLR, 3-Pin Female
• Mounting: Tool-free snap-in
• Housing Material: Plastic
• Contact Material: Metal alloy
• Colour: Black
• Front Panel Dimensions (W x H): 23 x 23 mm
• Depth: 30 mm
• Connection Method: Solder terminals
• Standard: IEC 61076-2-103 (XLR)

Recommendations

For optimal performance, use with Bachmann compatible faceplates and ensure proper soldering technique for rear connections. Suitable for both new installations and retrofitting existing modular systems.
