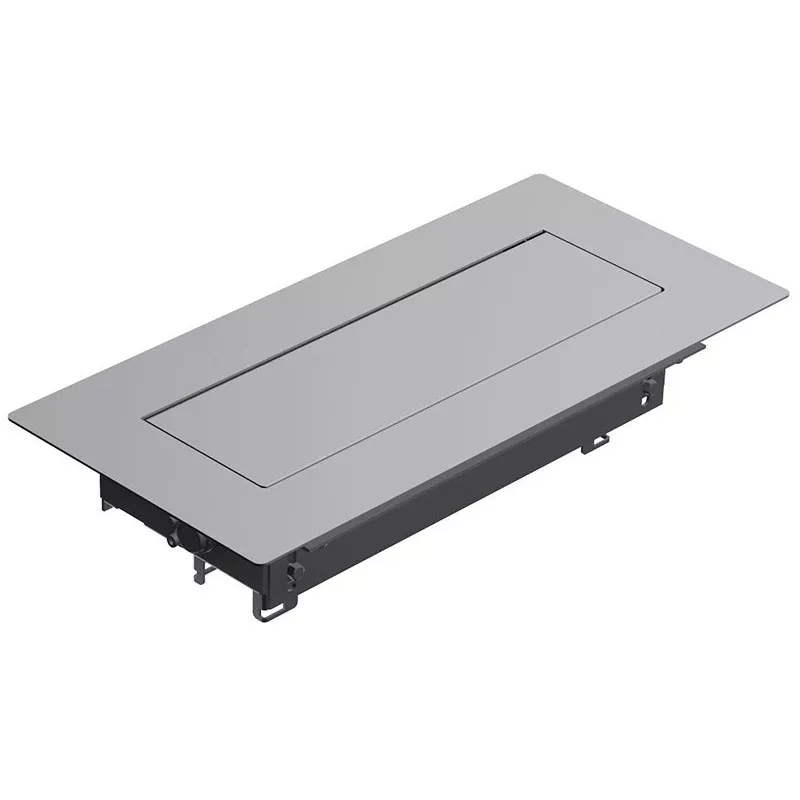

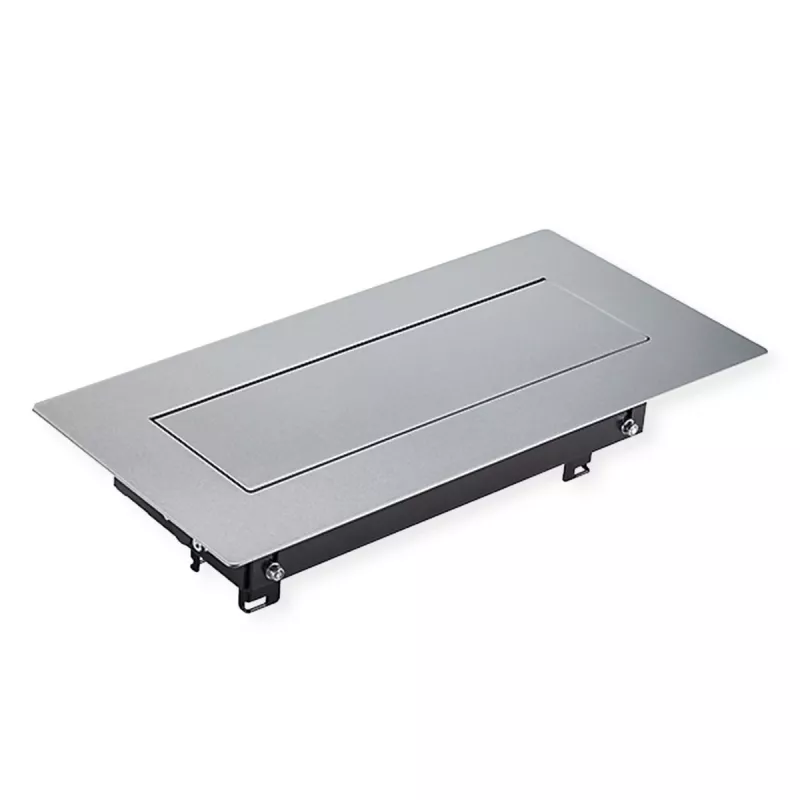

Bachmann TOP FRAME marco simétrico, corto de 4 vías

The Bachmann TOP FRAME Symmetrical Frame, Short 4-Way is a high-quality module frame designed for customisable power and data supply solutions in modern furniture. This flush-mount frame allows tool-free insertion of up to four Bachmann custom modules from both sides, making it ideal for desks, conference tables, and other furniture applications.

Advantages

Symmetrical design enables flexible module placement from either side. Tool-free click-in installation saves time and effort. Compact short frame fits seamlessly into furniture cutouts. Durable high-quality plastic construction ensures long-lasting performance.

Suitable for

• Desks and workstations
• Conference tables
• Furniture integration
• Custom power and data supply setups

Key specifications

• Product Type: Module Frame
• Series: Bachmann TOP FRAME
• Module Capacity: 4 modules
• Module Compatibility: Bachmann Custom Modules
• Design Feature: Symmetrical (modules can be inserted from both sides)
• Mounting Type: Flush mount / Furniture integration
• Recommended Cutout Dimensions (L x W): 195 x 60 mm
• Material: High-quality plastic (PC/ABS)
• Colour: Black
• Application Area: Desks, conference tables, furniture
• Orientation of Modules: Horizontal
• Installation Depth: Approx. 22 mm
• Module Insertion: Tool-free click-in
• Frame Type: Short
• Intended Use: Customisable power and data supply solutions
• Environmental Compliance: RoHS compliant

Recommendations

For a complete solution, pair this frame with compatible Bachmann modules such as power sockets, USB chargers, or data ports. Ensure the cutout dimensions match your furniture for a perfect fit.
