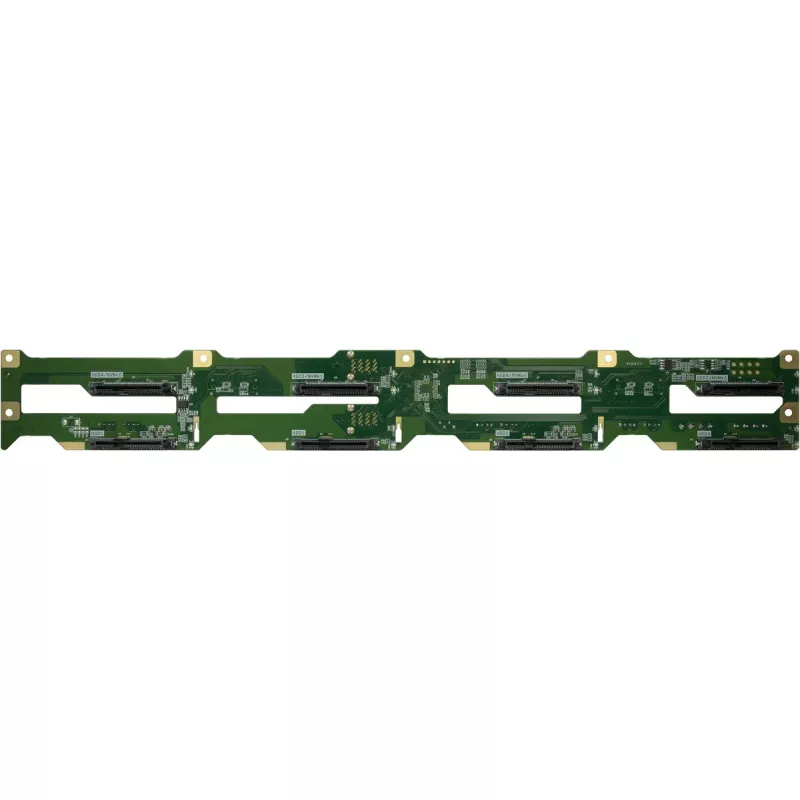

Backplane INTER-TECH BP-4708-NVMe 8 ranuras para unidades NVMe

INTER-TECH BP-4708-NVMe 8-slot backplane is designed to accommodate up to eight NVMe drives in a compact, rack-friendly module. The unit provides a structured interface for mounting and hot-swapping NVMe modules, enabling efficient drive organization in servers, workstations and storage arrays. Its layout simplifies cabling and access without occupying multiple drive bays in a chassis.

Advantages

The backplane supports eight NVMe devices with hot-swap capability, reducing system downtime during drive replacement. Its compact design offers a space-efficient solution for expanding NVMe capacity while maintaining a neat internal layout. The product facilitates straightforward connection to host controllers and simplifies maintenance by centralizing drive mounting and access.

Suitable for

• Server systems requiring multiple NVMe drives
• Workstations used for high-performance storage or media editing
• Storage arrays and RAID configurations with NVMe modules
• Data centre and rack-mounted installations with limited bay space

Key specifications

• Slot count: 8 NVMe drive slots
• Drive interface: NVMe (PCIe-based solid-state drives)
• Form factor: compact, rack-friendly module for chassis integration
• Hot-swap support: designed for removable NVMe modules
• Connectivity: front-mounted slots with centralized internal connector mapping for host cabling
• Mounting: compatible with standard server/workstation internal mounting points

How to use

Install the backplane into a compatible chassis following the chassis manufacturer’s instructions, aligning mounting points and securing the module. Connect the backplane’s internal connectors to the host controller or motherboard using appropriate cables or riser cards that support NVMe signal and power requirements. Insert NVMe drives into the slots until they lock into place; the hot-swap design allows removal and replacement while the system supports hot-plug operations. Verify BIOS/firmware and operating system recognition of installed drives and configure storage or RAID settings as required.

Recommendations

Use compatible NVMe drives and ensure the host controller, cabling and chassis provide proper PCIe lanes and power for full performance. Keep firmware and drivers up to date and follow ESD precautions when inserting or removing modules. For sustained heavy workloads, confirm adequate chassis cooling and airflow around the backplane and drives.
