Backplate EK Water Blocks EK-Quantum Vector2 XC3 RTX 3080/90 aluminio plateado

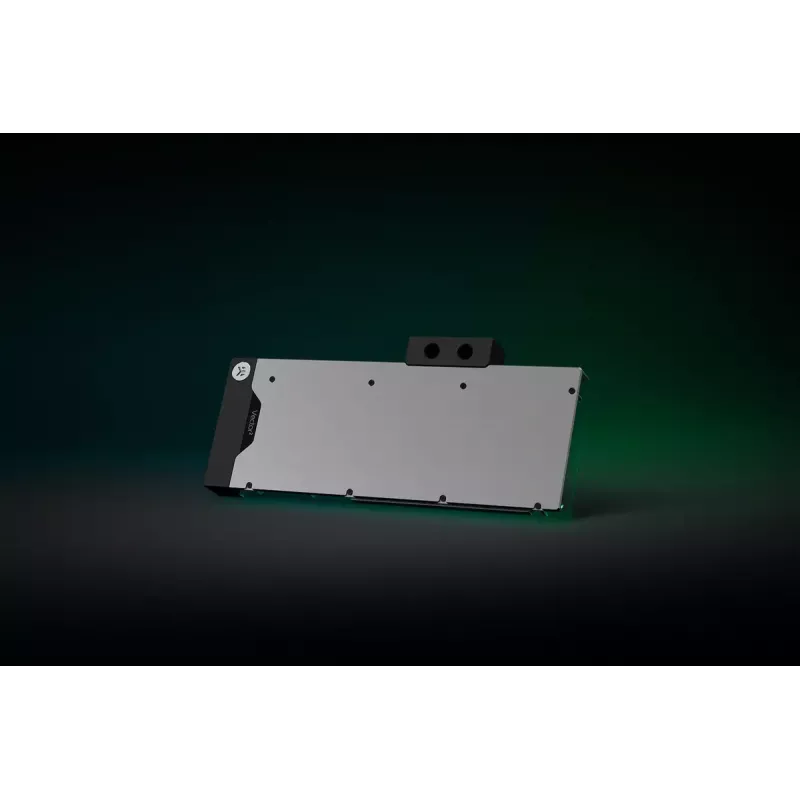

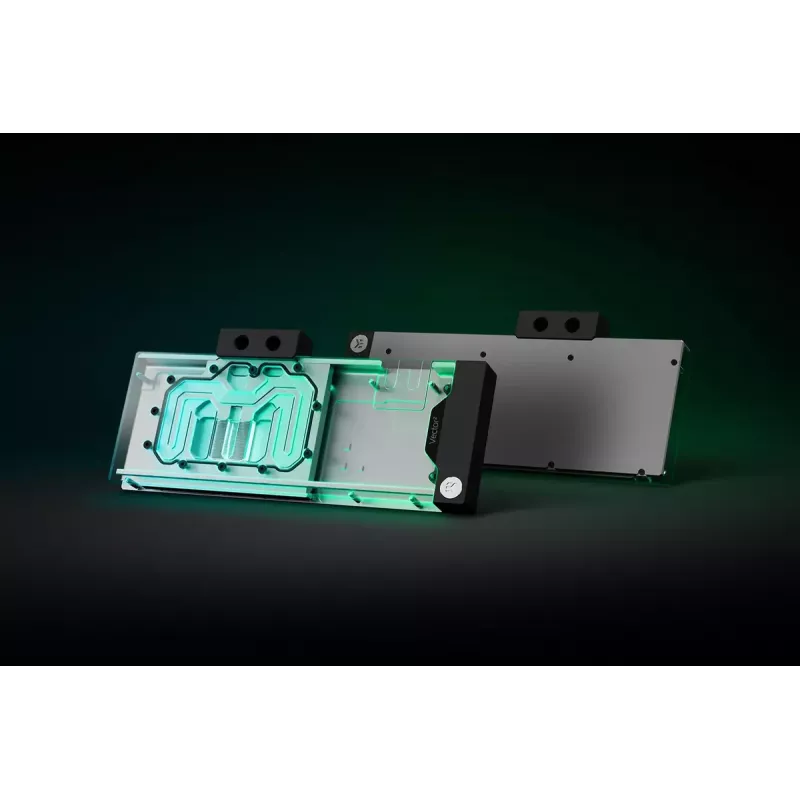

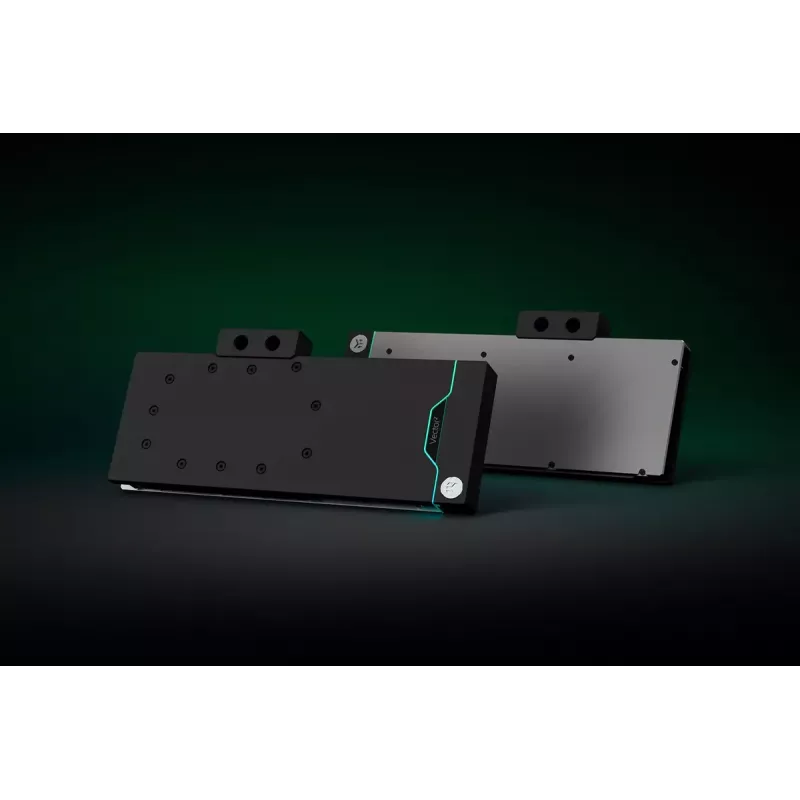

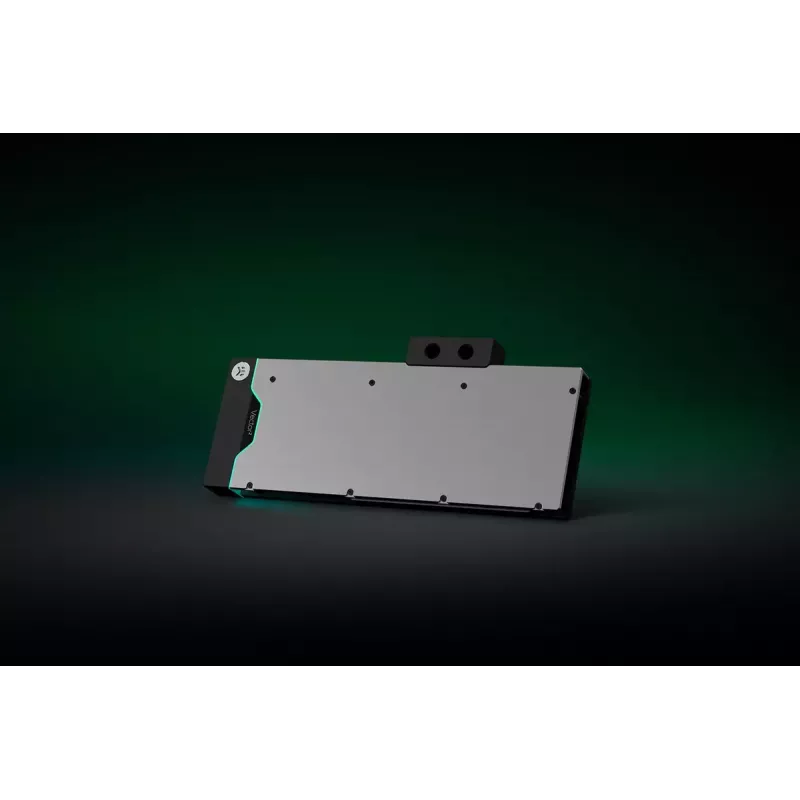

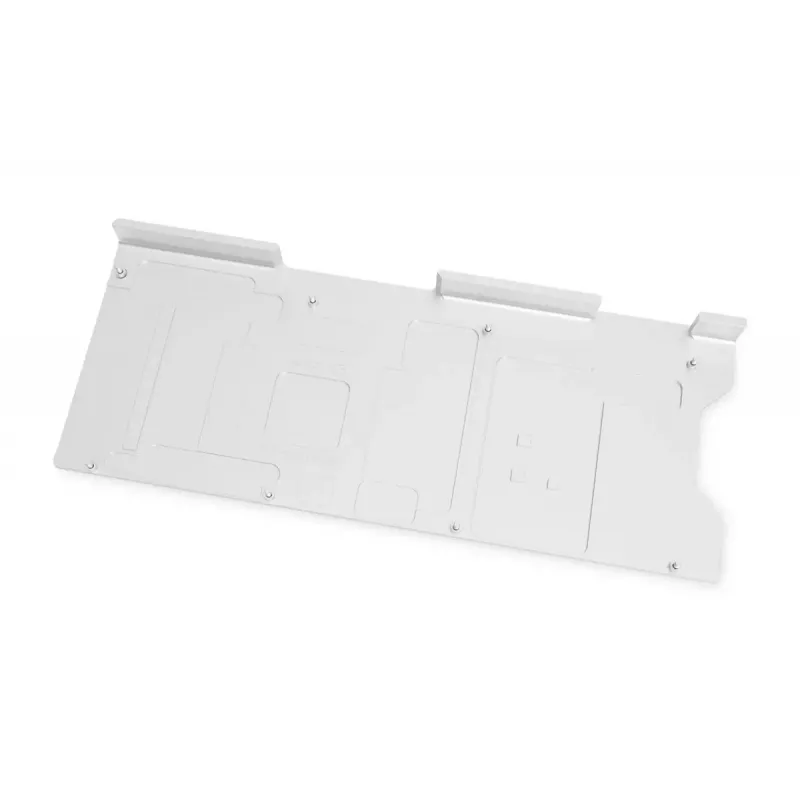

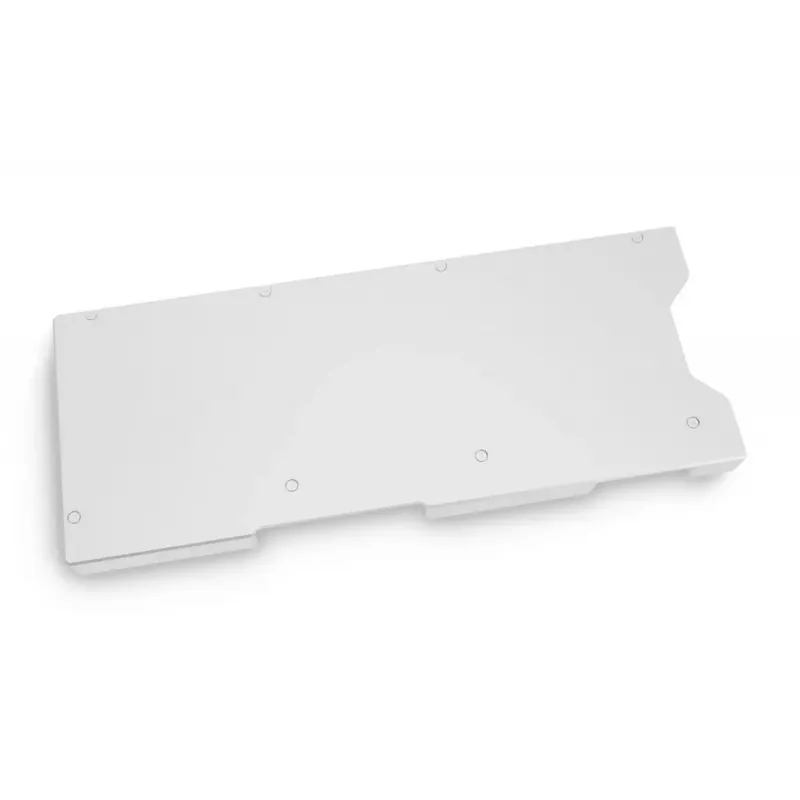

The EK-Quantum Vector² XC3 RTX 3080/90 Backplate in Silver is a CNC-machined aluminium retention backplate with a natural anodized finish. It is made to fit all EK-Quantum Vector² XC3 RTX 3080/90 water blocks and complements EK's Satin Titanium product line. The backplate spans the full length of the graphics card PCB, adding a refined appearance while providing passive cooling to the backside of the voltage regulation module (VRM) and the GPU core.

Advantages

Constructed from durable aluminium with a natural anodized surface, the backplate offers both structural protection and improved thermal dissipation for the card's rear components. Its precise CNC machining ensures a secure fit with EK-Quantum Vector² XC3 RTX 3080/90 water blocks, and the silver finish integrates visually with other EK components.

Suitable for

• Custom liquid-cooled systems using EK-Quantum Vector² XC3 RTX 3080/90 water blocks
• Users seeking additional passive cooling for VRM and GPU backside
• System builders focused on cohesive aesthetics with EK Satin Titanium/silver components

Key specifications

• Material: Aluminium (CNC machined)
• Finish: Natural anodized, Silver
• Compatibility: EK-Quantum Vector² XC3 RTX 3080/90 water blocks
• Dimensions (approx.): 309.5 mm (width) × 17.5 mm (depth) × 133 mm (height)
• Function: Backplate covering full PCB length; passive cooling for VRM and GPU backside

How to use

Install the backplate by aligning it with the PCB and the corresponding mounting points on the EK-Quantum Vector² XC3 RTX 3080/90 water block according to the water block's installation instructions. Secure the backplate with the original screws or hardware supplied with the water block, ensuring even torque on mounting fasteners. Verify there is no contact with solder joints or components that could be stressed by the backplate.

Recommendations

Use this backplate together with the matching EK-Quantum Vector² XC3 RTX 3080/90 water block and follow EK's installation guidelines. Check clearance in your chassis before installation and periodically inspect mounting points for looseness after initial use.
