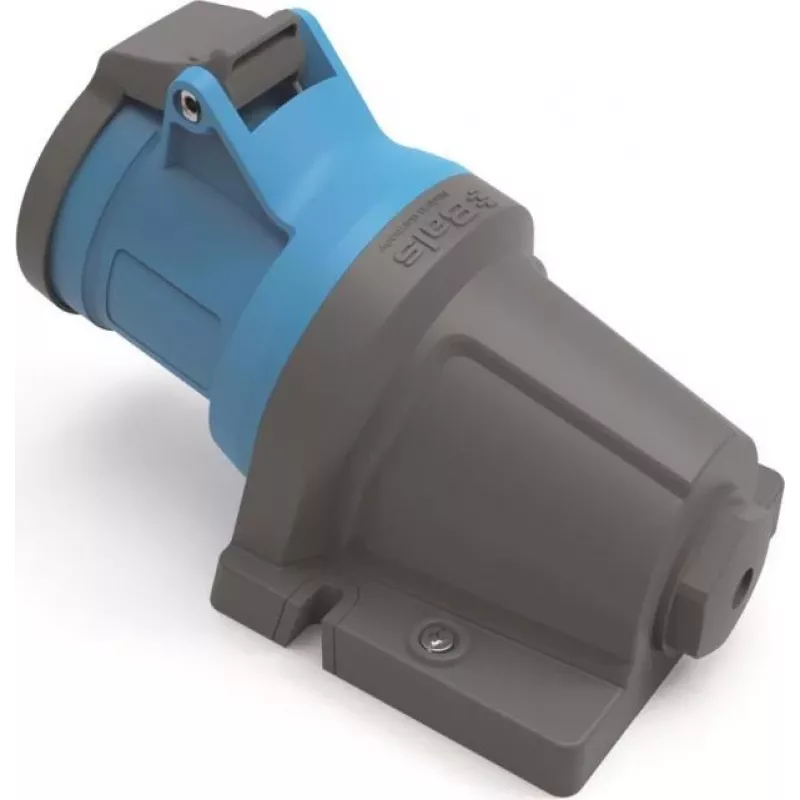

Bals 110646 INNOLINQ QC Toma de pared CEE 32A 3 polos 230V 6h IP44 azul

The Bals 110646 stands apart from ordinary CEE sockets through its INNOLINQ quick-connect technology, which eliminates the need for screw terminals and cuts installation time dramatically. This 32 A wall-mounted socket is built for demanding industrial and commercial environments, offering a secure 3-pole (2P+E) connection with a 6h earth contact position and robust IP44 protection against dust and splashing water. The blue housing provides instant recognition as a 230 V single-phase power source, while the hinged cover keeps the contacts clean when not in use.

Highlights

• INNOLINQ QC screwless terminals for fast, tool-free wiring
• Rated 32 A, 200–250 V AC, 50/60 Hz, 3-pole (2P+E) with 6h earth position
• IP44 ingress protection – suitable for dusty and wet conditions
• High-grade polyamide housing with IK08 impact resistance
• Hinged protective cover and wall-mount design
• Compliant with IEC 60309-1 and IEC 60309-2

In daily use

On construction sites, in workshops, or in commercial kitchens, this socket delivers reliable power for heavy equipment. The quick-connect terminals accept solid or stranded conductors without ferrules, reducing wiring errors and maintenance time. The blue colour coding and 6h position ensure correct mating with matching plugs, preventing accidental connection to different voltage systems. The robust cover snaps shut to keep out debris, and the IK08 rating means it withstands mechanical impacts that would crack lesser sockets.

Full specifications

• Brand: Bals
• Model: 110646
• MPN: 110646
• EAN: 4024941925327
• Product type: CEE wall-mounted socket
• Current rating: 32 A
• Voltage range: 200–250 V AC
• Nominal voltage: 230 V
• Number of poles: 3-pole (2P+E)
• Frequency: 50/60 Hz
• Earth contact position: 6h
• Connection technology: INNOLINQ quick connect (screwless terminals)
• Housing colour: Blue
• Mounting type: Wall-mounted
• Ingress protection: IP44
• Impact resistance: IK08
• Housing material: High-grade plastic (polyamide)
• Contact material: Brass
• Cover type: Hinged protective cover
• Operating temperature range: -25°C to +40°C
• Standards compliance: IEC 60309-1, IEC 60309-2
• Application: Industrial, commercial, construction sites

Final note

For professionals who value speed and reliability, the Bals 110646 INNOLINQ QC socket is a smart upgrade that pays for itself in saved labour and reduced downtime.
