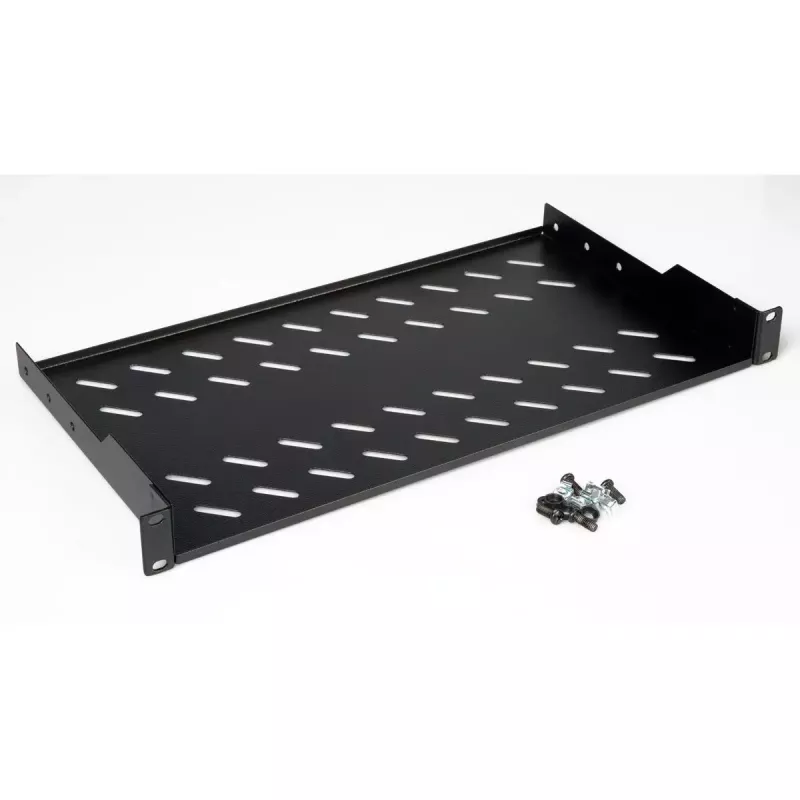

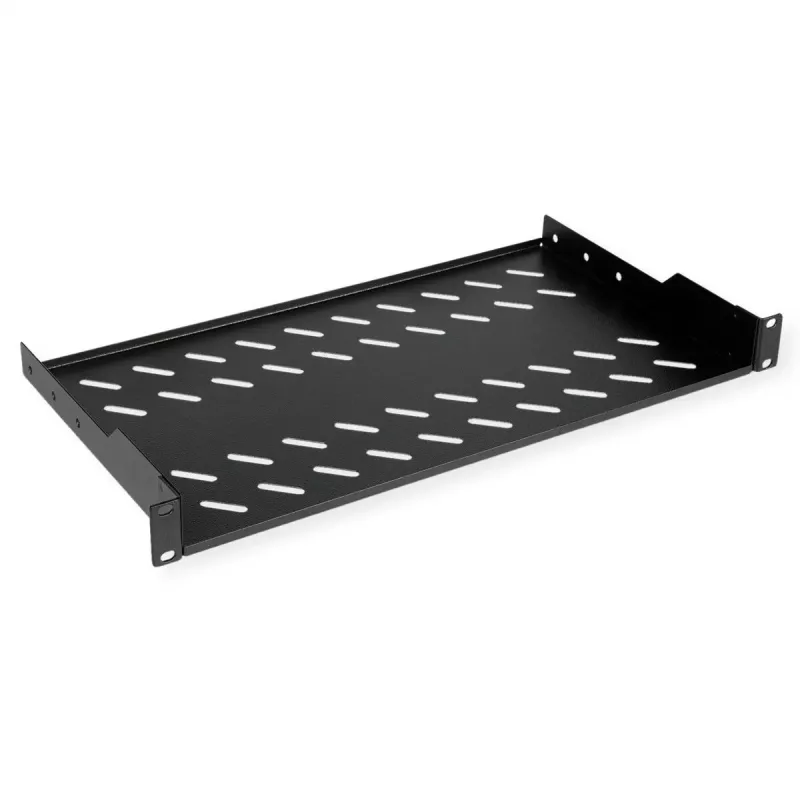

Bandeja rack ROLINE 19" 1U 250 mm de profundidad 15 kg negro

The ROLINE 19-inch 1U rack shelf (250 mm depth, 15 kg load) is a compact steel shelf designed to fit into the front 19" profile rails of standard 19" network and server enclosures. It provides a stable, perforated surface for storing components that are not intended for direct 19" mounting. The shelf measures 485 mm wide and 45 mm high and is finished in black.

Advantages

The shelf is made of robust steel with a high-load perforated plate that improves ventilation and secures equipment. It is compatible with standard 19" profile rails and integrates with enclosures that feature galvanised, depth-adjustable rails and depth braces. The construction supports common cabinet features such as powder-coated surfaces and modular, lockable side panels and doors.

Suitable for

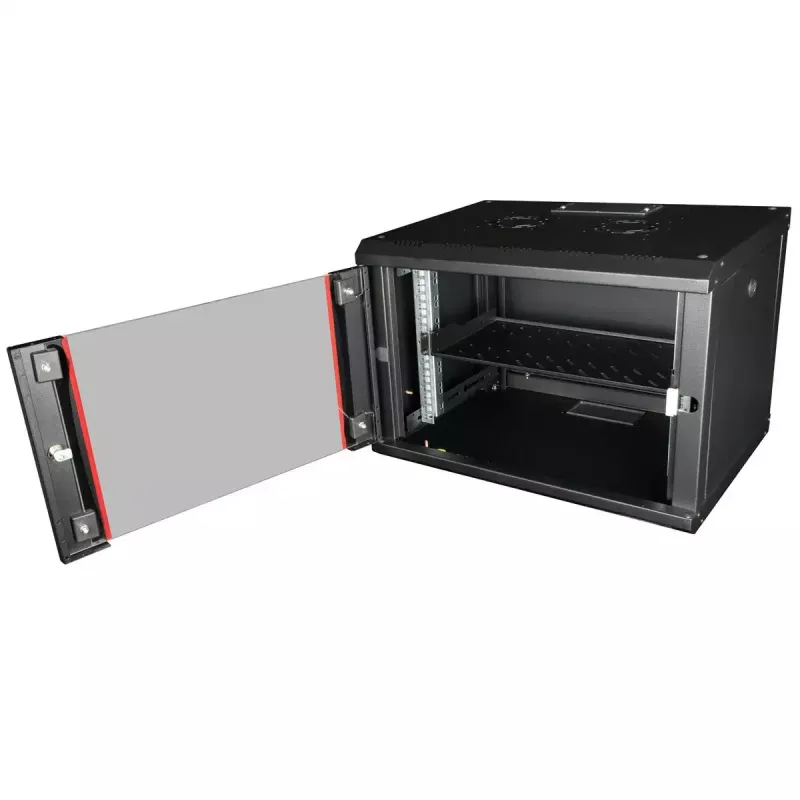

• Holding non-rackable equipment and accessories in 19" racks
• Organising small servers, power supplies, or network peripherals
• Temporary placement of tools or components during installation and maintenance

Key specifications

• Brand: ROLINE
• Model: 19-inch 1U rack shelf
• MPN: 26.21.0121
• EAN: 7630049601246
• Width: 485 mm
• Height: 45 mm (1U)
• Depth: 250 mm
• Max load: 15 kg
• Material: Steel, perforated plate
• Colour: Black (RAL 9005)

How to use

Mount the shelf into the front 19" profile rails of your rack or server enclosure at the desired U position. Ensure the enclosure rails are compatible and that depth adjustment is set so the shelf sits securely. Place items onto the perforated steel surface, taking care not to exceed the 15 kg maximum load. For maintenance or reconfiguration, the shelf can be removed by detaching it from the profile rails.

Recommendations

Use the shelf for compact or irregularly shaped devices that cannot be directly mounted on 19" equipment rails. Distribute weight evenly and avoid placing heavy concentrated loads near the front edge. Pair with appropriate cable management and secure loose components to maintain airflow and safety.
