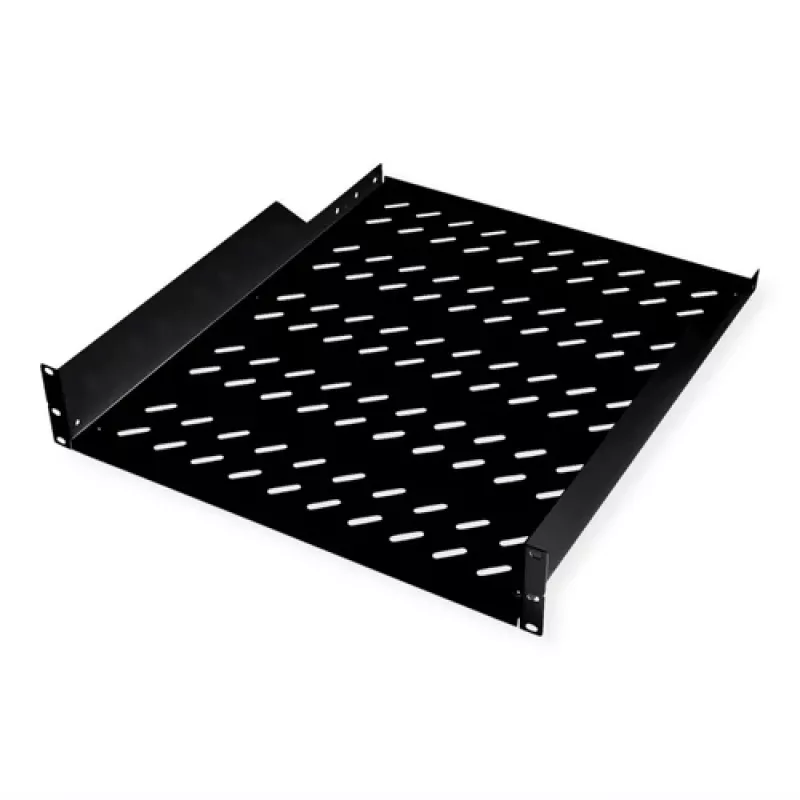

Bandeja rack ROLINE 19" 2U 550 mm capacidad de carga 25 kg negro

The ROLINE 19-inch 2 U 550 rack shelf is designed for integration into the front 19" profile rails of standard 19" network or server enclosures. Constructed from sturdy perforated steel with a black finish, the shelf provides a durable storage surface for components that cannot be mounted directly in a 19" rack. Its outer width is 482 mm, depth 549 mm and height 88 mm, and it supports a load capacity up to 25 kg.

Advantages

The shelf’s robust steel construction and perforated design offer high load capacity and good airflow around stored equipment. Its standard 19" compatible mounting makes installation straightforward in most racks and enclosures. The black finish provides a professional appearance while protecting the metal surface.

Suitable for

• Storing small network devices and peripherals that are not rack-mountable
• Placement of tools, power supplies, or external drives inside server cabinets
• Temporary or permanent support for hardware components in data centers and server rooms

Key specifications

• Brand: ROLINE
• Model: 19-inch 2 U 550 T
• Dimensions (W x D x H): 482 x 549 x 88 mm
• Mounting: fits front 19" profile rails
• Material: perforated steel
• Finish: black
• Load capacity: 25 kg
• MPN: 26.21.0192
• EAN: 7630049601956

How to use

Install the shelf into the front 19" profile rails of your rack or enclosure using the appropriate screws or cage nuts for 2 U mounting height. Position the shelf at the desired height and secure it firmly to prevent movement. Place equipment or components on the perforated metal surface, ensuring the total weight does not exceed the 25 kg load capacity and that heavier items are centered on the shelf.

Recommendations

Use the shelf for components that lack rack-mount brackets, avoid overloading beyond 25 kg, and maintain clearance for ventilation. For heavy or vibration-sensitive equipment, consider additional securing straps or mounting options to prevent shifting.
