Barra colectora Eaton Installation Euro-Vario 100A tripolar 16mm² 54TE EVG-16/3PH 291471

With a rated operational current of 100 A and a short-circuit withstand of 10 kA, the Eaton Euro-Vario busbar delivers robust power distribution in modular switchgear.

Overview

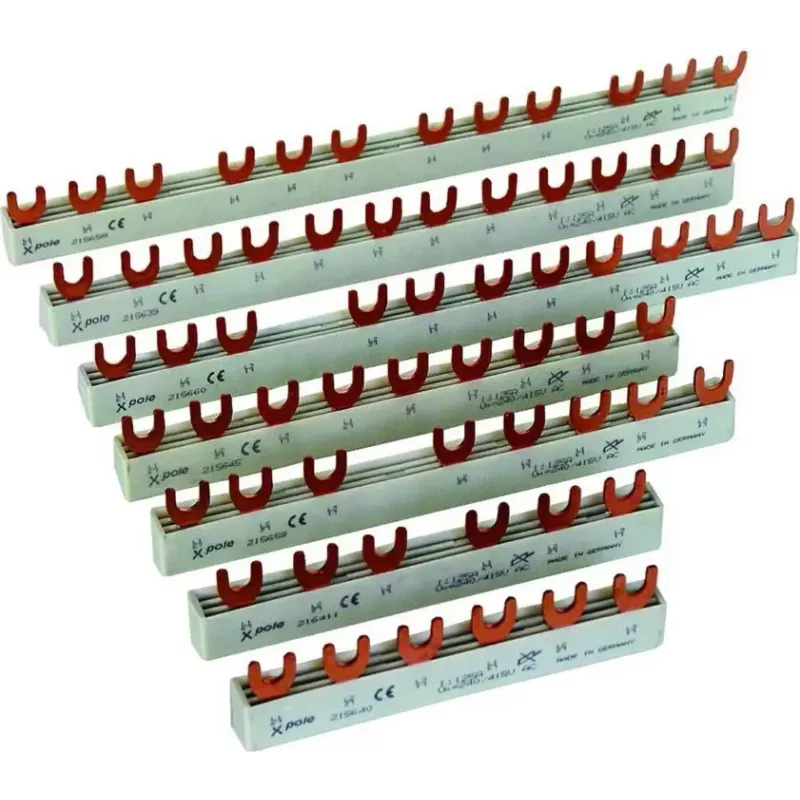

The Eaton Installation Euro-Vario Busbar EVG-16/3PH is a 3-pole busbar designed for DIN rail mounting. It features a 16 mm² conductor cross-section and accommodates up to 54 modules (TE), providing a total length of 972 mm. Rated for 400 V AC, this insulated busbar uses copper conductors with plastic insulation, ensuring safe and efficient power distribution.

What stands out

• High current capacity: 100 A rated operational current
• 3-pole configuration for three-phase distribution
• Generous capacity: 54 TE modules (972 mm length)
• Insulated design for enhanced safety
• DIN rail mounting for easy integration

Technical details

• Product type: Busbar
• Series: Euro-Vario
• Number of poles: 3
• Rated operational current (Ie): 100 A
• Conductor cross-section: 16 mm²
• Number of modules: 54 TE
• Length: 972 mm
• Rated voltage (AC): 400 V
• Mounting type: DIN rail
• Connection type: Pin type
• Insulation: Insulated
• Material: Copper conductors, plastic insulation
• Application: Power distribution in modular switchgear
• Compatibility: Modular devices with 1 TE (18 mm) width per pole
• Short-circuit withstand current (Icw): 10 kA (1 s)
• Operating temperature: -25 to +50 °C

Our verdict

A reliable and high-capacity busbar for professional electrical installations, offering excellent current handling and easy modular integration.
