Barra de puesta a tierra TechniSat 0000/5765

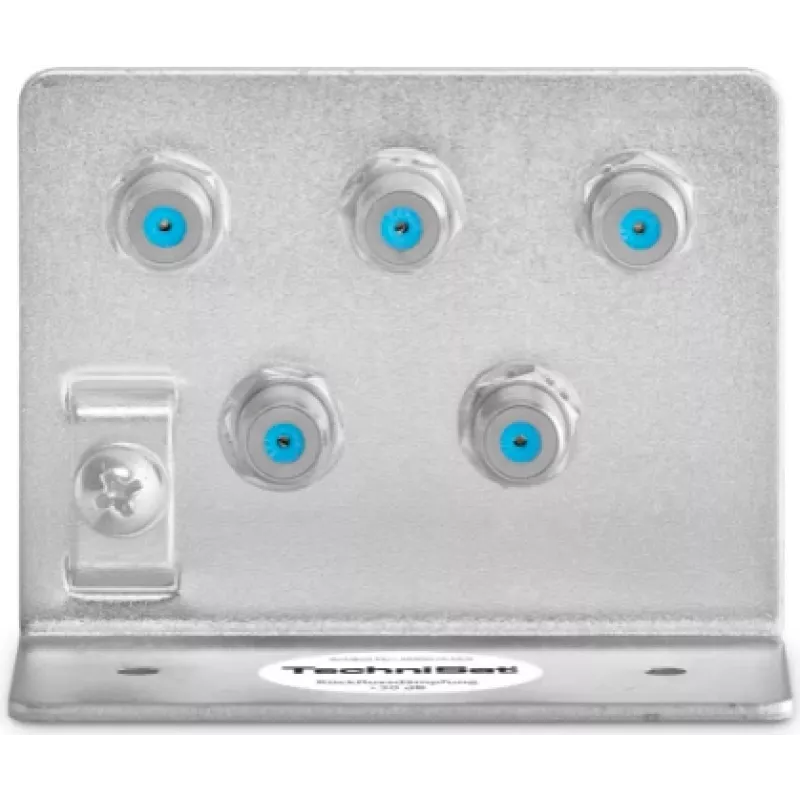

The TechniSat 0000/5765 earth bonding bar provides a reliable connection point for potential equalization of in- and outgoing antenna cables and additional components of a dish or small headend. Compact and grey, the accessory measures 78 mm × 60 mm × 40 mm and is supplied in a box sized 240 mm × 62 mm × 275 mm. It is intended to improve safety in SAT antenna installations by offering a secure grounding terminal.

Advantages

The earth bonding bar features high-quality F-double sockets with an excellent shielding attenuation of more than 30 dB and a double-allocatable grounding terminal that accepts grounding conductors up to 25 mm². Its compact dimensions and neutral grey colour allow unobtrusive installation in equipment cabinets or small headends. The unit is compatible with TechniSat F-compression and F-Self-Install™ connectors for secure coaxial cable connection.

Suitable for

• Potential equalization of in- and outgoing satellite antenna cables
• Grounding additional components of satellite dishes
• Small headend and distribution systems in residential or commercial installations

Key specifications

• Brand: TECHNISAT
• Model / MPN: 0000/5765
• EAN: 4019588057654
• Dimensions (W × D × H): 78 mm × 60 mm × 40 mm
• Package dimensions: 240 mm × 62 mm × 275 mm
• Weight: 0.16 kg
• Product colour: Grey
• F-socket attenuation: > 30 dB
• Ground terminal: double allocatable, up to 25 mm²

How to use

Mount the earth bonding bar in a suitable location near the antenna distribution or headend. Connect in- and outgoing coaxial cables to the F-double sockets using TechniSat F-compression connectors or F-Self-Install™ connectors for optimal contact. Attach the grounding conductor to the double-allocatable grounding terminal, ensuring the conductor size does not exceed 25 mm². Verify all connections and ensure the grounding conductor is routed to the building’s main earth according to local regulations.

Recommendations

For reliable performance and safety, use compatible TechniSat F-compression or F-Self-Install™ connectors and follow local electrical codes when bonding the TechniSat 0000/5765 earth bonding bar to the building ground.
