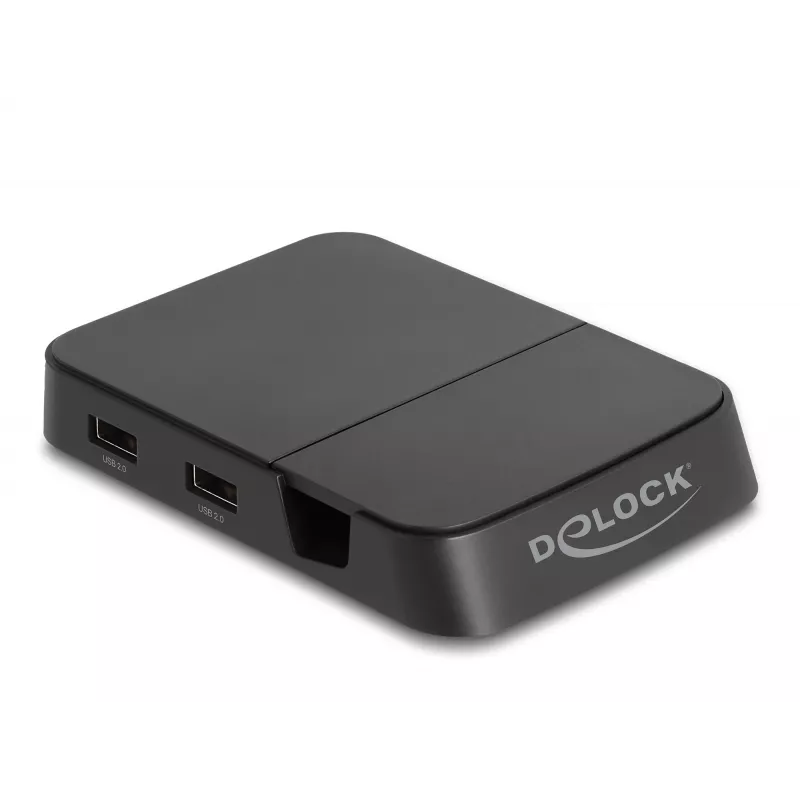

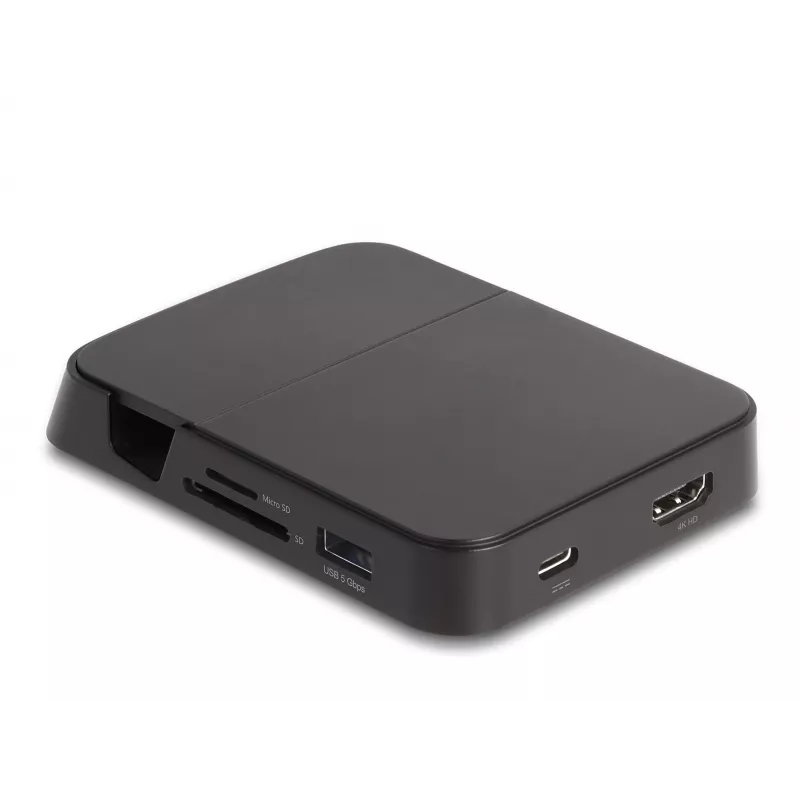

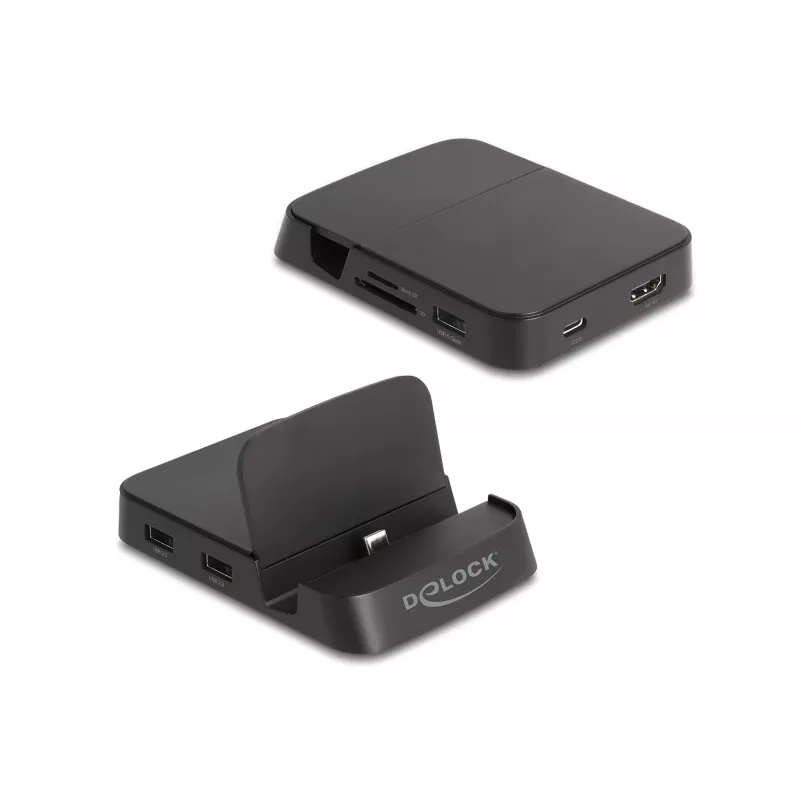

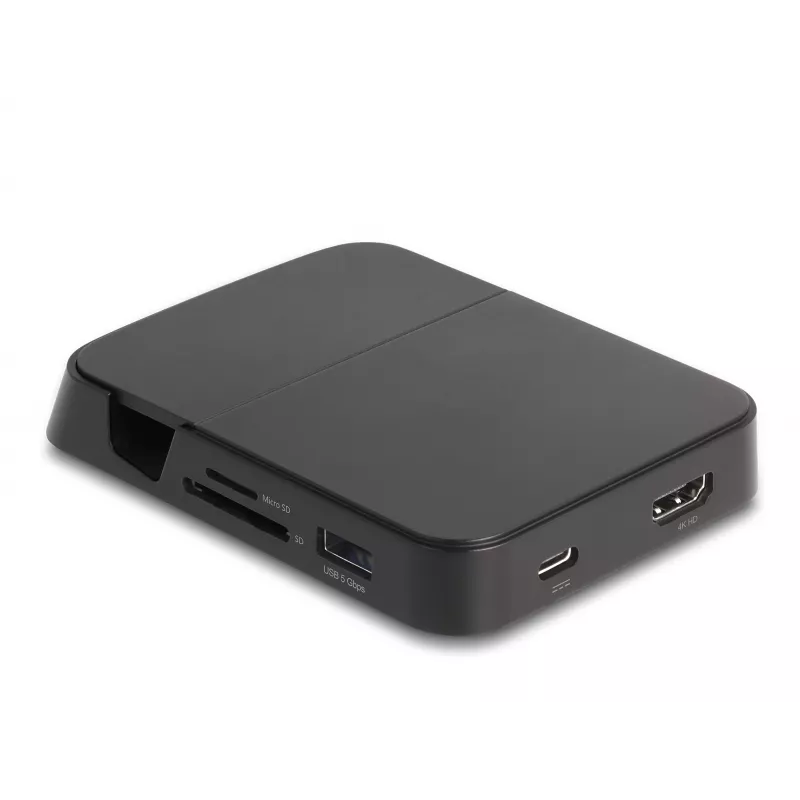

Base de acoplamiento para smartphone DeLOCK 88018

This Delock smartphone docking station converts a compatible Android phone into a desktop-like workstation, suitable for use at home, office, or while traveling. It provides multiple interfaces for peripherals and external displays, enabling expanded connectivity through a single USB Type-C connection.

Advantages

The dock offers three plug-and-play USB Type-A ports, an HDMI output supporting up to 4K at 30 Hz, and both SD and microSD card slots for external storage. It supports low power mode to draw power from the connected smartphone, and can alternatively be powered using the smartphone power adapter to supply more power or reduce load on the phone. Setup requires no drivers on compatible devices.

Key specifications

• Manufacturer: Delock
• Interfaces: 3 × USB Type-A (plug & play), 1 × HDMI output
• Memory card slots: 1 × SD, 1 × microSD
• HDMI output maximum resolution: up to 4K @ 30 Hz
• Power: low power mode (bus-powered from phone) or external smartphone power adapter
• Compatibility: Android smartphones with USB 5 Gbps (USB 3.1/3.x) via USB Type-C and DisplayPort Alternate Mode

How to use

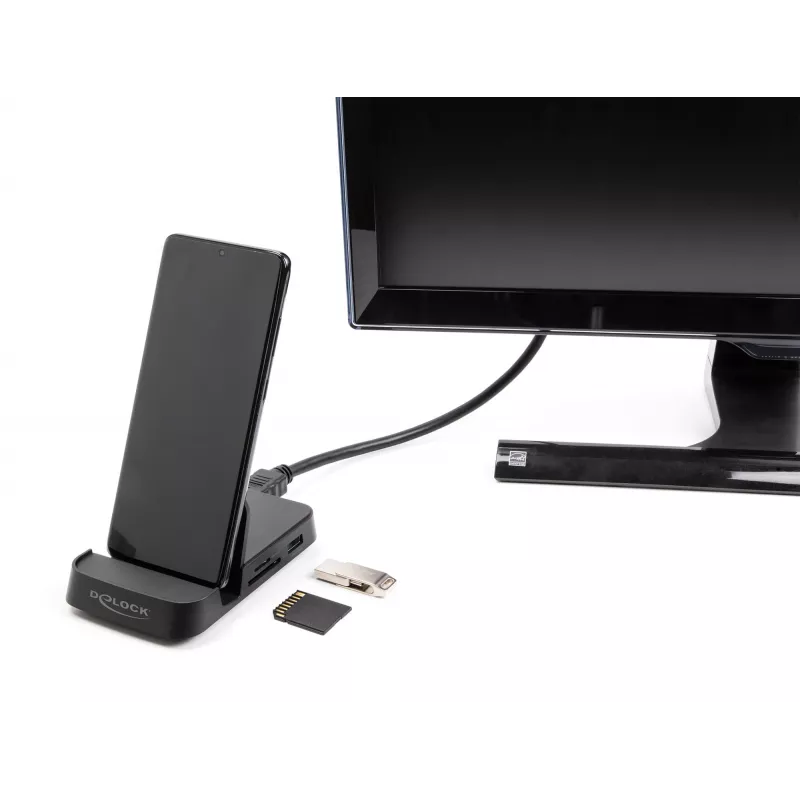

Connect the docking station to the smartphone using a compatible USB Type-C cable. Attach peripherals such as keyboard, mouse or external storage to the USB Type-A ports and insert SD or microSD cards into the respective slots. Connect an HDMI cable from the dock to a monitor or TV to mirror or extend the smartphone display at up to 4K 30 Hz. To provide additional power or reduce battery drain on the phone, plug the smartphone power adapter into the dock.

Recommendations

Before use, verify that your Android smartphone supports USB 5 Gbps data transfer and DisplayPort Alternate Mode over its USB Type-C port. Use a high-quality HDMI cable and, if needed, the phone’s original power adapter to ensure stable video output and sufficient power delivery.
