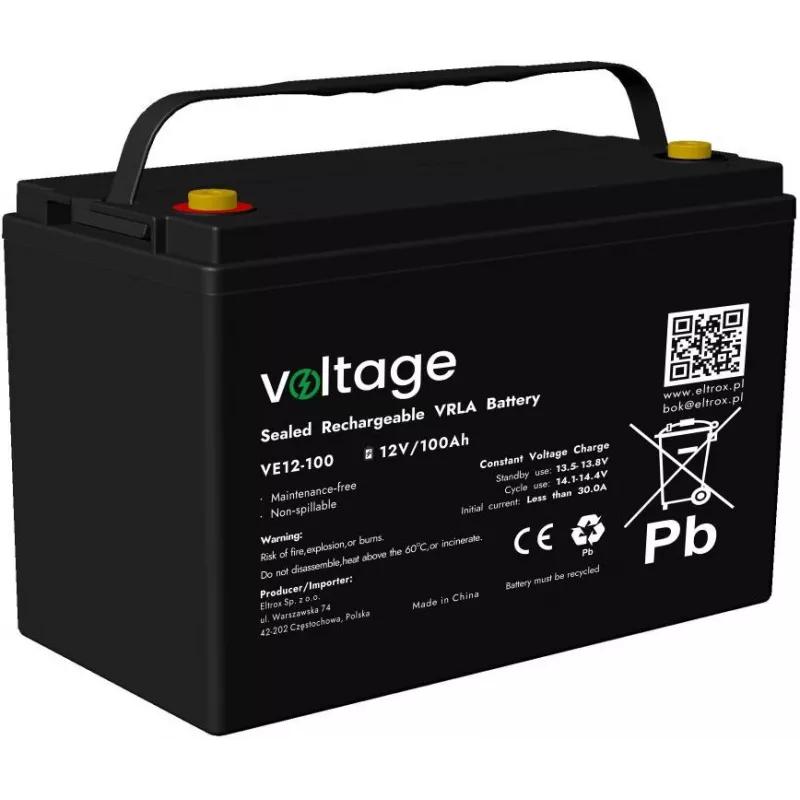

Batería VOLTAGE AGM 12V 100Ah VE12-100 (vida útil de 6-9 años)

The VOLTAGE VE12-100 is a high-performance AGM (Absorbent Glass Mat) battery designed for reliable backup and cyclic applications. With a nominal voltage of 12V and a capacity of 100Ah (C10), this sealed, maintenance-free battery delivers consistent power for UPS systems, solar installations, telecommunications, emergency lighting, marine, and RV use. Its robust construction and 6-9 year design life (Eurobat General Purpose) ensure long-term dependability.

Advantages

Sealed and maintenance-free design eliminates the need for water refilling. Low self-discharge rate (less than 3% per month at 25°C) allows for extended storage. High discharge current capability (up to 1000A for 5 seconds) supports demanding loads. Durable ABS container (UL94-HB) provides impact resistance. Wide operating temperature range (-20°C to 50°C) suits various environments.

Suitable for

• UPS (Uninterruptible Power Supplies)
• Solar power systems
• Telecommunications equipment
• Emergency lighting
• Marine and RV applications

Key specifications

• Battery Type: AGM (Absorbent Glass Mat)
• Nominal Voltage: 12V
• Nominal Capacity: 100Ah (C10)
• Design Life: 6-9 Years
• Terminal Type: M8 Bolt (T11)
• Max. Discharge Current: 1000A (5s)
• Max. Charge Current: 30A
• Float Charge Voltage: 13.5V - 13.8V @ 25°C
• Cycle Use Voltage: 14.4V - 14.7V @ 25°C
• Internal Resistance: Approx. 4.5 mΩ
• Operating Temperature (Discharge): -20°C to 50°C
• Operating Temperature (Charge): -10°C to 50°C
• Operating Temperature (Storage): -20°C to 50°C
• Self-Discharge Rate: <3% per month @ 25°C
• Container Material: ABS (UL94-HB)
• Electrolyte: Sulfuric Acid (immobilized)
• Construction: Sealed, Maintenance-Free
• Number of Cells: 6
• Certifications: CE, RoHS

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Store in a cool, dry place. Ensure proper ventilation during charging. Always follow manufacturer guidelines for installation and maintenance.
