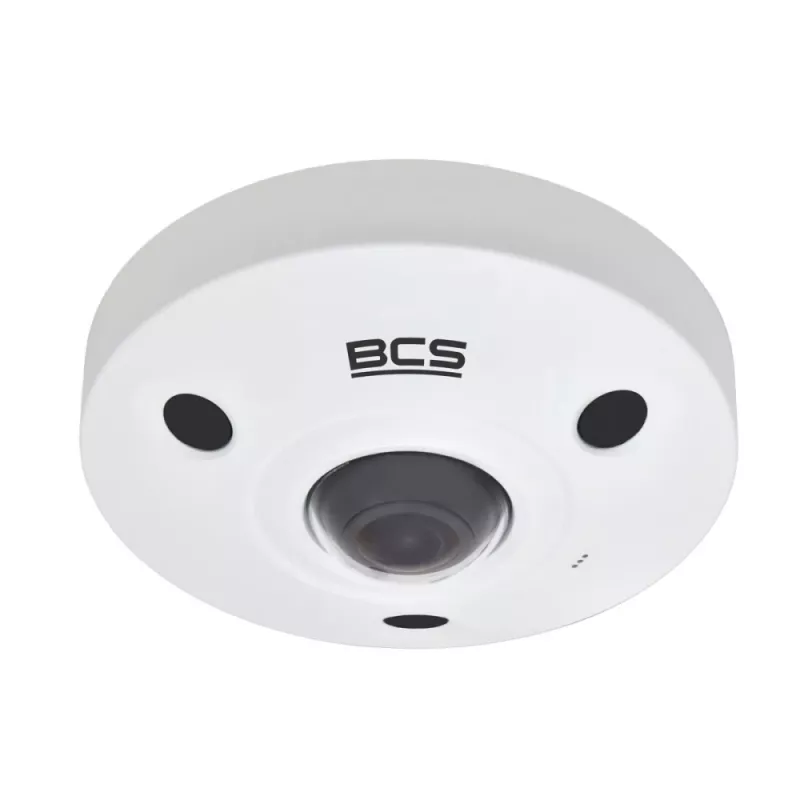

BCS 12MP Cámara IP fisheye BCS-L-FIP512FR1-Ai2

With a 12-megapixel 1/1.7" progressive scan CMOS sensor and a 185° fisheye lens, this camera delivers 4000 x 3000 resolution with true panoramic coverage. H.265+ compression, 120dB True WDR, and built-in AI analytics make it a powerful surveillance tool for demanding environments.

Overview

The BCS-L-FIP512FR1-Ai2 is a high-resolution fisheye IP camera engineered for comprehensive area coverage. Its 1.98mm lens captures a full 185° field of view, eliminating blind spots and reducing the number of cameras required. The camera supports 25/30 fps at maximum resolution, ensuring smooth video even in fast-moving scenes. With an IP67 and IK10 rated housing, it withstands harsh weather and vandalism, making it suitable for both indoor and outdoor installations.

What stands out

• 12MP resolution with 185° fisheye lens for complete panoramic views
• Advanced AI functions: heat map, people counting, intrusion, tripwire, object abandoned/missing, face detection
• 120dB True WDR for clear images in challenging lighting
• Built-in microphone plus audio input/output for two-way communication
• PoE (802.3af) support for simplified installation
• MicroSD slot for local storage up to 256GB

Technical details

• Sensor: 1/1.7" 12MP Progressive Scan CMOS
• Max resolution: 4000 x 3000 (12MP)
• Frame rate: 25/30 fps @ 12MP
• Lens: 1.98mm, F2.0, fisheye
• Field of view: 185° (H/V/D)
• IR range: up to 10m
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio: built-in mic, 1 in, 1 out
• Network: 1x RJ-45 10/100Base-T
• Power: DC 12V / PoE (802.3af)
• Operating temperature: -30°C to +60°C
• Ingress protection: IP67, IK10
• ONVIF: Profile S/G/T

Our verdict

The BCS-L-FIP512FR1-Ai2 combines ultra-wide coverage with high-resolution imaging and intelligent analytics, making it an excellent choice for retail, hospitality, and industrial surveillance where every corner matters.
