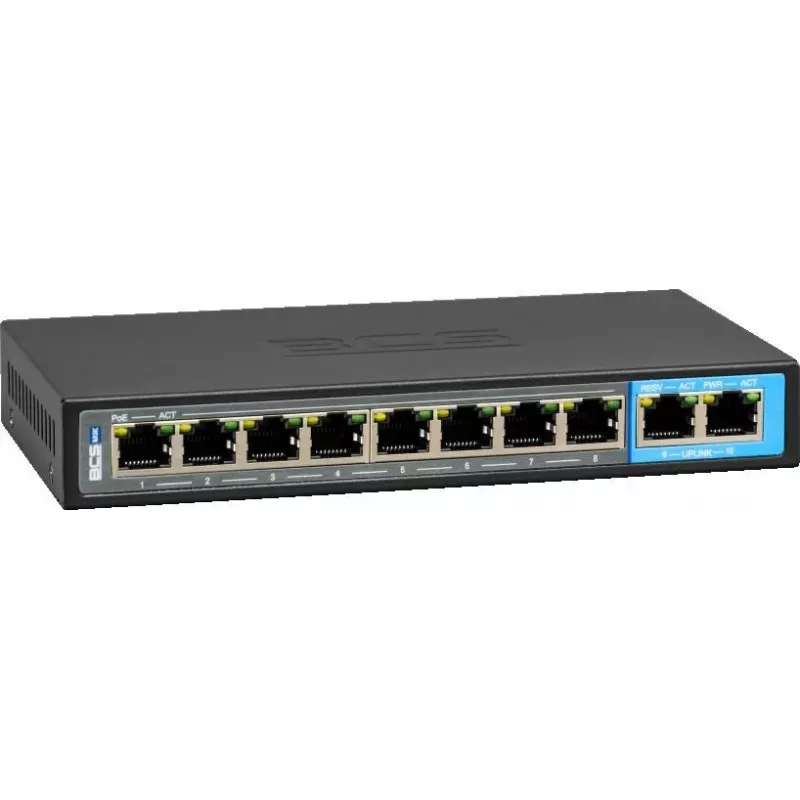

BCS BCS-B-SP0802G switch PoE+ de 8 puertos con 2 uplink Gigabit, 120 W, no gestionado

The BCS BCS-B-SP0802G is a high-performance unmanaged PoE+ switch designed for IP camera surveillance systems. With 8 Fast Ethernet PoE+ ports and 2 Gigabit uplink ports, it delivers reliable power and data connectivity for up to 8 cameras or other PoE devices. The switch provides a total PoE budget of 120W, with up to 30W per port, supporting IEEE 802.3af/at standards. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments. The switch is easy to install on a desktop or wall, and features LED indicators for power, link/activity, and PoE status.

Advantages

This switch simplifies network deployment by combining data and power over a single Ethernet cable, eliminating the need for separate power outlets for each camera. The 2 Gigabit uplink ports ensure high-speed data transfer to the network backbone, while the 120W PoE budget supports a mix of standard and high-power devices. The fanless design enhances reliability and reduces maintenance, and the 6KV surge protection on PoE ports safeguards against electrical spikes.

Suitable for

• IP camera surveillance systems (up to 8 cameras)
• Small to medium business networks
• Retail stores, offices, and warehouses
• Wireless access point deployments
• VoIP phone systems

Key specifications

• 8 x 10/100 Mbps PoE+ ports (IEEE 802.3af/at, up to 30W per port, total 120W)
• 2 x 10/100/1000 Mbps uplink ports
• Switching capacity: 5.6 Gbps
• Packet forwarding rate: 4.17 Mpps
• MAC address table: 2K
• Unmanaged plug-and-play operation
• External power supply: DC 52V, 2.3A (AC 100-240V, 50/60Hz)
• Fanless design for silent operation
• Desktop or wall-mountable
• Operating temperature: -10°C to 55°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 5% to 95% non-condensing
• Surge protection: 6KV on PoE ports

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. Ensure the total PoE power consumption of connected devices does not exceed 120W. The switch is plug-and-play; no configuration is required.
