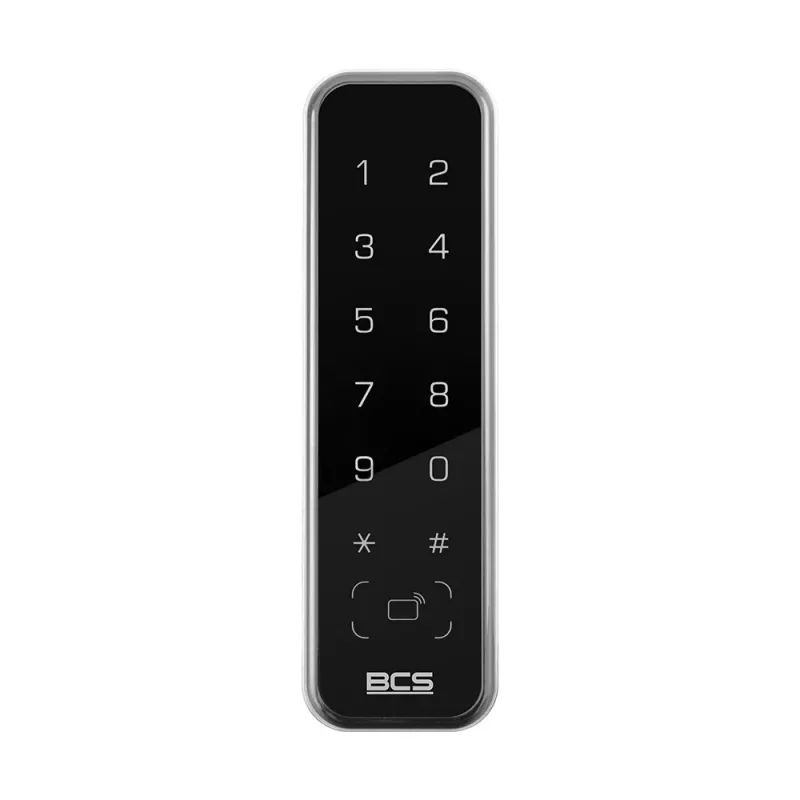

BCS BCS-L-CKRS-M8Z Lector RFID RS485, Mifare, 13,56 MHz, IP65, Negro/Gris

The BCS BCS-L-CKRS-M8Z is a high-performance RFID reader designed for access control systems. It communicates via RS485 and supports Mifare Classic and DESFire cards at 13.56 MHz. With a reading range of 3-6 cm and IP65 protection, it is suitable for indoor and outdoor use.

Advantages

Reliable and secure access control with Mifare technology. RS485 interface ensures stable communication over long distances. Compact surface-mount design with LED and buzzer indicators for user feedback.

Suitable for

• Access control systems in offices, buildings, and facilities
• Time and attendance tracking
• Secure entry points requiring Mifare card support

Key specifications

• Product Type: RFID Reader
• Communication Interface: RS485
• RFID Technology: Mifare
• Operating Frequency: 13.56 MHz
• Supported Card Types: Mifare Classic, Mifare DESFire
• Reading Range: 3-6 cm
• Output Protocol: Wiegand 26/34
• Power Supply: DC 9-15V
• Current Consumption: < 80mA
• Operating Temperature: -20°C to +50°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Ingress Protection: IP65
• Material: ABS Plastic
• Indicators: LED (Red/Green/Blue), Buzzer
• Mounting Type: Surface Mount
• Color: Black/Grey

Recommendations

For optimal performance, use with a compatible RS485 controller and ensure proper power supply within 9-15V DC. Suitable for indoor and outdoor installations with IP65 protection.
