BCS BCS-UPS/IP4/Z/E-S sistema SAI 230V AC a 12V DC 4A 4 salidas montaje en pared

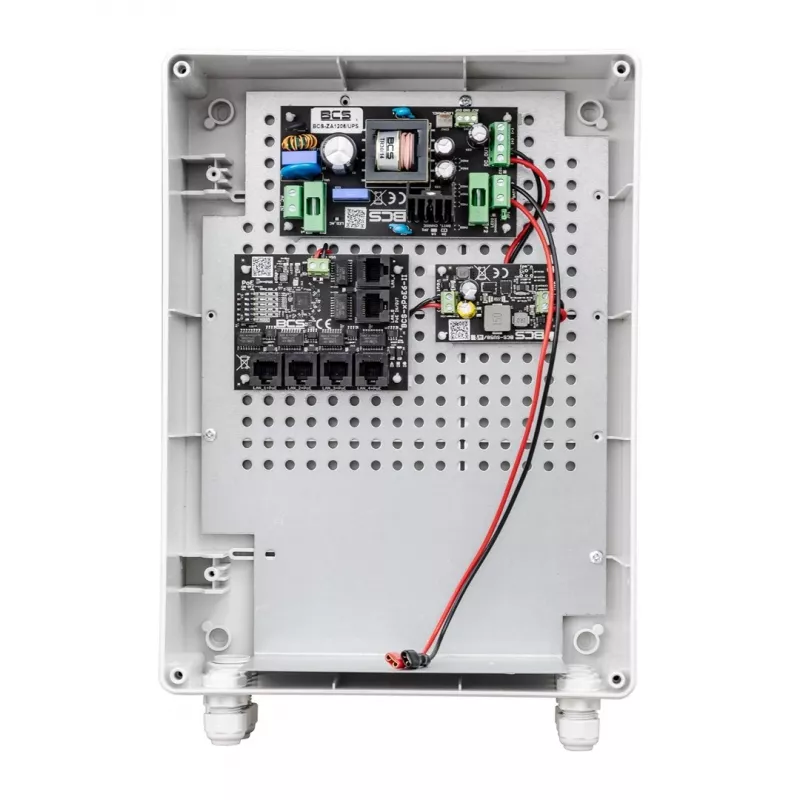

The BCS BCS-UPS/IP4/Z/E-S is a professional-grade uninterruptible power supply system designed for security and access control applications. It converts 230V AC input to a stable 12V DC output, providing reliable backup power for CCTV systems, access control panels, and other security equipment. With a total output current of 4A and four individually protected outputs, this unit ensures continuous operation even during mains power failures.

Advantages

This UPS system offers robust protection against power interruptions, safeguarding critical security infrastructure. Its wall-mountable design saves space, while the steel enclosure with IP40 rating ensures durability and protection against dust and small particles. The unit supports external lead-acid batteries (AGM/GEL) from 17Ah to 24Ah, allowing extended backup times tailored to your needs. LED indicators provide clear status updates for AC presence, battery status, and output status.

Suitable for

• CCTV systems requiring uninterrupted power
• Access control systems and security panels
• Network equipment in security applications
• Any 12V DC device needing backup power

Key specifications

• Input: 230V AC, 50 Hz
• Output: 12V DC, 4A total (max)
• Number of outputs: 4 (screw terminals)
• Battery compatibility: Lead-acid (AGM/GEL), 17-24Ah (external, not included)
• Battery charging current: 0.5A
• Enclosure: Steel, IP40
• Mounting: Wall-mounted
• Protection: Overload, short circuit, overcharge, deep discharge
• Operating temperature: -10°C to +40°C
• Cooling: Passive (fanless)

Recommendations

For optimal performance, pair this UPS with a compatible 12V lead-acid battery (17-24Ah) from a reputable manufacturer. Ensure proper wall mounting in a dry, ventilated area. Regularly check LED indicators and test battery functionality to maintain reliability.
