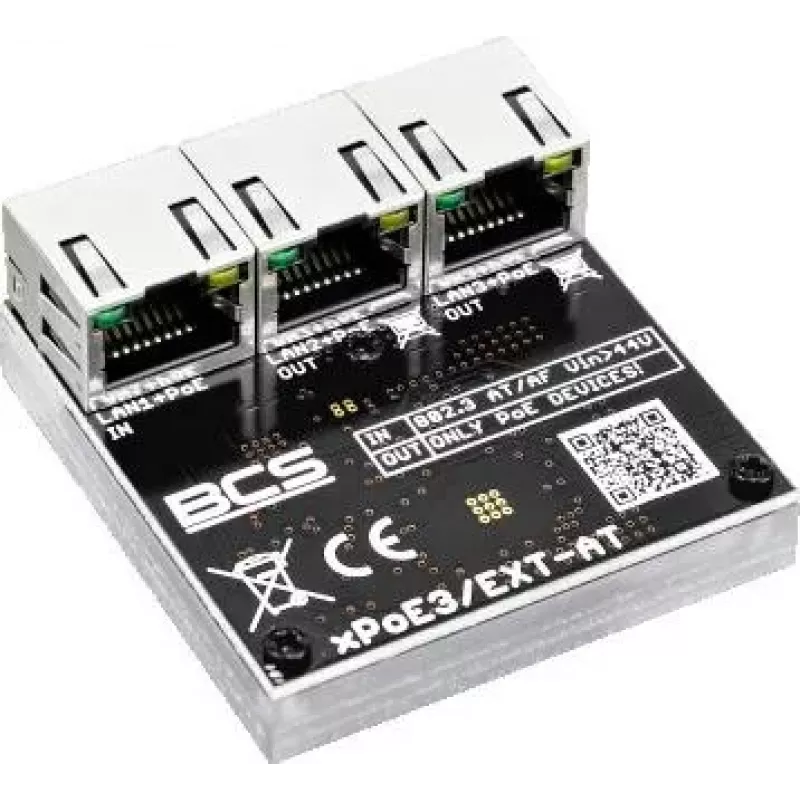

BCS BCS-xPoE3/EXT-AT Switch PoE+ de 3 puertos, 2x PoE+ 30W, 1x Uplink, 250m EXTEND, Metal

The BCS BCS-xPoE3/EXT-AT is a compact and robust 3-port PoE+ switch designed for extending network and power to remote devices. With 2 PoE+ ports delivering up to 30W each and a total budget of 60W, it supports IEEE 802.3af/at standards. The dedicated uplink port and EXTEND mode enable data transmission up to 250 meters, making it ideal for IP cameras, access points, and other powered devices in challenging environments.

Advantages

This switch offers exceptional value with its extended transmission distance, metal housing for durability, and versatile mounting options. The plug-and-play design with three operating modes (Standard, VLAN, EXTEND) allows easy deployment without complex configuration. Its compact size and wall-mount capability save space, while the 60W PoE budget ensures reliable power to multiple devices.

Suitable for

• IP surveillance systems requiring long-distance cabling
• Wireless access points in large areas
• Industrial or outdoor installations where extended reach is needed
• Small office/home office networks with PoE devices

Key specifications

• 3 x 10/100Base-TX RJ-45 ports (2 PoE+, 1 uplink)
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Total PoE budget: 60W
• Extended mode: up to 250m transmission distance
• Switching capacity: 1 Gbps
• MAC address table: 1K entries
• Power supply: external DC 48-57V adapter
• Operating temperature: -10°C to 55°C
• Metal housing, desktop/wall-mountable

Recommendations

For optimal performance, use with compatible PoE devices and ensure adequate ventilation. The EXTEND mode is recommended for distances beyond 100m, but may reduce data speed to 10 Mbps. Always verify power requirements of connected devices to stay within the 60W budget.
