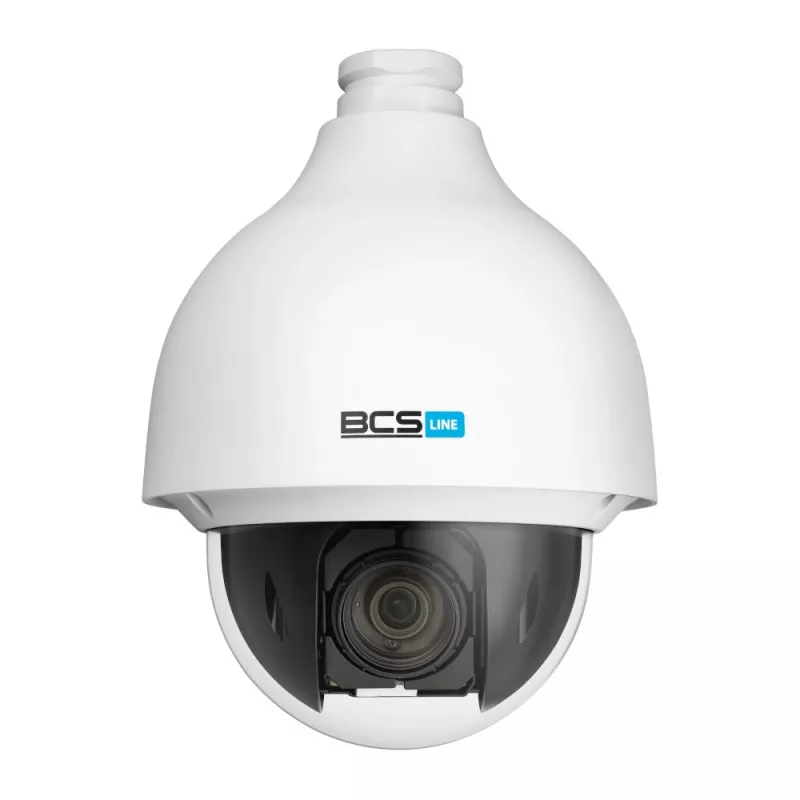

BCS-L-SIP2225S-Ai2 Cámara IP PTZ 2MP

The BCS-L-SIP2225S-Ai2 is a 2 MP IP PTZ camera from the BCS LINE series. It features a 1/2.8" PS CMOS sensor, SkyLight technology, and a 4.8~120 mm motorized zoom lens with 25x optical zoom. The camera supports WDR 120 dB, has an IP67 and IK10 housing, and includes built-in intelligent functions.

Key features

• 2 MP IP PTZ camera
• 1/2.8" PS CMOS sensor
• SkyLight technology
• Motorized zoom lens 4.8~120 mm
• 25x optical zoom
• WDR 120 dB
• Alarm 2/1, audio 1/1
• IP67, IK10 housing
• Built-in intelligent functions

Specifications

• Model: BCS-L-SIP2225S-Ai2
• Product line: BCS LINE
• Camera type: PTZ
• Resolution: 2 MP
• Sensor: 1/2.8'' CMOS
• Scanning system: Progressive Scan
• Pixels: 1920(H)×1080(V)
• RAM: 512MB
• ROM: 128MB
• Lens: motorized zoom
• Focal length: 4.8~120 mm
• Aperture: F 1.6~3.5
• Focus: Auto / manual
• Iris: Auto / manual
• Optical zoom: 25×
• Digital zoom: 16×
• Angle of view: H:58.5°~2.8° V:33.2°~1.5° D:67.5°~3.2°
• DORI: Detect 1655m / Observe 654m / Recognize 331m / Identify 165m
• Camera sensitivity: 0.005Lux(Color,F1.6) 0.0005Lux(F1.6,B/W)
• S/N ratio: 55dB
• White balance: Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1/3~1/30000s
• Gain control (AGC): Auto / manual
• Noise reduction: 2D/3D DNR
• Image stabilization: Electronic (EIS)
• Defog: Electronic
• Image rotation: Flip 180°
• Number of streams: 3
• Resolutions: 2M(1920×1080) / 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
• Main stream: 1920×1080 / 1280×960 / 1280×720 (25/30fps)
• Second stream: 704×576 / 704×480 / 640×480 / 352×288 / 352×240 (25/30fps)
• Third stream: 1920×1080 / 1280×960 / 1280×720 (25/30fps)
• Bitrate: H.264: 2048 kbps-8192 kbps H.265: 768 kbps-6400 kbps
• Video compression: H.265 / H.265+ / H.264+ / H.264 / MJPEG
• Day/night: ICR mechanical infrared filter
• Audio input: 1
• Audio output: 1
• Audio compression: G.711A / G.711Mu / G.726 / G.722.1 / G.723 / G.729 / PCM / MPEG2-L2
• Alarm input: 2
• Alarm output: 1
• Memory card slot: microSD 512GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4
• Privacy masks: 24
• Network: RJ-45 10/100 Mbps
• Compliance: ONVIF(S/G/T)
• Protocols: TCP, FTP, RTMP, IPv6,Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, IP Filter, SMB, HTTP, SSL, DHCP, SMTP, SNMPv1/v2c/v3(MIB-2), Qos, RTSP, ARP
• Power supply: 24VDC / PoE(802.3at)
• Power consumption: max 16W
• Housing color: White
• Ingress protection: IP67
• IK10: Yes
• Surge protection: TVS 6kV
• Operating conditions: -40°C~+70°C max 95% RH
• Dimensions: Ø186×253mm
• Weight: 2.5 kg
• PAN speed: 0.1°/s~350°/s(500°/s preset)
• TILT speed: 0.1°/s~250°/s(500°/s preset)
• PAN range: 0°~360°
• TILT range: 0°~90° auto-flip
• Auto tracking: Yes
• Automation functions: 300 presets, 8 routes(32 presets each), 5 paths, 5 scans
• Ai - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter protection: Area intrusion, line crossing, fast moving, loitering, crowd detection, parking detection
• Ai - Object recognition: Person/vehicle recognition for area intrusion, line crossing and fast moving reduces false alarms
• Ai - Face detection: Face detection and tracking, face capture, face attribute and expression recognition
• Ai - SMD: SMD 4.0
• Accessories included: Wall mount, adapter APTZ1, power supply 24VDC
