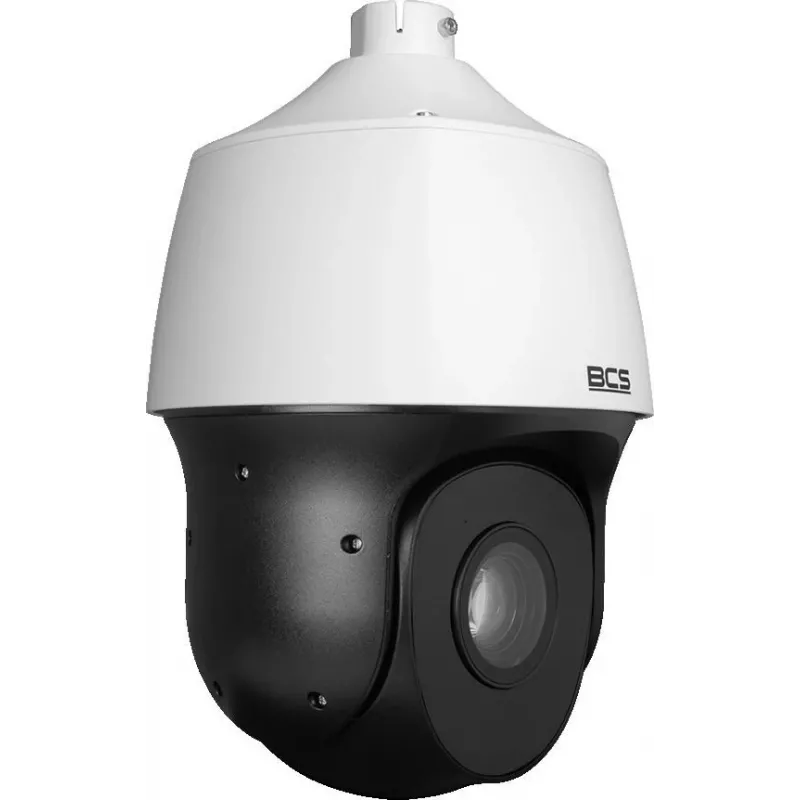

BCS Point BCS-P-SIP4233SR15-Ai2 cámara IP PTZ 2MP

The BCS Point BCS-P-SIP4233SR15-Ai2 is a 2MP IP PTZ camera with a 1/2.8" CMOS sensor and a 4.5–148.5 mm motorized zoom lens offering 33× optical zoom. It features IR illumination up to 150 m, H.265/H.264/MJPEG compression, and AI-based functions such as perimeter protection, object recognition, face detection, and people counting.

Key features

• 2MP resolution (1920×1080)
• 1/2.8" CMOS sensor with Progressive Scan
• Motorized zoom lens 4.5–148.5 mm, 33× optical zoom, 16× digital zoom
• IR LED illumination up to 150 m
• H.265 / H.265+ / H.264 / H.264+ / MJPEG video compression
• AI functions: perimeter protection, object recognition, face detection, people counting
• Auto tracking
• ONVIF (S/G/T) compliance
• microSD card slot up to 256GB
• 12VDC or PoE (802.3at) power

Specifications

• Product line: BCS POINT
• NDAA: Yes
• Camera type: PTZ
• Resolution: 2 Mpx
• Sensor: 1/2.8'' CMOS
• Scanning system: Progressive Scan
• Pixels: 1920(H)×1080(V)
• Lens: motorized zoom
• Focal length: 4.5~148.5 mm
• Aperture: F 1.5~F4.0
• Focus: Auto / manual
• Iris: Auto / manual
• Optical zoom: 33×
• Digital zoom: 16×
• Angle of view: H:56.23°~2.57° V:33.46°~1.44° D:69.16°~3.03°
• DORI: Detect 73~2188m / Observe 30~875m / Recognize 15~438m / Identify 7~219m
• Camera sensitivity: 0.001Lux(F1.5,AGC) 0Lux(B/W,IR)
• S/N ratio: 52dB
• White balance (AWB): Auto / manual
• WDR: 120dB
• Backlight compensation: BLC / HLC / WDR(120dB)
• Shutter: Auto / manual 1~1/100000s
• Gain control (AGC): Auto / manual
• Noise reduction: 2D/3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 3
• Resolutions: 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288)
• Main stream: 1920×1080 / 1280×720(25/30fps)
• Second stream: 1280×720 / 720×576 / 704×288 / 640×360 / 352×288(25/30fps)
• Third stream: 720×576 / 640×360 / 704×288 / 352×288 (25/30fps)
• Bitrate: 128Kbps~16Mbps
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED
• Illumination distance: 150m
• Audio input: 1
• Audio output: 1
• Audio compression: G.711U / G.711A
• Alarm input: 2
• Alarm output: 1
• Memory card slot: microSD 256GB
• Additional interfaces: RS485
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4
• Privacy masks: 24
• Network: RJ-45 10/100 Mbps
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
• Power supply: 12VDC / PoE(802.3at)
• Power consumption: max 25W
• Housing color: [not specified]
• IP protection class: [not specified]
• Surge protection: TVS 6kV
• Operating conditions: -40°C~+65°C max 95% RH
• Dimensions: Ø220mm×370mm
• Weight: 3.3 kg
• PAN speed: 2°/s~75°/s(180°/s preset)
• TILT speed: 2°/s~75°/s(80°/s preset)
• PAN range: 0°~360°
• TILT range: -15°~90° auto-flip
• Auto tracking: Yes
• AI - Built-in intelligent functions
• AI - Perimeter protection: Area intrusion, line crossing
• AI - Object recognition: Person/motor vehicle recognition for area intrusion, line crossing reduces false alarms
• AI - Face detection: Face detection and tracking, face capture
• AI - People counting: People counting for line crossing/area intrusion, counting entries, exits
• Accessories included: PTZ adapter, 12VDC power supply
