BCS-TA48VWR6-G(2) cámara

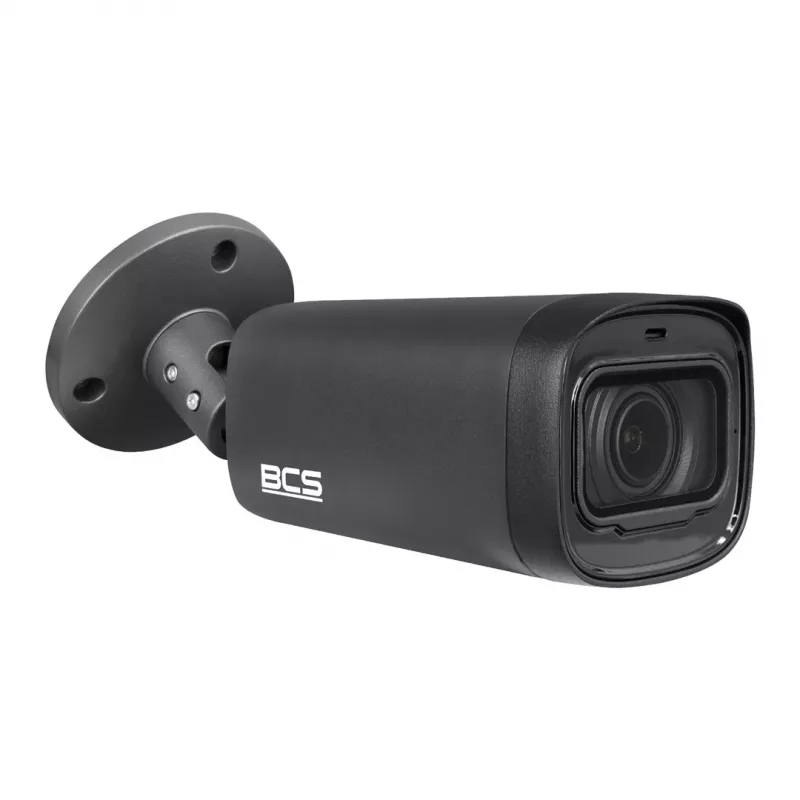

The BCS-TA48VWR6-G(2) is a tube-style analog HD camera from the BCS UNIVERSAL line, featuring an 8 Mpx 1/2.7" PS CMOS sensor and a 2.7~13.5 mm motorized zoom lens. It supports HD-CVI, AHD, HD-TVI, and analog CVBS transmission standards and includes a built-in microphone.

Key features

• 8 Mpx resolution
• 1/2.7" PS CMOS sensor
• Motorized zoom lens 2.7~13.5 mm
• HD-CVI / AHD / HD-TVI / CVBS
• WDR 120 dB
• IR range up to 60 m
• Built-in microphone
• IP67 housing

Specifications

• Model: BCS-TA48VWR6-G(2)
• Product line: BCS UNIVERSAL
• Camera type: Tube
• Transmission standard: HD-CVI / AHD / HD-TVI / ANALOG CVBS
• Resolution: 8 Mpx
• Sensor: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 3840(H)×2160(V)
• Lens: motorized zoom
• Focal length: 2.7~13.5 mm
• Aperture: F1.5
• Focus: Auto/manual
• Iris: Auto
• Optical zoom: 4×
• Angle of view: H: 114°~32° V: 58°~17° D: 138°~36°
• DORI: Detect 85~280 m / Observe 34~112 m / Recognize 17~56 m / Identify 9~28 m
• Camera sensitivity: 0.01 Lux (F1.5) 0.001 Lux (B/W, F1.5, 30IRE) 0 Lux (B/W, IR)
• S/N ratio: 65 dB
• White balance: Auto / manual
• WDR: 120 dB
• Backlight compensation: BLC / HLC / WDR (120 dB)
• Shutter: Auto / manual 1/25(30)s~1/100000s
• Gain control: Auto / manual
• Noise reduction: 3D DNR
• Defog: Electronic
• Image rotation: Mirror
• Resolutions: CVI: 8M (3840×2160)@15fps; 5M (2880×1620)@25fps; 4M (2560×1440)@25fps/30fps; 2M (1920×1080)@25/30fps; AHD/TVI: 8M (3840×2160)@15fps; CVBS: 960H (960×576/960×480)
• Day/night: ICR mechanical infrared filter
• Illuminator type: IR LED
• IR range: 60 m
• Microphone: Yes
• OSD menu settings via BCS-XVR recorder
• Privacy masks: 8
• Power supply: 12V DC
• Power consumption: max 11W
• Housing colour: Graphite
• IP rating: IP67
• Operating conditions: -30°~+60° max 95% RH
• Dimensions: 209.9×90.4×90.4 mm
• Weight: 0.55 kg
