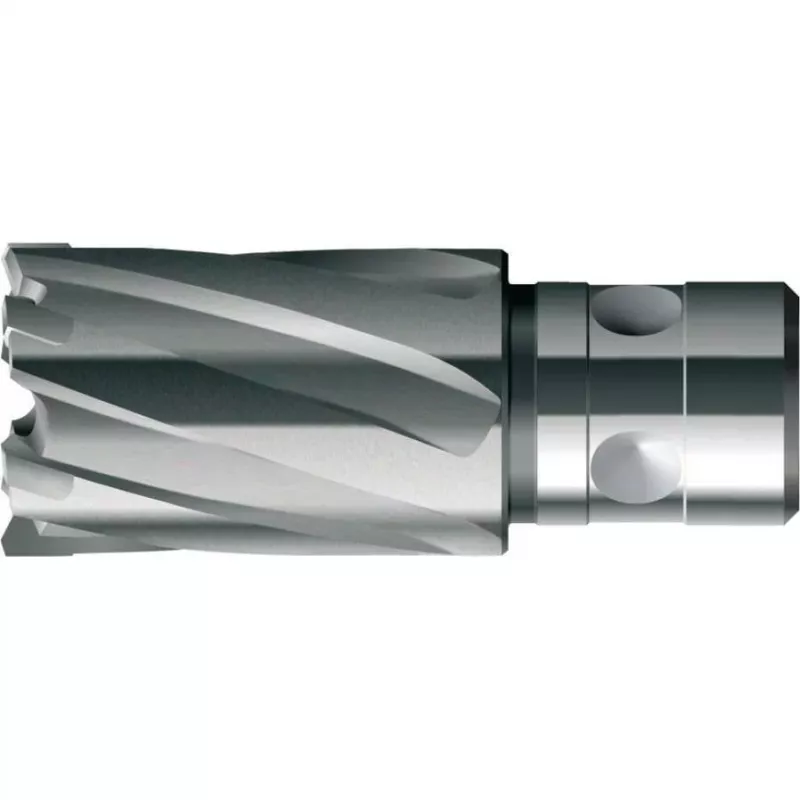

BDS broca de corona HM D16/35mm QuickIN (HKK-F016)

Annular cutter with tungsten carbide teeth for fast, precise hole making in steel and other metals. The 16 mm diameter and 35 mm cutting depth handle common plate and profile thicknesses in one pass, while the QuickIN shank allows tool-free changes on compatible BDS magnetic drilling machines.

Advantages

Brazed carbide tips deliver high wear resistance and extended tool life compared to high-speed steel cutters. Internal coolant channels direct fluid to the cutting zone, reducing heat and improving chip evacuation. The QuickIN system cuts downtime between holes, boosting productivity on repetitive jobs.

Suitable for

• Structural steel fabrication and erection
• Heavy equipment maintenance and repair
• Pipe and plate processing in workshops
• On-site drilling with BDS mag drills

Key specifications

• Cutting diameter: 16 mm
• Cutting depth: 35 mm
• Shank: QuickIN (tool-free)
• Cutting material: Tungsten carbide (HM)
• Application: Steel, stainless steel, cast iron, non-ferrous metals
• Coolant: Internal, requires external supply

Recommendations

Use with a suitable coolant and the recommended speed for the material. Verify QuickIN compatibility with your BDS machine model before ordering. For best results, secure the workpiece and apply steady feed pressure.
