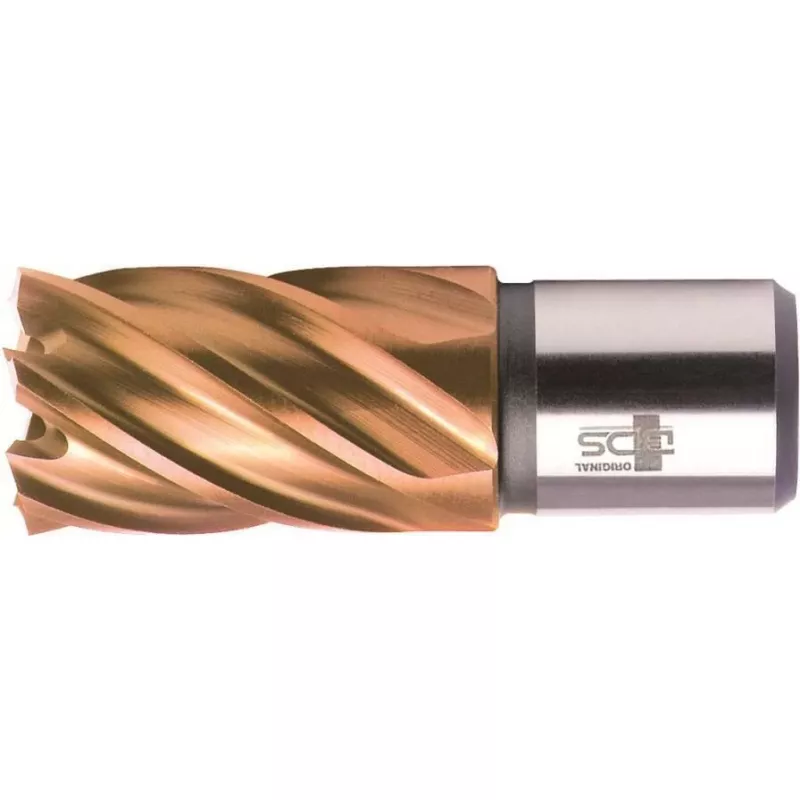

Broca de corona BDS HSSVarioPLUS 26 mm vástago Weldon, 30 mm de profundidad de corte KBK-VP026

This BDS HSSVarioPLUS annular cutter delivers clean, precise holes in steel and other metals with a 26 mm diameter and 30 mm cutting depth. The Weldon shank mounts directly to magnetic drills for stable, chatter-free operation, while the optimized tooth geometry and internal coolant channels keep cutting smooth and efficient.

Advantages

Precision-ground from high-speed steel with the VarioPLUS treatment, this core drill offers enhanced tool life and reduced vibration. The 19 mm Weldon shank ensures a secure fit, and the internal coolant delivery system improves chip evacuation and heat dissipation, resulting in faster cutting and longer edge retention.

Suitable for

• Steel and stainless steel
• Cast iron
• Non-ferrous metals
• Magnetic drilling machines and pillar drills with Weldon adapter

Key specifications

• Cutting diameter: 26 mm
• Cutting depth: 30 mm
• Shank type: Weldon, 19 mm (3/4 inch)
• Material: HSS-VarioPLUS high-speed steel
• Internal coolant delivery
• Precision ground for accuracy

Recommendations

Use with a suitable cutting fluid and ensure the magnetic drill is properly secured. For best results, apply steady pressure and avoid excessive feed rates to maximize cutter life.
