Behringer ZMX8210 V2 Mezclador de zonas para rack

With 8 input channels and 3 stereo outputs in a compact 1U rack unit, the Behringer ZMX8210 V2 delivers flexible zone mixing for commercial installations. Its +48V phantom power, paging with ducking, and remote volume control make it a powerful tool for multi-zone audio distribution.

Overview

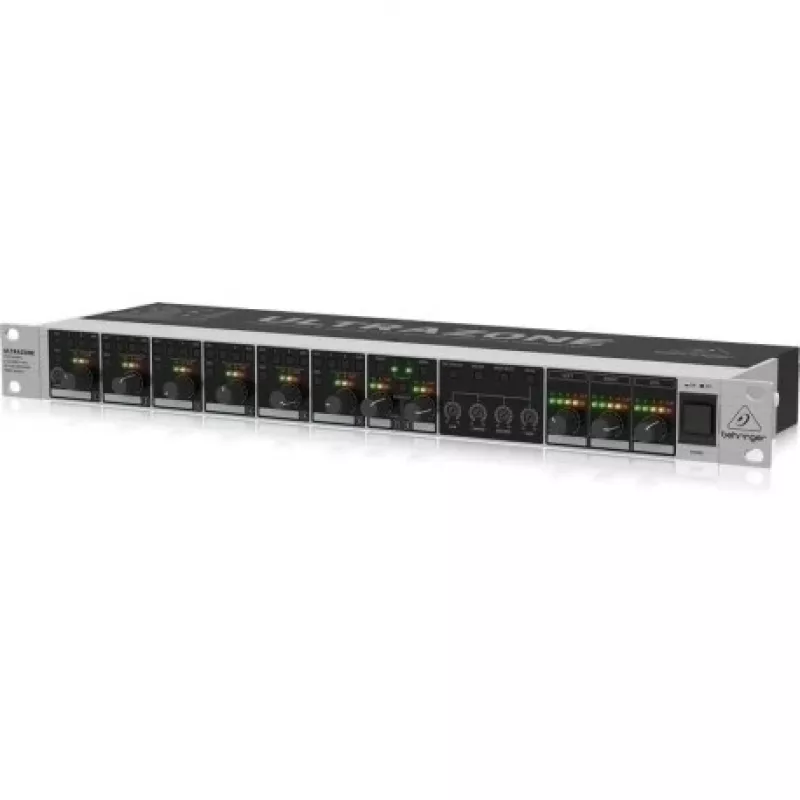

The ZMX8210 V2 is a rackmount zone mixer designed for background music and paging in restaurants, retail, offices, and houses of worship. It offers 6 mono inputs on combo XLR/TRS jacks (with switchable phantom power for condenser microphones) and 2 stereo RCA inputs, summing to 3 stereo XLR output zones. Each zone can independently select any mono input plus the stereo bus, with individual level control. A 4-band master EQ shapes the overall tone, while input level meters and master output meters provide visual monitoring. The internal switching power supply accepts 100-240V~, 50/60Hz for worldwide use.

What stands out

• 8 input channels (6 mono mic/line, 2 stereo line) for versatile source connectivity.
• 3 stereo output zones with independent source selection and level control.
• +48V phantom power on mono inputs for condenser microphones.
• Paging function with microphone input and automatic ducking of background music.
• Remote master volume control connector for external level adjustment.
• 4-band master EQ for precise tonal shaping.
• High-quality audio with <0.008% THD+N and >90 dB signal-to-noise ratio.
• Compact 1U rackmount design saves space in equipment racks.

Technical details

• Mixer type: Rackmount zone mixer
• Inputs: 6 x XLR/TRS combo jacks (mono), 2 x RCA pairs (stereo)
• Outputs: 3 x stereo XLR pairs
• Phantom power: +48V, switchable per mono input
• EQ: 4-band master EQ
• Frequency response: 20 Hz - 20 kHz (+0/-1 dB)
• THD+N: < 0.008% @ 1 kHz
• Signal-to-noise ratio: > 90 dB
• Input impedance: 2 kΩ (mic), 20 kΩ (line)
• Output impedance: 240 Ω balanced, 120 Ω unbalanced
• Crosstalk: < -70 dB @ 1 kHz
• Power supply: Internal switching, 100-240V~, 50/60Hz
• Rack size: 1U
• Remote control: Remote master volume connector
• Paging: Yes, with mic input and ducking

Our verdict

The Behringer ZMX8210 V2 is a reliable and flexible zone mixer that excels in commercial audio installations. Its combination of multiple inputs, independent zone outputs, paging, and remote control makes it an excellent choice for integrators and installers seeking a cost-effective solution without compromising on essential features.
