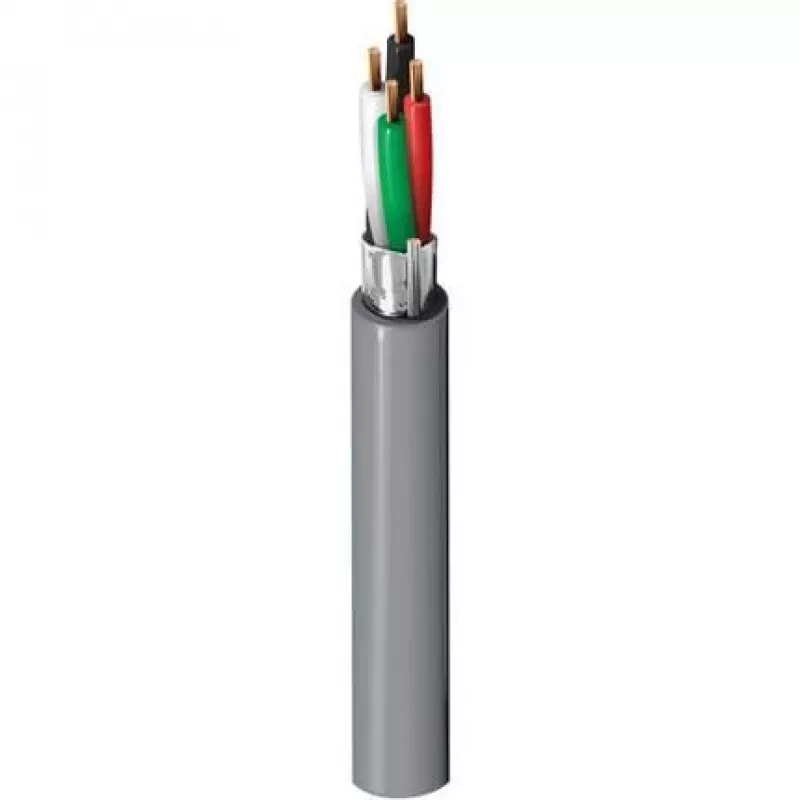

Belden Security & Sound, #22-4c BC, Cable multipolar apantallado, 4 conductores, 22 AWG, cobre desnudo, CMR, 300V, funda de PVC gris

Running low-voltage wiring for security systems, sound installations, or data links often means fighting noise, crosstalk, and unreliable connections. This Belden Security & Sound cable solves that with a Beldfoil® shield and drain wire that reject interference, while four 22 AWG bare copper conductors deliver clean, stable signals over long runs.

Who is it for

Installers and integrators who need a dependable multi-conductor cable for EIA RS-232/422 data, security sensors, or audio feeds in commercial and residential projects. It suits anyone who values proven Belden quality and a riser-rated jacket for in-wall vertical runs.

Main features

• 4 conductors, 22 AWG (7x30) bare copper for excellent conductivity and flexibility
• 100% Beldfoil® aluminum foil-polyester shield with 24 AWG tinned copper drain wire
• Polypropylene insulation for low capacitance: 23 pF/ft conductor-to-conductor, 41 pF/ft conductor-to-shield
• Grey PVC jacket, CMR riser rated for in-wall vertical installations
• 300V voltage rating, -20°C to +75°C temperature range
• Nominal impedance 75 Ohm, ideal for RS-232/422 and low-capacitance data

Specifications

• Cable type: Multi-conductor shielded
• Conductor gauge: 22 AWG
• Number of conductors: 4
• Conductor material: Bare copper
• Conductor stranding: 7x30
• Insulation material: Polypropylene (PP)
• Shield type: Overall Beldfoil® (aluminum foil-polyester tape)
• Shield coverage: 100%
• Drain wire: 24 AWG tinned copper
• Jacket material: PVC
• Jacket colour: Grey
• Nominal outer diameter: 4.83 mm (0.190 in)
• Voltage rating: 300V
• Temperature rating: -20°C to +75°C
• Nominal capacitance (conductor-to-conductor): 23 pF/ft
• Nominal capacitance (conductor-to-shield): 41 pF/ft
• Flame rating: UL Type CMR (Riser)
• Primary applications: EIA RS-232/422, security, sound, low-capacitance data

Tips

Pair this cable with Belden connectors and termination tools for a reliable, noise-free installation. For outdoor or direct burial use, consider a cable with a UV-resistant or gel-filled jacket.
