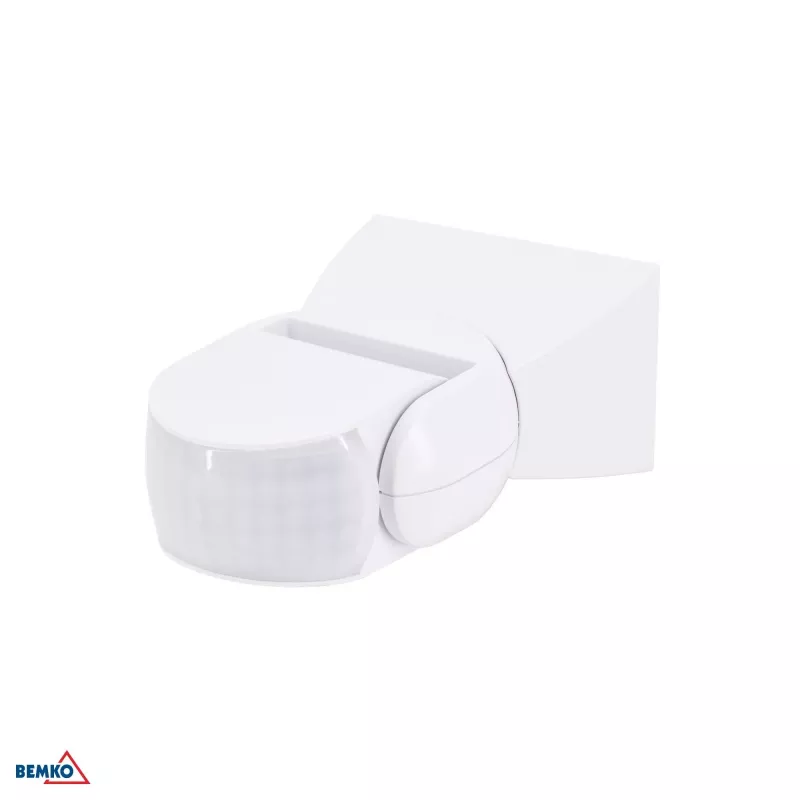

BEMKO detector de movimiento PIR 1200W 180° IP65 blanco

The BEMKO PIR Motion Sensor B50-SES15WH is a high-performance passive infrared sensor designed for reliable motion detection in both indoor and outdoor environments. With a robust 1200W resistive load capacity and a wide 180° detection angle, this sensor is ideal for automating lighting in warehouses, corridors, gardens, and commercial spaces. Its IP65 rating ensures protection against dust and water jets, making it suitable for exposed installations.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. The adjustable time delay (10 seconds to 15 minutes) and light sensitivity (3-2000 LUX) provide flexible customization. UV-resistant polycarbonate construction ensures long-lasting durability even in harsh weather conditions.

Suitable for

• Outdoor lighting control (gardens, pathways, parking lots)
• Indoor corridors, stairwells, and storage areas
• Commercial and industrial facilities requiring reliable motion detection

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Load (Resistive): 1200W
• Max Load (LED/Inductive): 300W
• Ingress Protection: IP65
• Color: White
• Power Supply: 230V AC, 50Hz
• Detection Range: Max 12 meters (<24°C)
• Adjustable Light Sensitivity: 3-2000 LUX
• Adjustable Time Delay: 10 seconds to 15 minutes (±30s)
• Installation Height: 1.8 - 2.5 meters
• Operating Temperature: -20°C to +40°C
• Power Consumption (Standby): <0.5W
• Material: UV-resistant Polycarbonate (PC)
• Mounting Type: Surface Mount (Wall/Ceiling)
• Detection Speed: 0.6-1.5 m/s

Recommendations

For optimal performance, install at the recommended height of 1.8-2.5 meters and avoid placing near heat sources or air conditioning vents. Ensure the sensor is not obstructed by walls or large objects to maintain the full 180° detection angle.
