BEMKO Sensor de movimiento PIR 1200W 180° negro

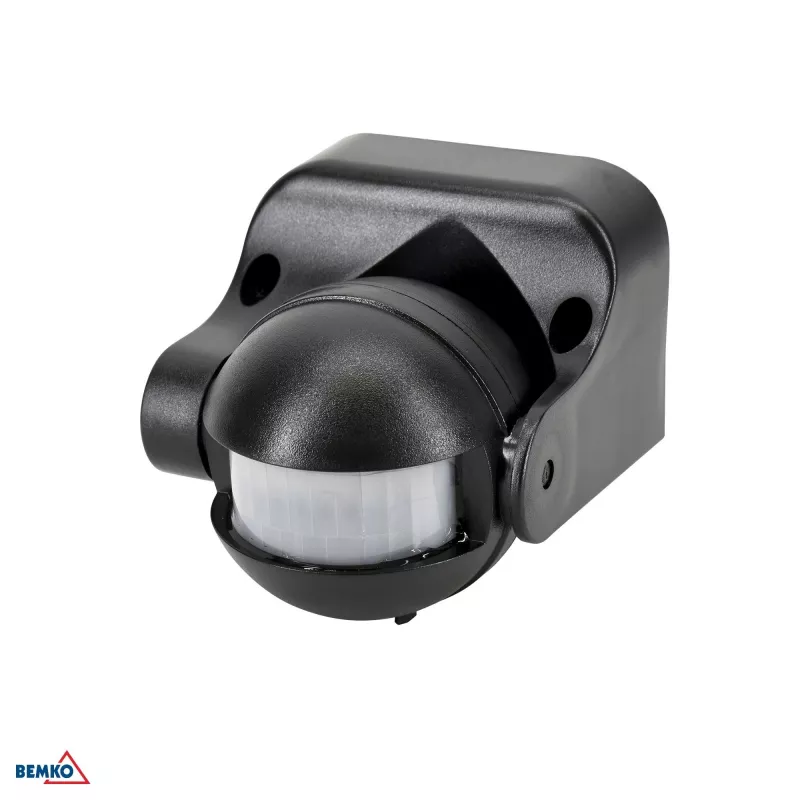

The BEMKO B50-SES09BL is a high-performance PIR motion sensor designed for reliable automatic lighting control in indoor and outdoor environments. With a detection angle of 180° and a maximum load of 1200W for incandescent lamps, this sensor is ideal for corridors, staircases, garages, and warehouses. Its adjustable settings for time delay, ambient light threshold, and detection range provide flexibility to suit various applications.

Advantages

Energy-saving automatic lighting control; easy wall-mount installation; adjustable detection range up to 12 meters; IP44 protection against splashing water; durable ABS plastic housing in black.

Suitable for

• Indoor and outdoor areas requiring automatic lighting
• Corridors, staircases, garages, basements, and warehouses
• Replacing traditional switches for energy efficiency

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Load (Incandescent): 1200W
• Max Load (LED/Fluorescent): 300W
• Operating Voltage: 220-240V AC, 50/60Hz
• Detection Range: 3-12 meters (adjustable)
• Installation Height: 1.8 - 2.5 meters
• Ambient Light Setting: 3-2000 LUX (adjustable)
• Time Delay Setting: 10 seconds - 7 minutes (adjustable)
• IP Rating: IP44
• Colour: Black
• Material: ABS Plastic
• Operating Temperature: -20°C to +40°C
• Standby Power Consumption: <0.5W
• Mounting Type: Wall-mounted
• Humidity: <93% RH
• Switching Type: Relay

Recommendations

For optimal performance, install the sensor at a height of 1.8-2.5 meters and avoid direct exposure to heat sources or air conditioning vents. Adjust the LUX setting to prevent daytime activation and set the time delay according to your needs.
