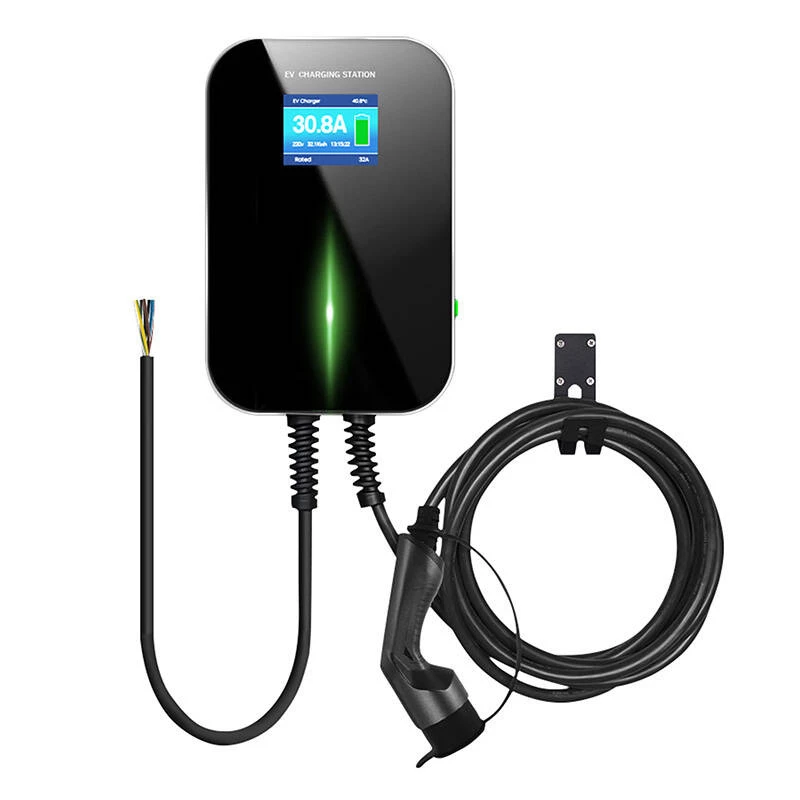

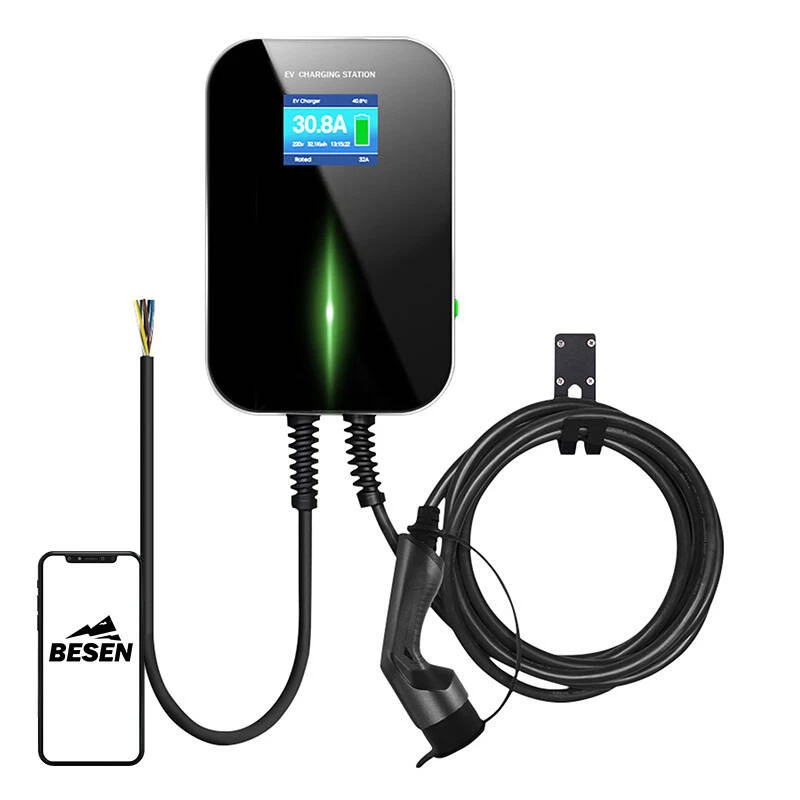

BESEN BS20-BC-22KW-APP Cargador de pared para coches eléctricos 22 kW con control por app

The BESEN BS20-BC-22KW-APP is a high-performance wall charger for electric vehicles, delivering up to 22 kW of charging power. Designed for three-phase installations, it offers fast and efficient charging for compatible EVs. With integrated Wi-Fi and Bluetooth, the charger can be controlled via the Smart Life/Tuya mobile app, allowing you to monitor and manage charging sessions remotely. The unit features an LCD screen for clear status display and supports RFID card authentication and Plug & Play operation for added convenience.

Advantages

This wall charger combines robust construction with smart connectivity, ensuring reliable and user-friendly operation. The IP65 rating makes it suitable for outdoor installation, while the integrated Type A RCD and DC 6mA protection enhance safety. The built-in energy meter helps track consumption, and the charger includes protection against overload, short circuit, and over/under voltage.

Suitable for

• Home garages and private parking spaces
• Commercial and residential EV charging stations
• Users seeking a smart, app-controlled charging solution

Key specifications

• Max Charging Power: 22 kW
• Max Charging Current: 32 A
• Phases: 3-Phase
• Input Voltage: 400V AC
• Frequency: 50/60 Hz
• Output Connector: Type 2 (IEC 62196-2)
• Cable Length: 5 meters
• Connectivity: Wi-Fi, Bluetooth
• Control: Mobile App, RFID Card, Plug & Play
• Display: LCD Screen
• Protection: Integrated Type A RCD + DC 6mA
• IP Rating: IP65
• Operating Temperature: -30°C to +50°C
• Housing Material: ABS + PC
• Mounting: Wall-mounted
• Certifications: CE, TUV
• Energy Metering: Integrated

Recommendations

For optimal performance, ensure your electrical installation supports three-phase power and a 32 A circuit. The charger is compatible with most electric vehicles equipped with a Type 2 inlet. Always consult a qualified electrician for installation.
