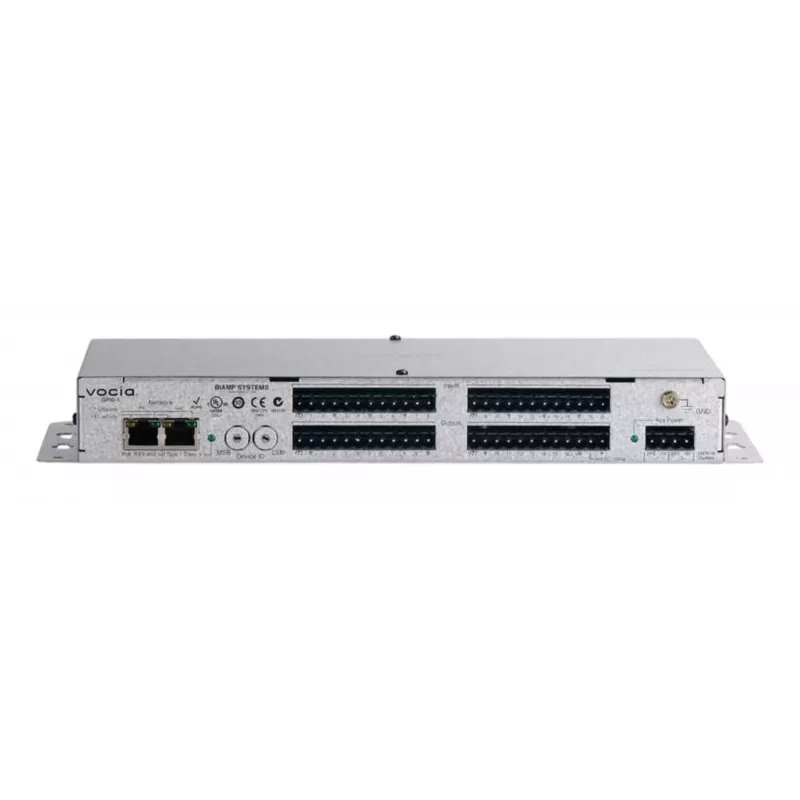

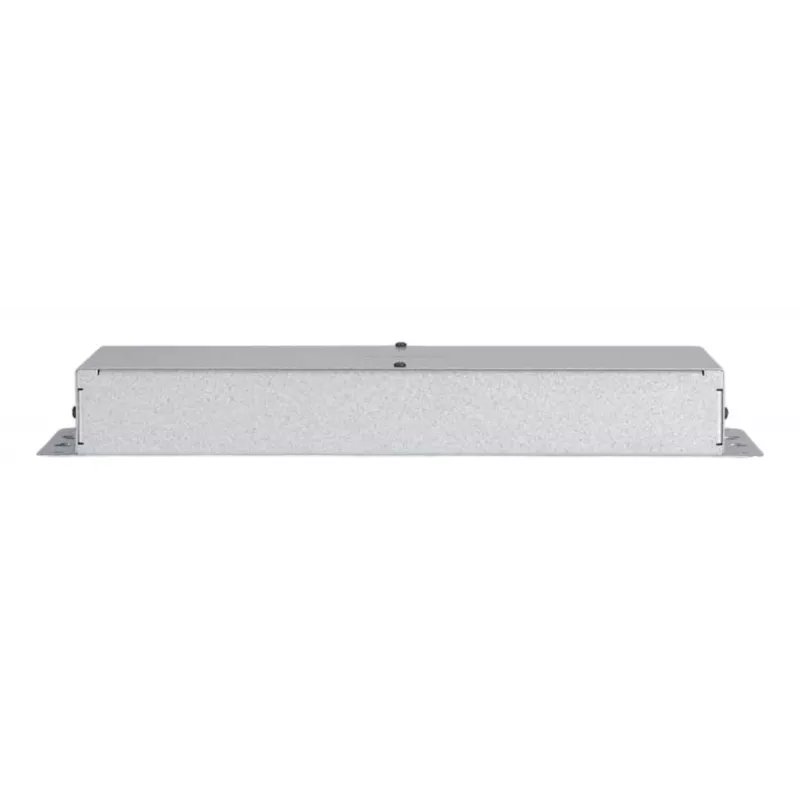

Biamp Vocia GPIO-1 Negro, Plata

The GPIO-1 is a networked device that serves as an extension interface between a Vocia system and emergency or fire alarm systems when used in conjunction with a Vocia® enhanced life safety interface (LSI-16e) or independently for connection to general purpose control systems. The GPIO-1 provides sixteen general purpose inputs and sixteen general purpose outputs to control various aspects of a Vocia system. The GPIO-1 is a monitored device and can be used in life safety applications where more logic inputs or outputs are required. The GPIO-1 has dual powering from PoE Ethernet ports and alternate powering from dual 24V DC inputs. In the event of power loss changeover between power sources will provide uninterrupted operation.

Biamp Vocia GPIO-1. Product colour: Black, Silver. Input voltage: 24 V. Width: 370 mm, Depth: 128 mm, Height: 41 mm. Package width: 355.6 mm, Package depth: 406.4 mm, Package height: 76.2 mm
