Bisel frontal Icy Dock MB324TP-B

The Icy Dock MB324TP-B bezel panel is a compatible front panel designed for use with the ICY DOCK ExpressCage MB324SP-B 4-bay 2.5" SAS/SATA HDD & SSD hot-swap cage. It is intended for 2.5" SATA drives (SATA I/II/III) and provides a compact, finished front appearance while supporting tool-less drive installation in the matching drive caddies. The bezel measures 12.3 mm (width) × 120.7 mm (depth) × 75 mm (height) and is finished in black metal and plastic.

Advantages

The MB324TP-B offers a slim profile suitable for space-constrained installations and a tool-less mounting workflow when used with compatible ICY DOCK trays. Constructed from metal and plastic, the bezel balances durability with light weight (0.032 kg) and maintains a uniform black finish that integrates with standard 5.25" drive bay hardware.

Suitable for

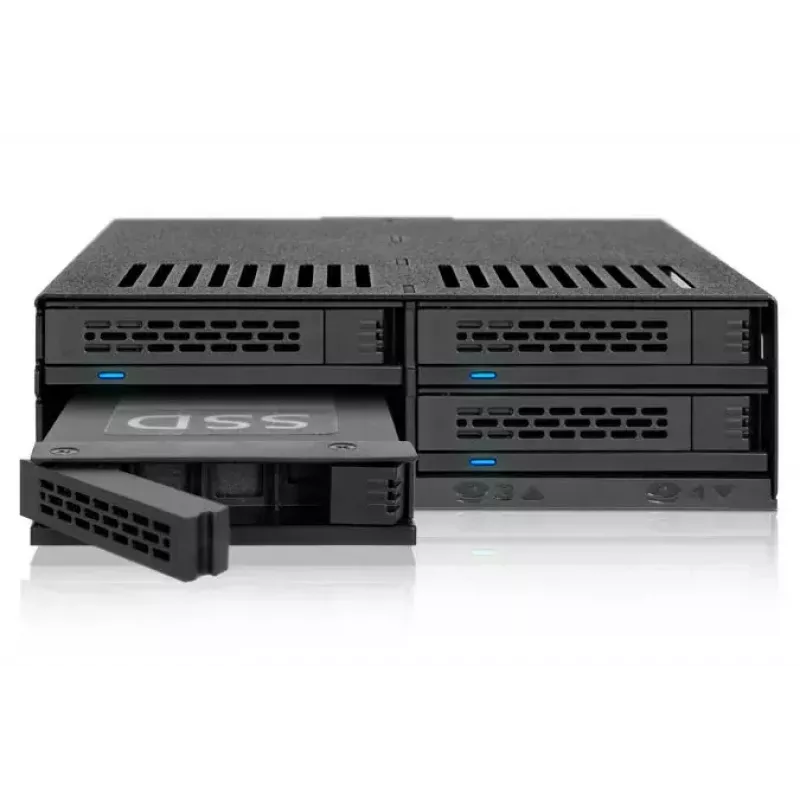

• Front trim for ICY DOCK ExpressCage MB324SP-B 4-bay 2.5" hot-swap cage
• Systems using 2.5" SATA HDDs or SSDs (SATA I/II/III)
• Rackmount or desktop PCs with a 5.25" bay requiring a neat bezel for the drive cage

Key specifications

• Compatible model: MB324SP-B (ExpressCage series)
• Supported drive size/interface: 2.5" SATA (I/II/III)
• Dimensions: 12.3 mm (W) × 120.7 mm (D) × 75 mm (H)
• Material: Metal, Plastic
• Color: Black
• Weight: 0.032 kg
• MPN: MB324TP-B
• EAN: 4711132869705

How to use

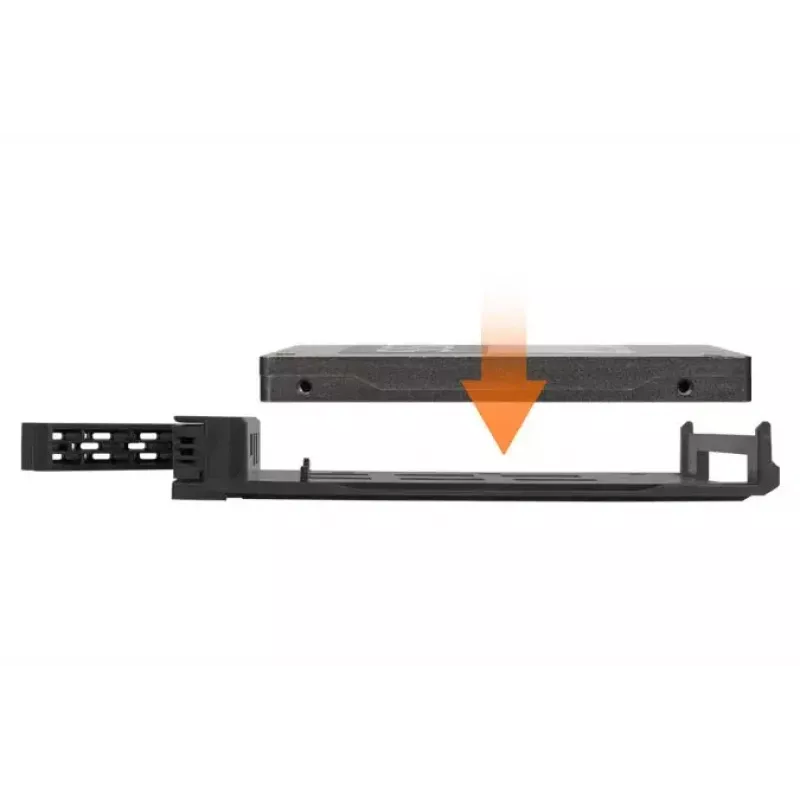

Align the MB324TP-B bezel with the front of the installed MB324SP-B drive cage and press it into place until it clips or seats securely. When paired with the corresponding tool-less 2.5" trays in the ExpressCage MB324SP-B, install drives into the trays according to the cage instructions, then slide the trays into the bay and secure them by the cage's latching mechanism. No special tools are required for attaching the bezel itself.

Recommendations

Use this bezel only with the compatible MB324SP-B ExpressCage and 2.5" SATA drive trays to ensure proper fit and tool-less operation. Handle the bezel carefully to avoid bending the metal trim and maintain proper airflow around the drive cage for adequate cooling.
