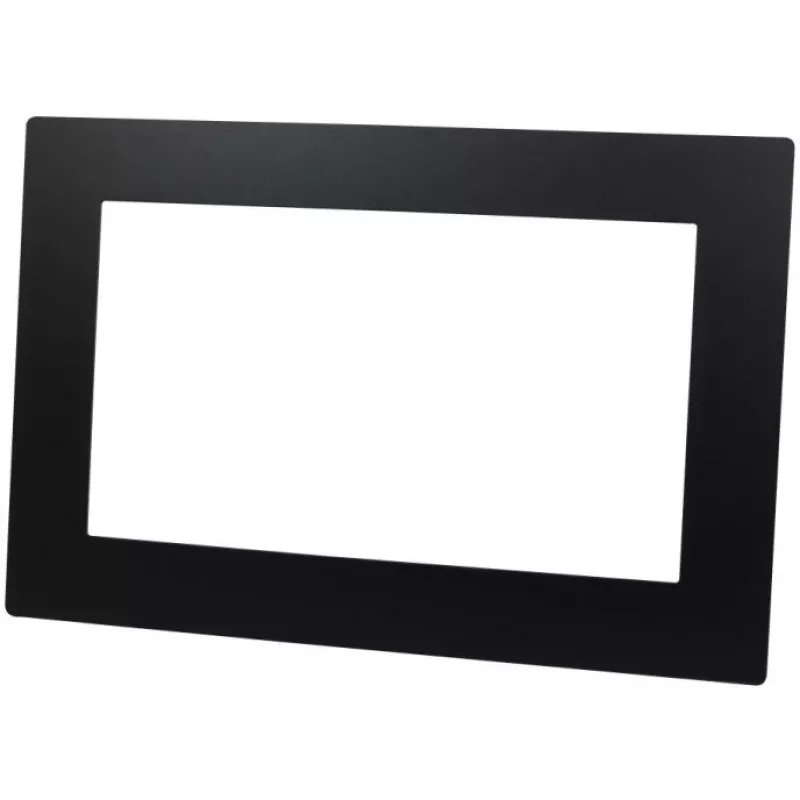

Bisel para tablet ALLNET ALLTCover15WBv1 — marco frontal de repuesto negro, peso 720 g

Replacement bezel for the ALLNET Touch Display 15" (ALLTCover15WBv1) in black. This front frame is designed for built-in installations and serves to restore the tablet’s appearance, secure the display in the installation frame and provide a clean, flush finish. The bezel is a magnetically attached panel that fits the specified installation frame dimensions and is supplied as a single-piece front cover with a flattened profile toward the touchscreen. Origin: China. Weight: 720 g.

Advantages

The bezel mounts magnetically to the installation frame, eliminating visible screws and allowing the tablet and installation frame to sit flush with the panel. Compared with the previous version, this improved panel includes a wall closure and slip-in design, magnets integrated in the bezel, and a lowered edge profile toward the touchscreen to reduce the gap between display and frame. Individual bezels can be purchased separately and are available in standard colours including black, silver and white. The magnetic attachment simplifies removal for maintenance while preserving a uniform built-in appearance.

Suitable for

• Replacement of a damaged or scratched front frame on ALLNET 15" touch tablets
• Wall or drywall installations where a flush, low-profile finish is required
• Repair and maintenance operations that require easy removal and reattachment of the front bezel

Key specifications

• Bezel type: front replacement frame for built-in installations
• Colour: black
• Compatible display size: 38.1 cm (15")

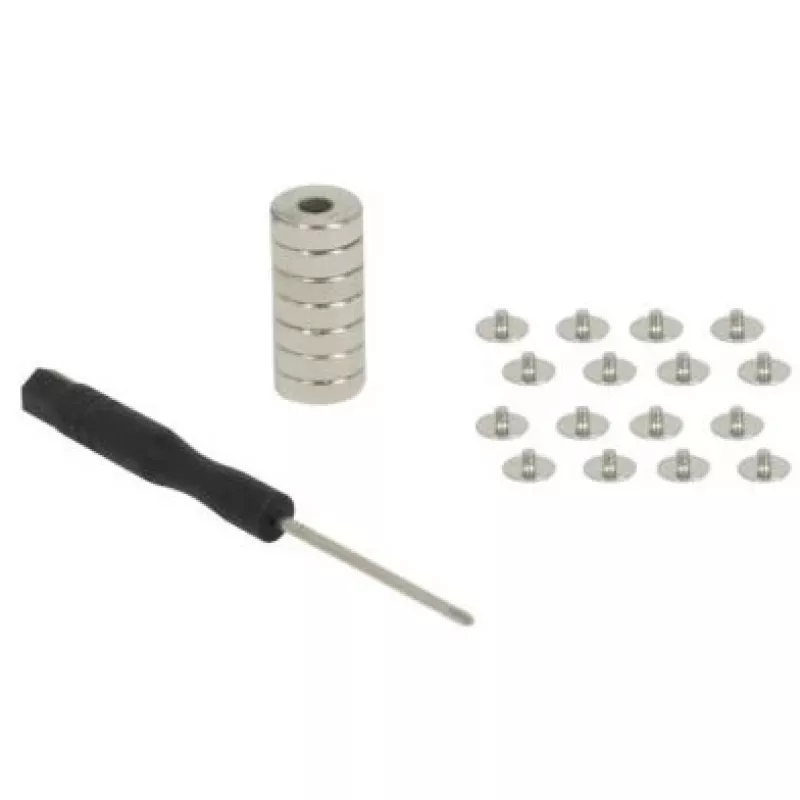

• Mounting method: magnetic attachment to installation frame; requires magnets mounted in panel
• Installation frame outer dimensions: 480 x 257 x 28 mm
• Recommended cut-out dimensions: 482 x 259 mm
• Profile: lowered/flattened toward touchscreen for reduced bezel gap
• Weight: 720 g
• Recommended mounting: tablet fixed to frame via VESA mount then installed in drywall or wooden wall

How to use

Mount the tablet to the installation frame using the VESA mounting points, taking care to align screw holes and secure the device firmly. Fit the installation frame into the prepared wall opening or panel cut-out (cut-out dimensions 482 x 259 mm) and secure the frame according to the wall material—drywall or wooden constructions are recommended. Ensure magnets are installed in the panel so the bezel can attach magnetically. Place the bezel over the frame so the magnetic points engage and the bezel sits flush; confirm that the touchscreen edge aligns with the lowered bezel profile. Be aware that when the tablet is installed into a wall, rear-mounted speakers may be acoustically affected and volume/quality can be reduced.

Recommendations

Install in suitable wall types (drywall or wood preferred) and avoid fully enclosed masonry locations where heat buildup may occur. Ensure magnets are properly positioned in the panel for secure attachment and periodic removal for maintenance. Verify speaker placement and, if audio quality is critical, consider external speakers or alternative mounting to reduce acoustic loss.
