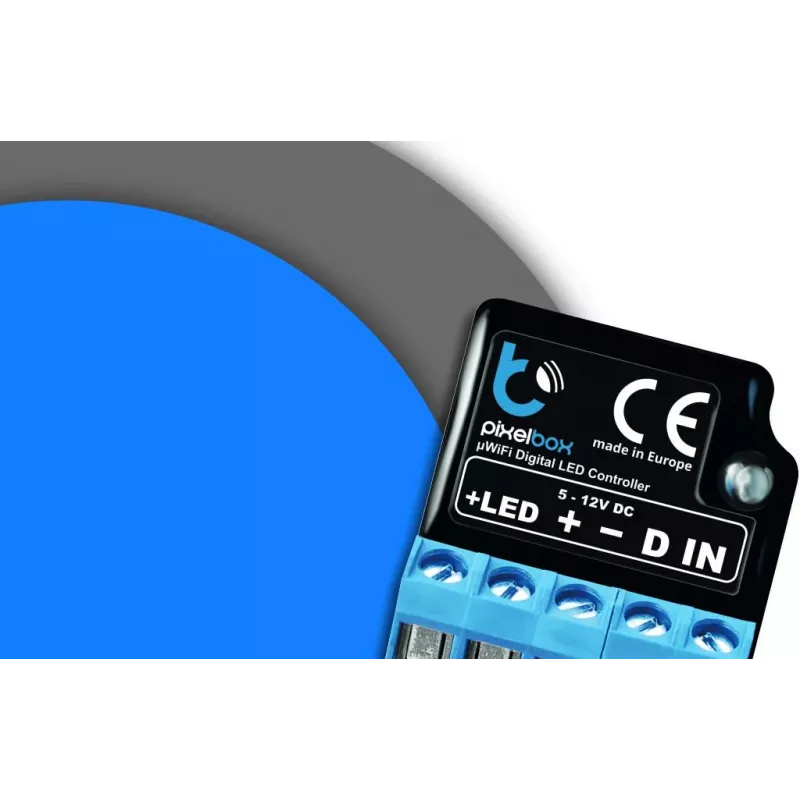

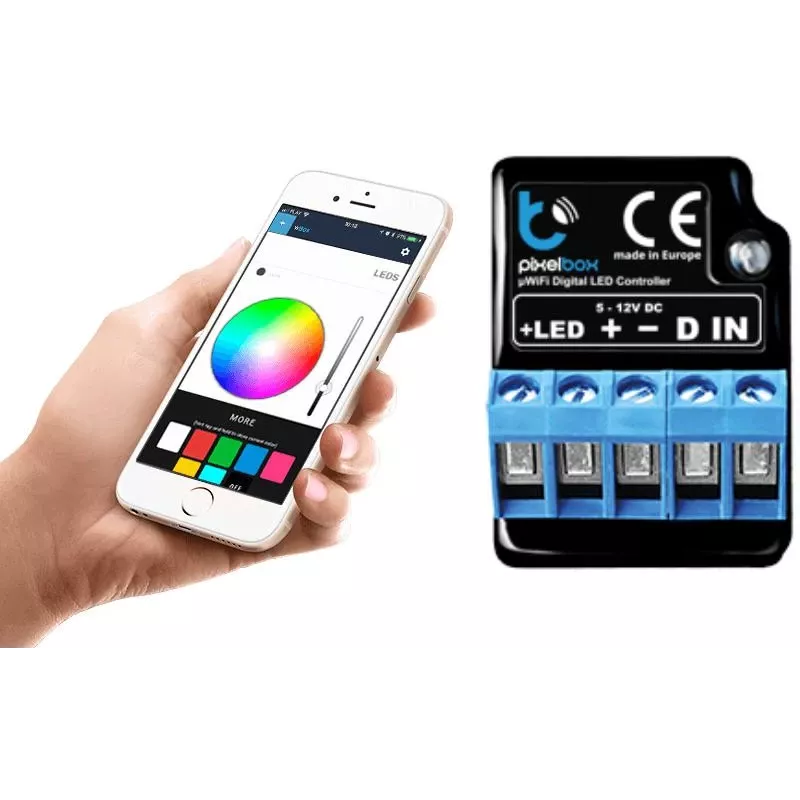

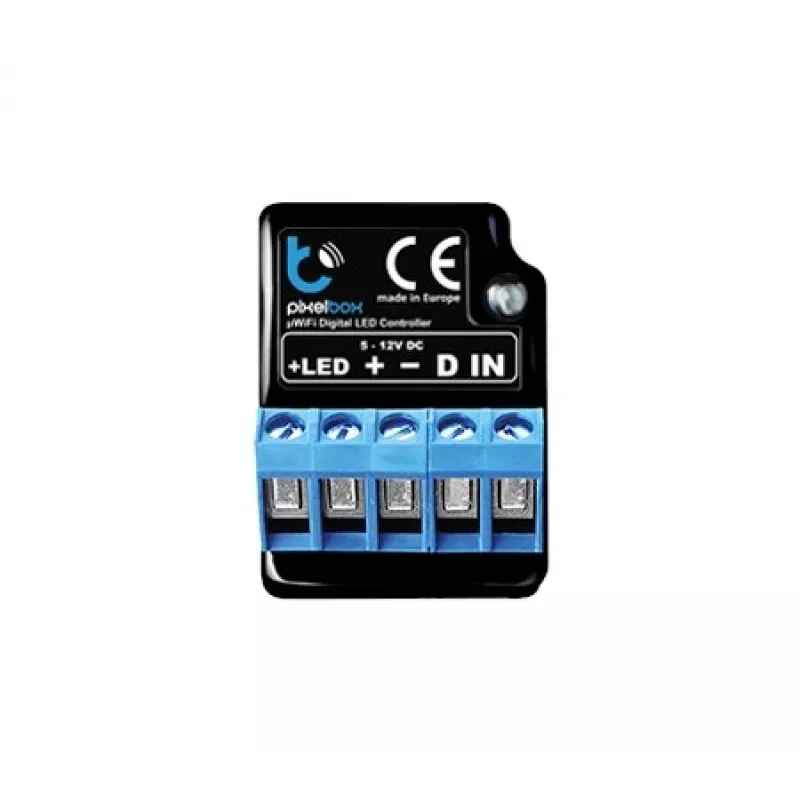

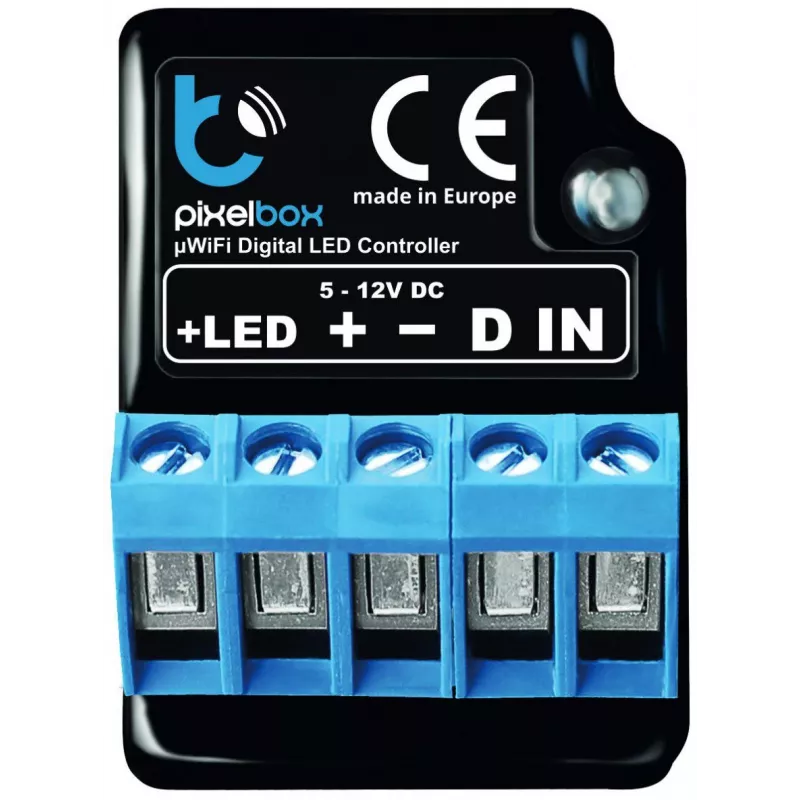

BLEBOX LED Pixelbox Módulo de iluminación

The BLEBOX LED Pixelbox Lighting Module lets you control the number of colours flowing along an LED strip and set the transition speed of selected colours. It can be used to control the mood of rooms and can be operated from anywhere in the world.

Key features

• Decide the number of colours flowing along the LED strip
• Set the transition speed of selected colours
• Control room mood
• Control from anywhere in the world

Specifications

• Brand: Blebox
• MPN: pixelbox
• Power supply voltage: 5-12V DC
• Number of outputs: 1
• Output type: digital, control signal
• Maximum load: 20 mA
• Colour mode: RGB
• Number of inputs: 1
• Input type: low-voltage, logic, push-button, shortable to GND
• Dimensions: 27 x 37 x 23mm
• Housing: made of polyurethane composition containing no halogens, self-extinguishing for thermal class B (130°C)
• Protections: reverse polarity, ESD
• Protection degree: IP20
• Mounting method: in electrical box, lamp housing, directly connected to LED strip, e.g. in furniture
• Transmission: bidirectional, encrypted
• Encryption: WPA2-PSK and authenticated encryption (AEAD)
