BlueLAN Cable de cobre Direct Attach QSFP112 pasivo, 400GBASE Ethernet, InfiniBand, 1,5m (BOQ1Q101X1.5M-BL)

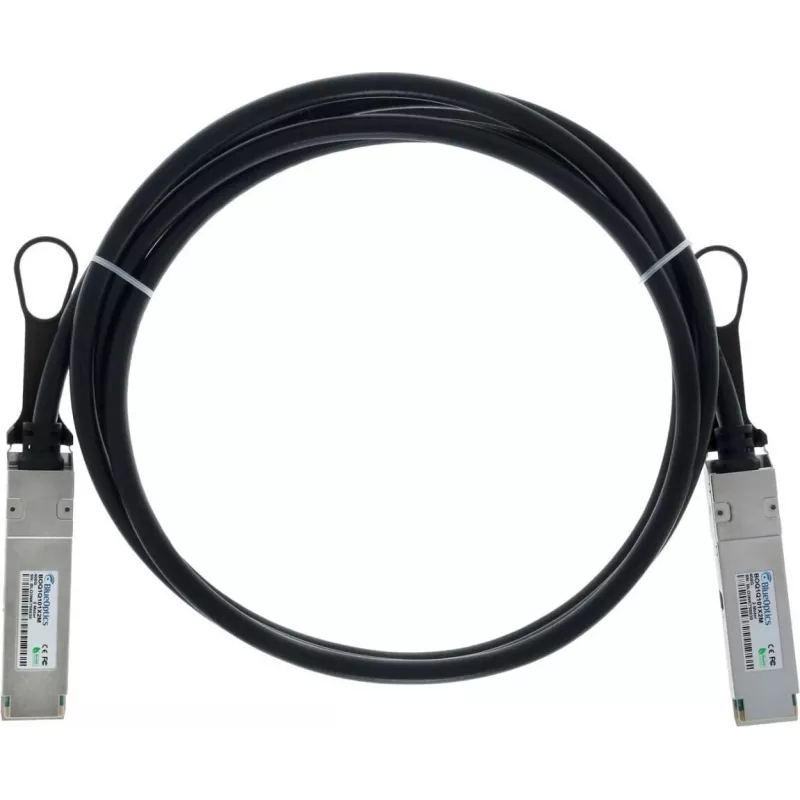

The BlueLAN BOQ1Q101X1.5M-BL is a high-performance passive Direct Attach Copper (DAC) cable designed for 400 Gigabit Ethernet and InfiniBand applications. With a length of 1.5 meters, it provides a reliable, low-latency interconnect for data centers, high-performance computing (HPC), and enterprise networks. This QSFP112 to QSFP112 cable is MSA compliant and hot-pluggable, ensuring seamless integration with compatible switches, routers, and servers.

Advantages

Passive DAC cables offer the lowest power consumption (<0.5W) and cost-effective connectivity for short-range links. The twinax copper construction ensures excellent signal integrity and durability. No external power or optical transceivers required, simplifying deployment and reducing total cost of ownership.

Suitable for

• Data center top-of-rack and end-of-row interconnects
• High-performance computing clusters
• Enterprise network backbone links
• Storage area networks (SAN)

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connectors: QSFP112 to QSFP112
• Data Rate: 400 Gbps
• Ethernet Standard: 400GBASE-CR4
• Protocol Support: Ethernet, InfiniBand
• Cable Length: 1.5 meters
• Cable Material: Copper (Twinax)
• Power Consumption: <0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage Supply: 3.3V
• Hot Pluggable: Yes
• MSA Compliant: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your networking equipment supports QSFP112 ports and 400GBASE-CR4 standard. This cable is ideal for short-distance, high-bandwidth connections within racks or between adjacent racks.
