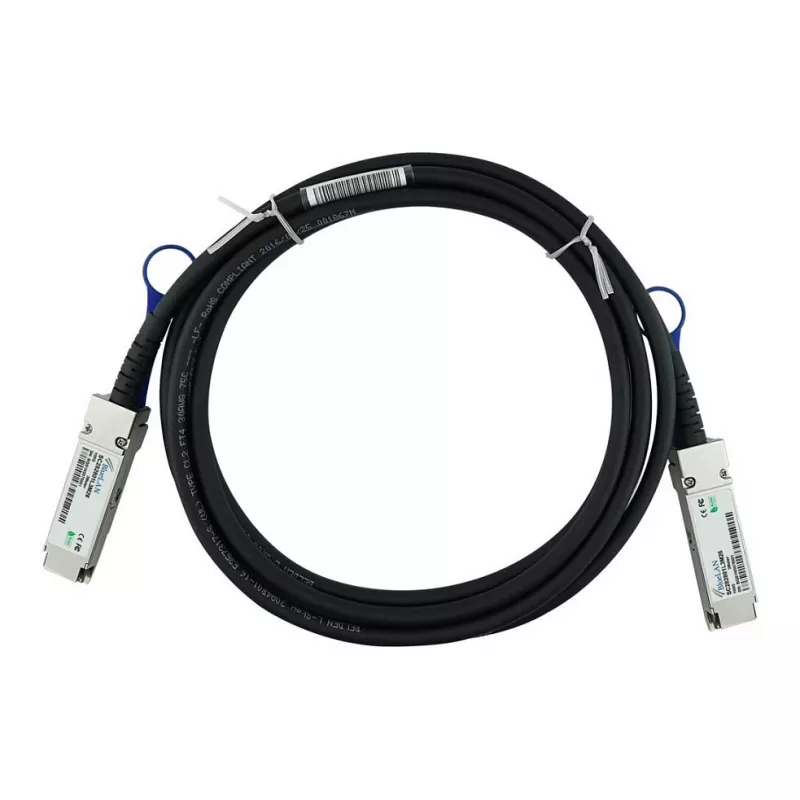

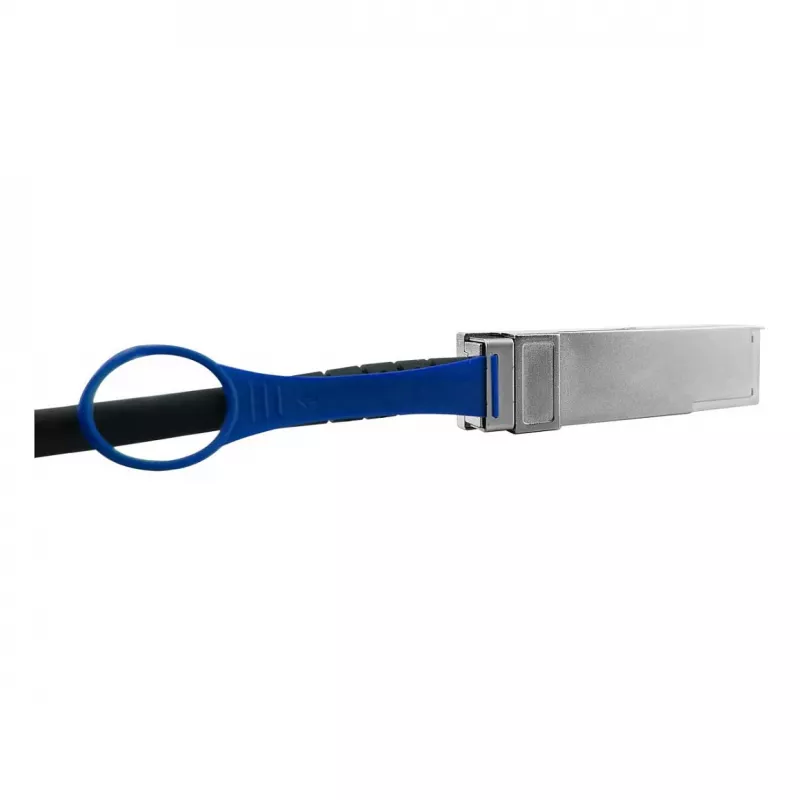

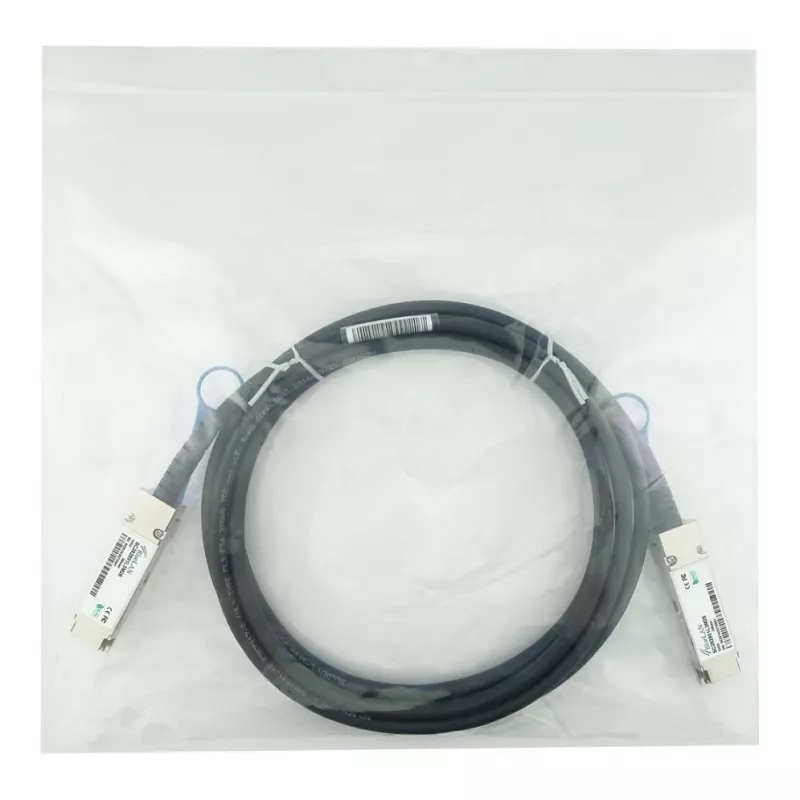

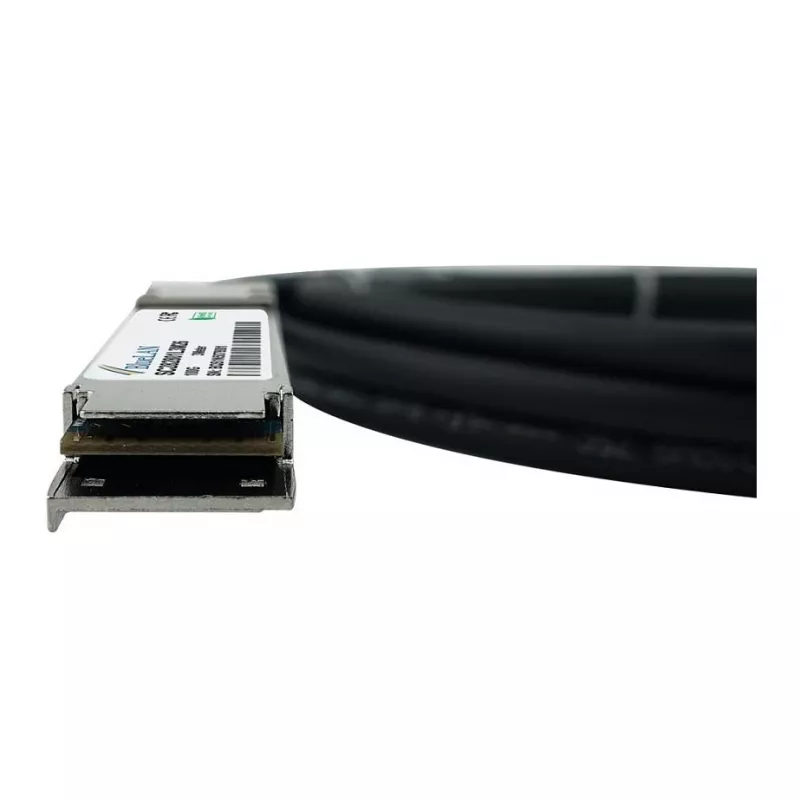

BlueLAN 10411-BL compatible Extreme Networks cable direct attach QSFP28, 100GBASE-CR4, InfiniBand EDR, 30AWG, 1 metro

This BlueLAN 10411-BL is a high-performance QSFP28 direct attach copper cable designed for compatibility with Extreme Networks 10411 series switches and other MSA-compliant QSFP28 ports. It delivers 100 Gbps data rate over a 1-meter passive twinax cable, supporting 100GBASE-CR4 Ethernet and InfiniBand EDR standards. Ideal for data center interconnects and high-performance computing environments.

Advantages

Cost-effective alternative to optical transceivers with low power consumption (<0.5W per end). Hot-swappable design ensures minimal downtime during maintenance. Compliant with MSA standards for broad interoperability.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network upgrades to 100G

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Support: EDR
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper
• Cable Type: Passive Twinax
• Compatibility: Extreme Networks 10411 and MSA compliant QSFP28 ports
• Hot-Swappable: Yes
• Power Consumption: <0.5W per end
• Compliance: MSA Compliant
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Voltage: 3.3V

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 100GBASE-CR4 and InfiniBand EDR. This cable is a direct replacement for Extreme Networks 10411 original part.
