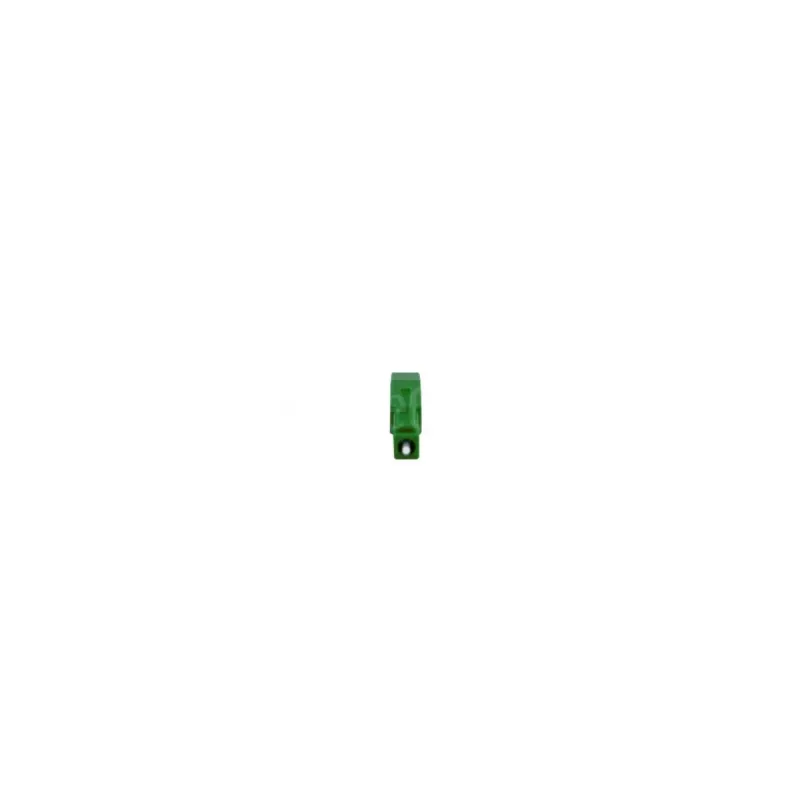

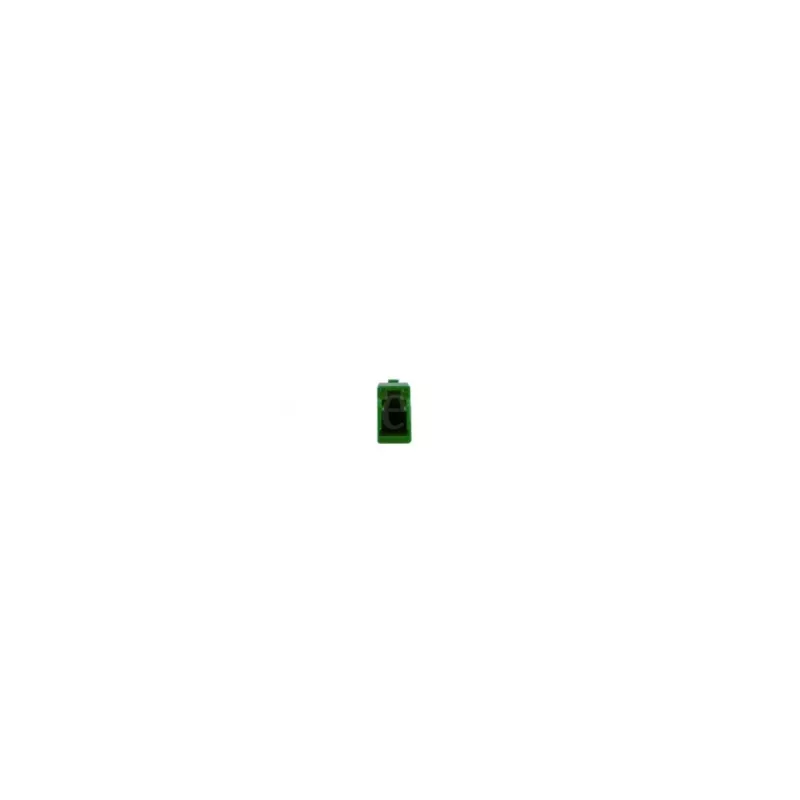

BlueOptics Atenuador de Fibra Óptica Monomodo LC/APC Simplex 1 dB

The BlueOptics SFA21BM1 is a high-quality singlemode fiber optic attenuator designed to reduce optical power in fiber optic networks. With a precise attenuation of 1 dB and LC/APC connectors, this simplex attenuator ensures reliable signal management in telecommunications, data centers, and FTTx applications. Manufactured with a zirconia ceramic ferrule and metal housing, it offers durability and consistent performance over more than 1000 mating cycles.

Advantages

This attenuator provides accurate and stable attenuation with a tolerance of ±0.5 dB, ensuring optimal signal levels. The angled physical contact (APC) polish minimizes back reflection, with a return loss of ≥60 dB, making it ideal for high-performance networks. Its wide operating temperature range (-40°C to +85°C) guarantees reliability in various environments.

Suitable for

• Telecommunications networks
• FTTx (Fiber to the x) systems
• Data centers
• Local Area Networks (LAN)
• Cable TV (CATV) networks

Key specifications

• Product Type: Fiber Optic Attenuator
• Fiber Mode: Singlemode (SM)
• Connector Type: LC/APC
• Attenuation: 1 dB (±0.5 dB)
• Fiber Count: Simplex (1 fiber)
• Wavelength Range: 1260 nm - 1650 nm
• Return Loss: ≥60 dB
• Insertion Loss: <0.2 dB
• Polarization Dependent Loss: <0.2 dB
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Durability: >1000 mating cycles
• Housing Material: Zirconia ceramic ferrule, metal housing
• Connector Gender: Male to Female
• Color Code: Green (for LC/APC)
• Compliance: RoHS, REACH
• Standard Compliance: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, use this attenuator in singlemode fiber optic systems requiring precise 1 dB attenuation. Ensure connectors are clean before mating to maintain low insertion loss and high return loss.
