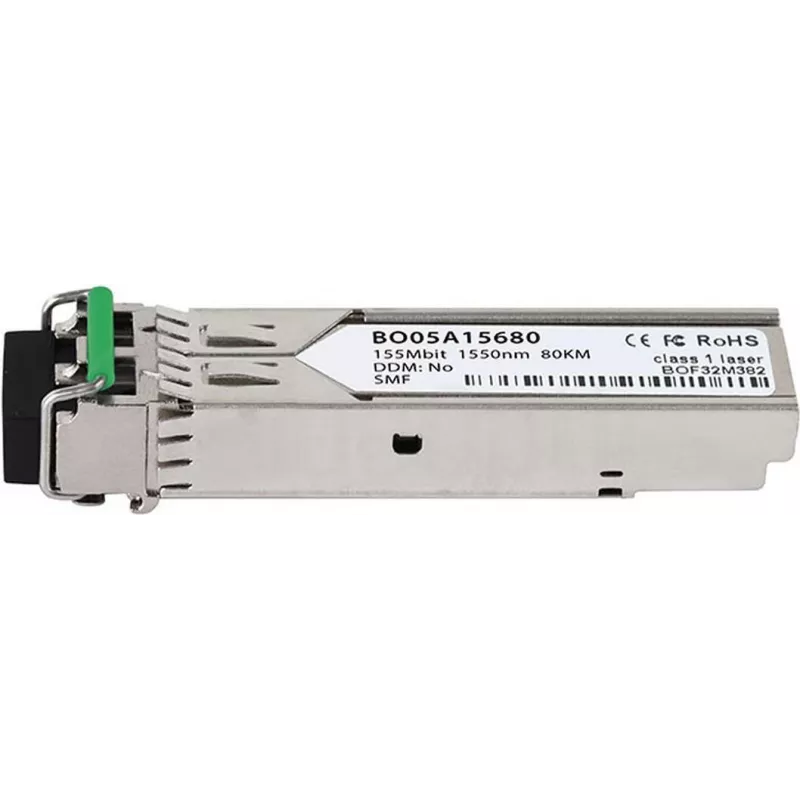

BlueOptics BO05A15680D-BO Transceptor SFP 100BASE-ZX 80km

The BlueOptics BO05A15680D-BO is a high-performance SFP transceiver module designed for long-distance fiber optic communication. It supports 100BASE-ZX standards, enabling data transmission up to 80 km over single-mode fiber. This module is ideal for Fast Ethernet and SONET/SDH applications, offering reliable connectivity for enterprise and service provider networks.

Advantages

Extended reach of up to 80 km, hot-pluggable design for easy installation, and full compliance with MSA standards ensure interoperability with a wide range of networking equipment. Digital Diagnostic Monitoring (DDM) provides real-time performance monitoring.

Suitable for

• Fast Ethernet (100BASE-ZX) networks requiring long-distance links
• SONET OC-3 / SDH STM-1 applications
• Metropolitan area networks (MANs) and campus backbones
• Service provider and enterprise fiber optic deployments

Key specifications

• Module Type: SFP
• Data Rate: 155 Mbps
• Wavelength: 1310 nm
• Max Transmission Distance: 80 km
• Fiber Type: Single-mode fiber (SMF)
• Connector Type: LC Duplex
• Digital Diagnostic Monitoring (DDM): Yes
• Compatibility: MSA Compliant
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Duplex Mode: Full-duplex
• Transmitter Type: FP Laser
• Receiver Type: PIN Diode
• Power Supply: 3.3V
• Standards Compliance: IEEE 802.3z, SFF-8472, SFF-8074i
• Safety & Regulatory: RoHS Compliant, CE, FCC

Recommendations

For optimal performance, pair this transceiver with compatible single-mode fiber patch cables and ensure proper cleaning of LC connectors. Verify switch compatibility before installation.
