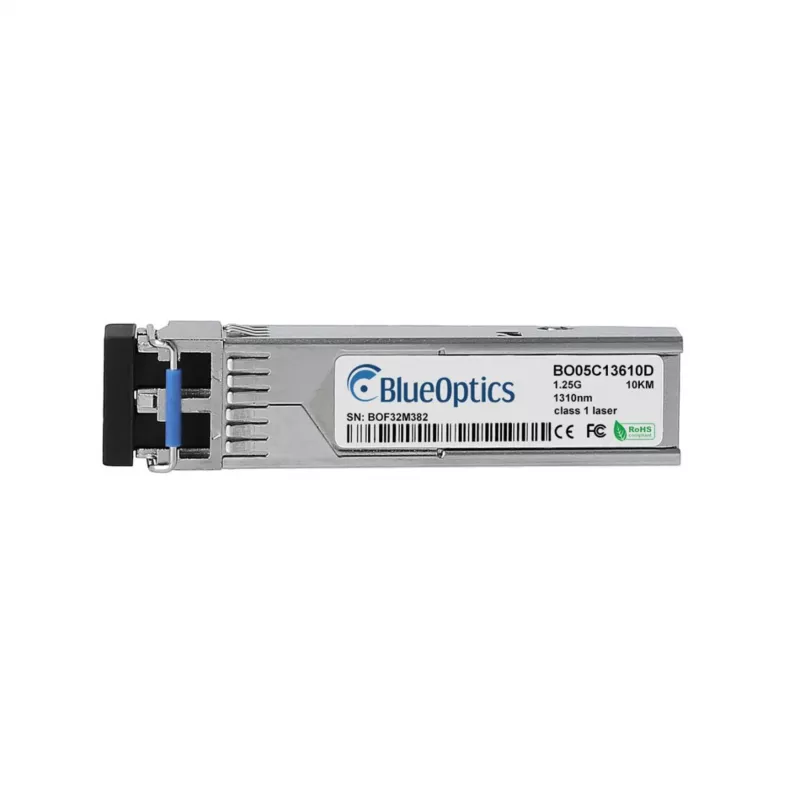

BlueOptics BO05C13610D Transceptor SFP compatible con Synology SFP-1G-LX, LC Dúplex, 1000BASE-LX, Monomodo, 10 km

The BlueOptics BO05C13610D is a high-performance SFP transceiver designed for seamless compatibility with Synology SFP-1G-LX networking equipment. This 1000BASE-LX module operates over single-mode fiber at a wavelength of 1310 nm, delivering reliable Gigabit Ethernet connectivity up to 10 km. With LC duplex connector and full DDM/DOM support, it is ideal for enterprise networks, data centers, and long-distance links.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Fully MSA compliant and hot-swappable for easy installation. Low power consumption under 1 Watt ensures energy efficiency. Backed by rigorous testing for compatibility and reliability.

Suitable for

• Gigabit Ethernet connections in enterprise LANs
• Fiber optic links in data centers
• Long-distance single-mode fiber applications up to 10 km
• Synology SFP-1G-LX compatible devices

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-LX
• Wavelength: 1310 nm
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1 Watt
• Hot-Swappable: Yes
• Laser Type: FP Laser
• Transmit Power: -9.5 dBm to -3 dBm
• Receiver Sensitivity: -20 dBm
• Supply Voltage: 3.3 V
• Compliance: RoHS, CE, FCC, TUV, UL

Recommendations

For optimal performance, use with single-mode fiber patch cables (OS1/OS2) and ensure clean connections. This transceiver is a direct replacement for Synology SFP-1G-LX modules.
